TF SF300 mechanical seal flow meter accurately control the flow rate of the seal or packing flush fluid. It will be able to both control the flow rate and pressure of the flush fluid.


Flow Rate:
-Flow rate range to be 2 – 50 GPH (0,1 - 3 Liters/min)

Temperature / Pressure Limits
-Maximum Temperature:212 °F (100 °C)
-Maximum Pressure:160 PSIG (11 bar g)

Optional Low Flow Sensor
Two adjustable low flow alarm sensors are available as options. One sensor (Item # TFS330206) operates on 20-250 AC/DC volts with a switching frequency of 25 Hz AC / 100 Hz DC and the second (Item # TFS330207) sensor option operates on 10 – 55 DC volts with a switching frequency of 100 Hz.


Material of Flow meter

Flowmeter Tubes:

POLYSULFONE (PSU)

Body of Unit:

POLYOXYMETHYLENE (POM)

O-rings:

FLUOROCARBON (FKM)

Pressure Gauge:

Oil filled   with 316SS Stainless Steel Case

and Wetted   Parts, 1/4" – NPT Bronze fitting

Pressure Regulating Valve:

316SS

Flow Rate Regulating Valve:

316SS

Clean-out Plugs:

304SS

3/8" Tube Fittings (for   compression connections)

or optional Barb Fittings:

316SS

Mounting Bracket:

316SS

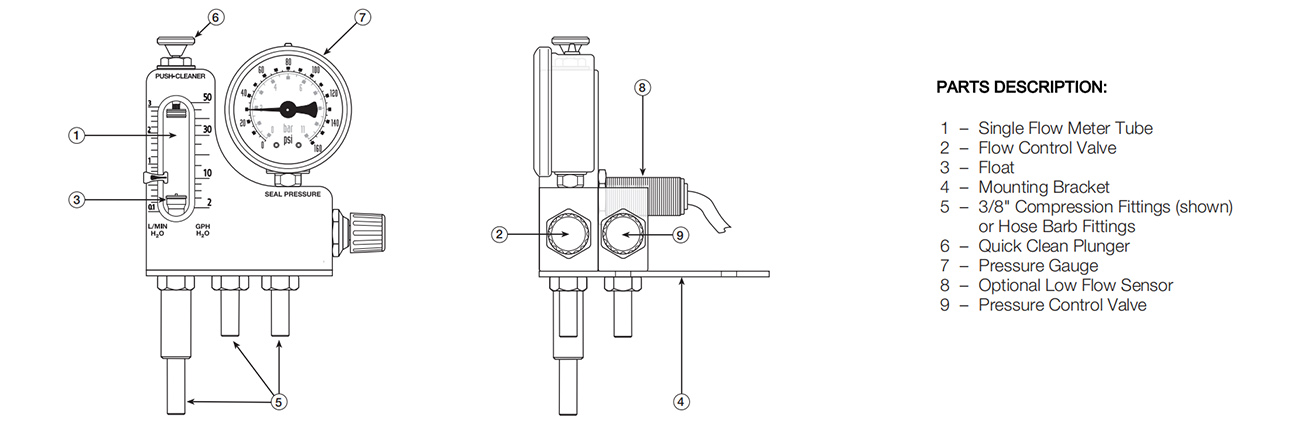

  • PARTS DESCRIPTIONS

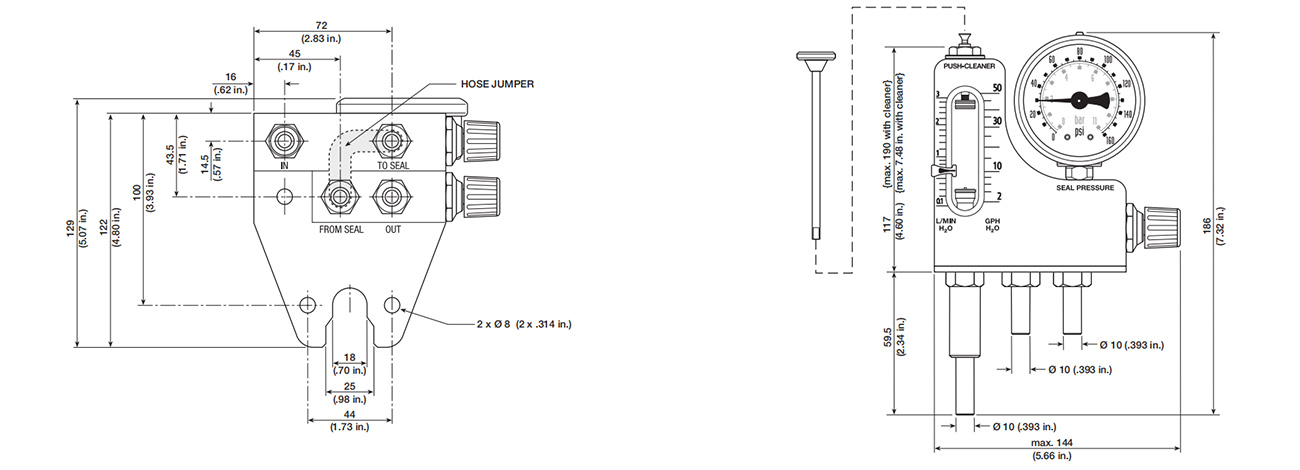

  • FLOW METER DIMENSION

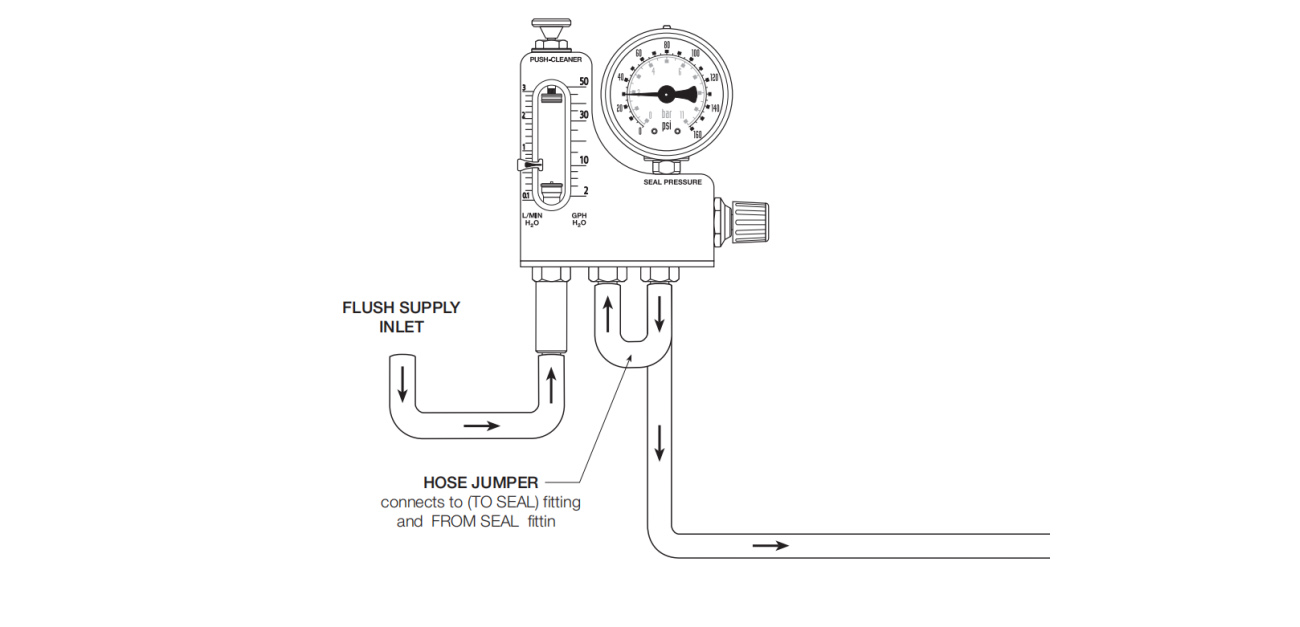

  • FLOW METER CONNECTION TO SEAL
