The PB01 is a compact and versatile single spring elastomer bellows mechanical seal, designed to meet industry standards such as DIN 24960, ISO 3069, and ANSI B73.1, making it ideal for rotary equipment. Its construction ensures a perfect fit within these specifications, while its versatility allows it to be used in a variety of water-based applications, including clean water, wastewater treatment, pulp and paper, food processing, marine, and moderately corrosive environments.

Features
Specifications
Installation View

Features

Design Features:
    •    Unitized, Easy-to-Fit Design: Ensures simple and quick installation.
    •    Pressure-Supported Bellows: The bellows design eliminates creases or folds, enhancing durability.
    •    Positive Key Drive: Drive bands provide protection from torsional strain, ensuring the longevity of the bellows.

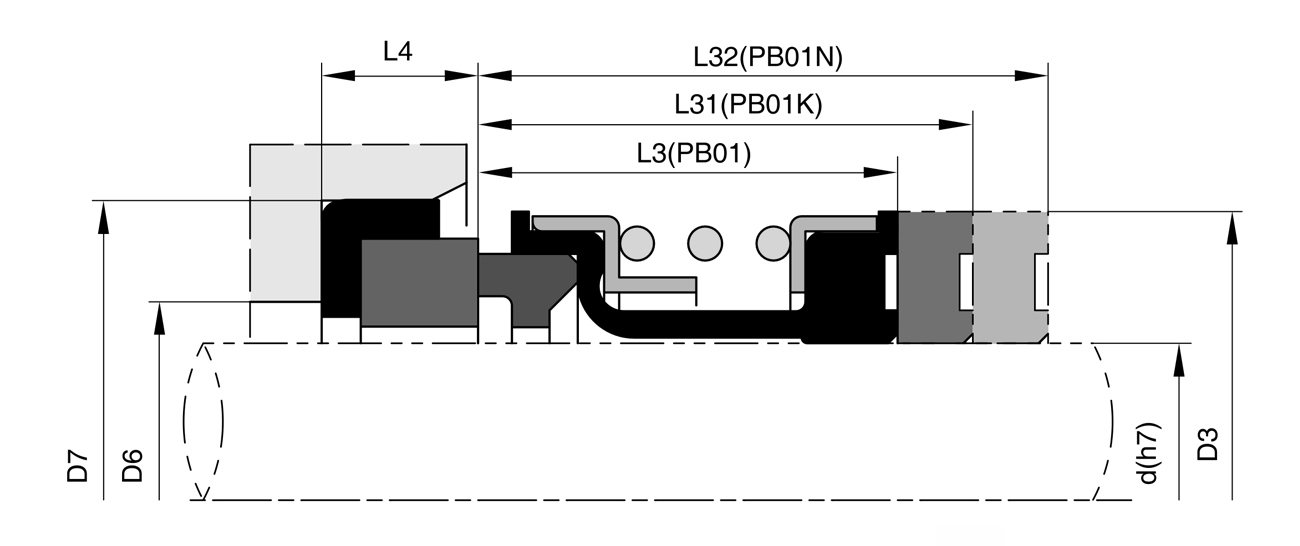

Installation View


Size (mm)	d	D3	D6	D7	L3	L31	L32	L4	Size (inch)	d	D3	L3
10.00	10.00	20.00	15.00	21.00	15.00	27.50	35.00	5.00	0.375	0.375	0.787	0.591
12.00	12.00	22.00	17.00	23.00	15.00	26.50	34.00	6.00	0.500	0.500	0.945	0.591
14.00	14.00	24.00	19.00	25.00	15.00	29.00	34.00	6.00	0.625	0.625	1.024	0.591
15.00	15.00	25.00	20.00	26.00	15.00	29.00	34.00	6.00
16.00	16.00	26.00	23.00	27.00	15.00	29.00	34.00	6.00	0.750	0.750	1.260	0.787
18.00	18.00	32.00	25.00	33.00	20.00	31.50	39.00	6.00	0.875	0.875	1.417	0.787
20.00	20.00	34.00	27.00	35.00	20.00	31.50	39.00	6.00	1.000	1.000	1.496	0.787
22.00	22.00	36.00	29.00	37.00	20.00	31.50	39.00	6.00	1.125	1.125	1.665	1.024
24.00	24.00	38.00	31.00	39.00	20.00	34.00	44.00	6.00	1.250	1.250	1.811	1.024
25.00	25.00	39.00	32.00	40.00	20.00	34.00	44.00	6.00	1.375	1.375	1.929	1.024
28.00	28.00	42.00	35.00	43.00	26.00	36.50	44.00	6.00	1.500	1.500	2.126	1.181
30.00	30.00	44.00	37.00	45.00	26.00	35.50	43.00	7.00
32.00	32.00	46.00	40.00	48.00	26.00	35.50	48.00	7.00	1.625	1.625	2.205	1.181
33.00	33.00	47.00	40.00	48.00	26.00	35.50	48.00	7.00	1.750	1.750	2.402	1.181
35.00	35.00	49.00	42.00	50.00	26.00	34.50	47.00	8.00	1.875	1.875	2.520	1.181
38.00	38.00	54.00	47.00	56.00	30.00	37.00	47.00	8.00	2.000	2.000	2.598	1.181
40.00	40.00	56.00	49.00	58.00	30.00	37.00	47.00	8.00	2.125	2.125	2.717	1.181
43.00	43.00	59.00	52.00	61.00	30.00	37.00	52.00	8.00
45.00	45.00	61.00	54.00	63.00	30.00	37.00	52.00	8.00	2.250	2.250	3.031	1.299
48.00	48.00	64.00	57.00	66.00	30.00	35.00	50.00	10.00	2.375	2.375	3.150	1.299
50.00	50.00	66.00	60.00	70.00	30.00	37.50	50.00	10.00	2.500	2.500	3.268	1.299
53.00	53.00	69.00	63.00	73.00	30.00	37.50	60.00	10.00	2.625	2.625	3.465	1.299
55.00	55.00	71.00	65.00	75.00	30.00	37.50	60.00	10.00	2.750	2.750	3.504	1.299
58.00	58.00	78.00	68.00	78.00	33.00	42.50	60.00	10.00	2.875	2.875	3.780	1.299
60.00	60.00	80.00	70.00	80.00	33.00	40.50	58.00	12.00
63.00	63.00	83.00	73.00	83.00	33.00	40.50	58.00	12.00	3.000	3.000	3.898	1.575
65.00	65.00	85.00	75.00	85.00	33.00	40.50	68.00	12.00	3.125	3.125	4.055	1.575
68.00	68.00	88.00	79.00	90.00	33.00	40.50	68.00	12.00	3.250	3.250	4.094	1.575
70.00	70.00	90.00	81.00	92.00	33.00	48.00	68.00	12.00	3.375	3.375	4.252	1.575
75.00	75.00	99.00	86.00	97.00	40.00	48.00	68.00	12.00	3.500	3.500	4.409	1.575
80.00	80.00	1041.00	92.00	105.00	40.00	47.50	77.50	12.50	3.625	3.625	4.488	1.575
85.00	85.00	109.00	97.00	110.00	40.00	47.50	77.50	12.50
90.00	90.00	114.00	102.00	115.00	40.00	52.50	77.50	12.50	3.750	3.750	4.646	1.575
95.00	95.00	119.00	117.00	120.00	40.00	52.50	77.50	12.50	3.875	3.875	4.803	1.575
100.00	90.00	124.00	122.00	125.00	40.00	52.50	77.50	12.50	4.000	4.000	4.882	1.575
