Does TF Seals make direct replacements for John Crane mechanical seals?

Yes. TF Seals manufactures dimensionally interchangeable equivalents for John Crane component and cartridge seals, including the 2100, Type 1, Type 2, Type 21, 502, 521 and 5610/5611 series. Replacements fit the same seal chamber envelope with no equipment modification, and face and elastomer materials can be matched or upgraded. Use our cross-reference chart to find the TF Seals equivalent for your part number.

What is the TF Seals equivalent for a Chesterton or Garlock compression packing?

TF Seals publishes a compression packing cross reference covering Chesterton, Garlock, SEPCO, American Braiding, American Packing, Chemstar, Crane, Industrial Packing, JM, Palmetto, Green Tweed, Phelps, RM, Slade, Teadit and Utex. Locate your current part number in the chart and read across to the TF Seals column for the direct equivalent.

Can TF Seals repair mechanical seals made by other manufacturers?

Yes. Our Houston-area repair facility refurbishes virtually any mechanical seal on the market regardless of original manufacturer, typically restoring performance at up to 50% of replacement cost with fast turnaround to minimise downtime.

Are TF Seals products built to API 682 and ANSI standards?

Yes. TF Seals designs and manufactures cartridge seals to API 682, ANSI B73.1, ISO and DIN equipment standards, and offers Plan 52/53A barrier fluid systems compliant with API 682 / ISO 21049. NSF/ANSI/CAN 61 certified lines are available for potable water service.

Where is TF Seals located and what areas do you serve?

TF Seals Manufacturing & Supplies, LLC operates from 21247 FM 529, Cypress Texas 77433, in the Houston metro area, serving customers across the United States. Contact sales at 1.713.568.5547 or sales@TFSealsUSA.com.

How do I select the right mechanical seal for my pump?

Selection depends on shaft or sleeve diameter, seal chamber bore and depth, operating pressure and temperature, shaft speed, and the fluid being sealed including pH, solids content and specific gravity. Submit these details on the TF Seals Mechanical Seal Application Data Form and our engineers will recommend a suitable seal and material set.

Product Lines

Mechanical seals, built to standard — or built to spec.

Component, cartridge, metal bellow, mixer/vessel, split, slurry, and OEM replacement seals — plus advanced seal face coatings, seal support systems, and packing & gaskets — all designed and manufactured to API/ANSI/ISO/DIN pump standards. Full catalog below.

Our Product Catalog

10 categories · 56 listed products · photos, features & specs where published

Component Seals

11 models · O-Ring / Elastomer Bellow / PTFE Wedge

O-Ring Type

PC05 / PC15

Built for durability and versatility, with a wide range of elastomers suitable for handling various industrial fluids. Unitized construction secured by a snap ring ensures reliable component integrity. Shaft-mounted or cartridge-assembled for pumps, mixers, and agitators.

Design Features

O-ring design for reliable sealing
Positive mechanical drive prevents slippage
Multiple springs ensure precise face loading
Full (PC05) or narrow (PC15) cross-section

Applications

Chemical & petrochemical processing
Food & beverage production
Pharmaceuticals, pipelines, power generation
Pulp & paper

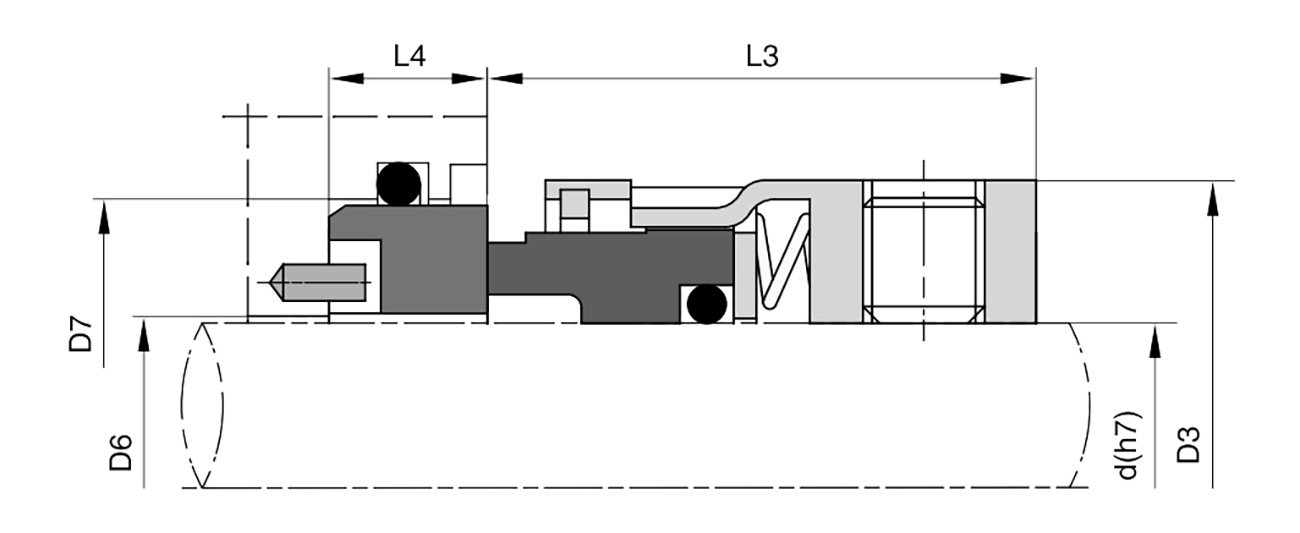

PC05 installation view cross-section — PC05 cross-section

PC05 Dimensions (in)

Size(in)	d	D3	D6	D7	L3	L4
0.500	0.500	1.031	0.551	1.008	0.812	0.312
0.625	0.625	1.187	0.689	1.258	0.750	0.406
0.750	0.750	1.312	0.827	1.383	0.875	0.406
0.875	0.875	1.437	0.945	1.508	0.937	0.406
1.000	1.000	1.562	1.083	1.633	1.000	0.437
1.125	1.125	1.687	1.201	1.758	1.062	0.437
1.250	1.250	1.875	1.319	1.883	1.125	0.437
1.375	1.375	2.000	1.457	2.008	1.375	0.437
1.500	1.500	2.125	1.575	2.133	1.375	0.437
1.625	1.625	2.375	1.713	2.383	1.375	0.500
1.750	1.750	2.500	1.831	2.508	1.375	0.500
1.875	1.875	2.625	1.949	2.633	1.687	0.500
2.000	2.000	2.750	2.087	2.758	1.687	0.500
2.125	2.125	3.000	2.205	3.008	1.687	0.562
2.250	2.250	3.125	2.323	3.133	1.687	0.562
2.375	2.375	3.250	2.461	3.258	1.687	0.562
2.500	2.500	3.375	2.579	3.383	1.687	0.562
2.625	2.625	3.500	2.697	3.383	1.687	0.613
2.750	2.750	3.625	2.835	3.508	1.687	0.613
2.875	2.875	3.750	2.953	3.758	1.687	0.613
3.000	3.000	3.812	3.091	3.883	1.687	0.613
3.125	3.125	3.937	3.209	4.008	1.687	0.781
3.250	3.250	4.125	3.327	4.133	1.687	0.781
3.375	3.375	4.250	3.465	4.258	1.687	0.781
3.500	3.500	4.375	3.583	4.383	1.687	0.781
3.625	3.625	4.500	3.701	4.508	1.687	0.781
3.750	3.750	4.625	3.839	4.633	1.687	0.781
3.875	3.875	4.750	3.957	4.758	1.687	0.781
4.000	4.000	4.875	4.075	4.883	1.687	0.781

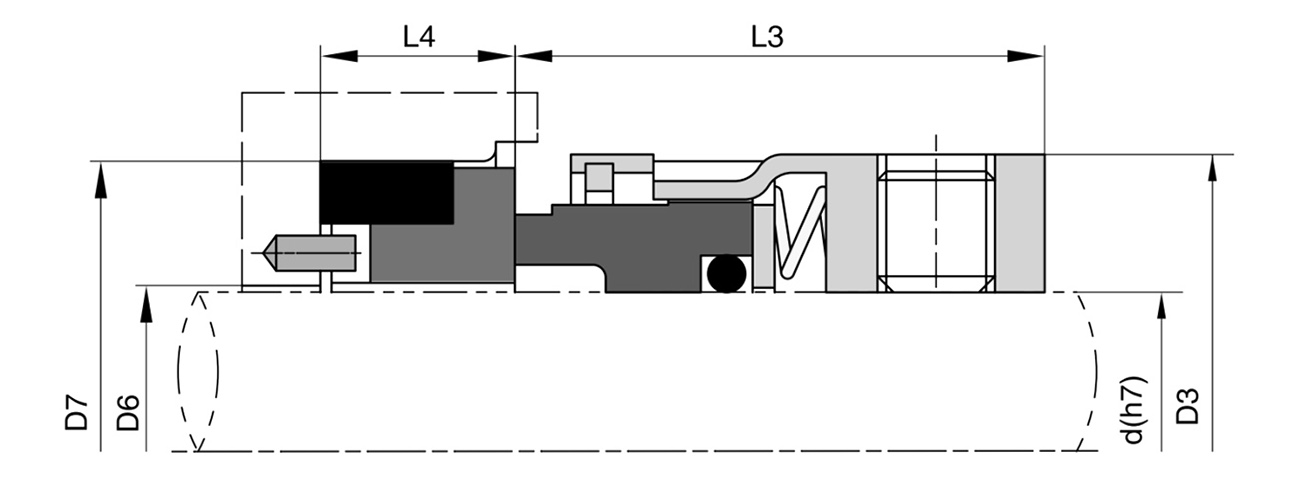

PC15 installation view cross-section — PC15 cross-section

PC15 Dimensions (in)

Size(in)	d	D3	D6	D7	L3	L4
0.500	0.500	0.937	0.528	1.000	0.937	0.311
0.625	0.625	1.062	0.654	1.250	0.937	0.406
0.750	0.750	1.187	0.776	1.375	0.937	0.406
0.875	0.875	1.312	0.902	1.500	0.937	0.406
1.000	1.000	1.437	1.028	1.625	1.000	0.437
1.125	1.125	1.562	1.154	1.750	1.000	0.437
1.250	1.250	1.687	1.276	1.875	1.000	0.437
1.375	1.375	1.937	1.402	2.000	1.375	0.437
1.500	1.500	1.937	1.528	2.125	1.125	0.437
1.625	1.625	2.250	1.669	2.375	1.156	0.500
1.750	1.750	2.312	1.791	2.500	1.375	0.500
1.875	1.875	2.500	1.917	2.625	1.375	0.500
2.000	2.000	2.625	2.043	2.750	1.375	0.500
2.125	2.125	2.812	2.165	3.000	1.687	0.563
2.250	2.250	2.843	2.291	3.125	1.375	0.563
2.375	2.375	3.000	2.417	3.250	1.687	0.563
2.500	2.500	3.125	2.543	3.375	1.375	0.563
2.625	2.625	3.250	2.665	3.375	1.687	0.626
2.750	2.750	3.375	2.791	3.500	1.687	0.626
2.875	2.875	3.500	2.917	3.750	1.687	0.626
3.000	3.000	3.625	3.043	3.875	1.687	0.626
3.125	3.125	3.750	3.169	4.000	1.687	0.780
3.250	3.250	3.875	3.291	4.125	1.687	0.780
3.375	3.375	4.000	3.417	4.250	1.687	0.780
3.500	3.500	4.125	3.543	4.375	1.687	0.780
3.625	3.625	4.250	3.665	4.500	1.687	0.780
3.750	3.750	4.375	3.791	4.625	1.687	0.780
3.875	3.875	4.500	3.917	4.750	1.687	0.780
4.000	4.000	4.625	4.043	4.875	1.687	0.780

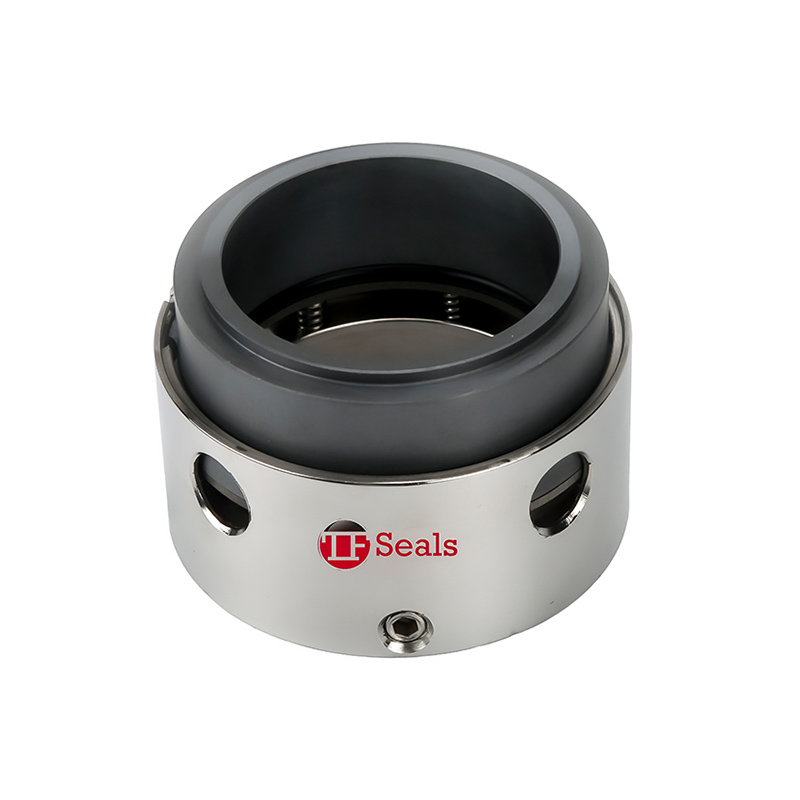

PC06 / PC16

Built for high durability and versatility, featuring a wide selection of elastomers to handle diverse industrial fluids — the higher-duty companion to the PC05/15 platform, easily built into a cartridge assembly.

Applications

General industrial rotating equipment
Centrifugal pumps, mixers, agitators

Configuration

Shaft-mounted or cartridge assembly
Snap-ring unitized construction

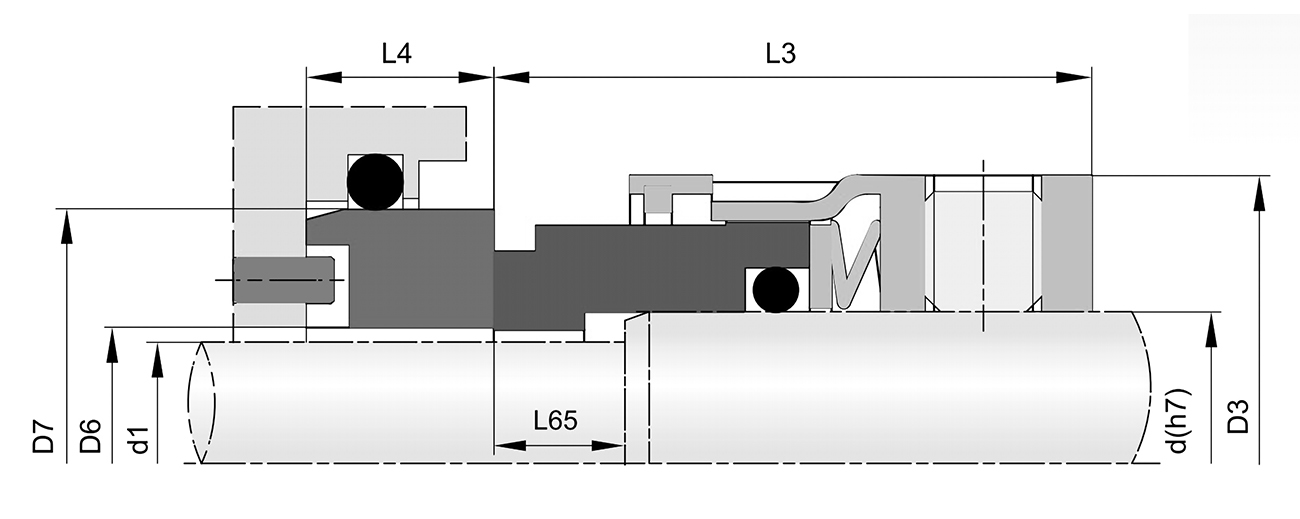

PC06 installation view cross-section — PC06 cross-section

PC06 Dimensions (in)

Size(in)	d	d1	D3	D6	D7	L3	L4	L65
1.000	1.000	0.875	1.562	0.945	1.500	1.312	0.406	0.343
1.125	1.125	1.000	1.687	1.083	1.633	1.375	0.437	0.343
1.250	1.250	1.125	1.875	1.201	1.758	1.375	0.437	0.311
1.375	1.375	1.250	2.000	1.201	1.758	1.437	0.437	0.343
1.500	1.500	1.375	2.125	1.319	1.883	1.437	0.437	0.343
1.625	1.625	1.500	2.375	1.457	2.008	1.750	0.437	0.437
1.750	1.750	1.625	2.500	1.575	2.133	1.750	0.437	0.437
1.875	1.875	1.750	2.625	1.713	2.383	1.750	0.500	0.437
2.000	2.000	1.875	2.750	1.831	2.508	1.750	0.500	0.437
2.125	2.125	2.000	3.000	1.949	2.633	2.062	0.500	0.500
2.250	2.250	2.125	3.125	2.087	2.758	2.062	0.500	0.500
2.375	2.375	2.250	3.250	2.205	3.008	2.062	0.562	0.500
2.500	2.500	2.375	3.375	2.323	3.133	2.062	0.562	0.500
2.625	2.625	2.500	3.500	2.461	3.258	2.062	0.562	0.500
2.750	2.750	2.625	3.625	2.579	3.383	2.062	0.562	0.500
2.875	2.875	2.750	3.750	2.697	3.383	2.062	0.625	0.500
3.000	3.000	2.875	3.812	2.835	3.508	2.062	0.625	0.500
3.125	3.125	2.875	3.937	2.953	3.758	2.062	0.625	0.563
3.250	3.250	3.000	4.125	3.091	3.883	2.062	0.625	0.563
3.375	3.375	3.125	4.250	3.209	4.008	2.062	0.781	0.563
3.500	3.500	3.250	4.375	3.327	4.133	2.062	0.781	0.563
3.625	3.625	3.375	4.500	3.465	4.258	2.062	0.781	0.563
3.750	3.750	3.500	4.625	3.583	4.446	2.062	0.781	0.563
3.875	3.875	3.625	4.750	3.701	4.508	2.062	0.781	0.563
4.000	4.000	3.750	4.875	3.839	4.633	2.062	0.781	0.563

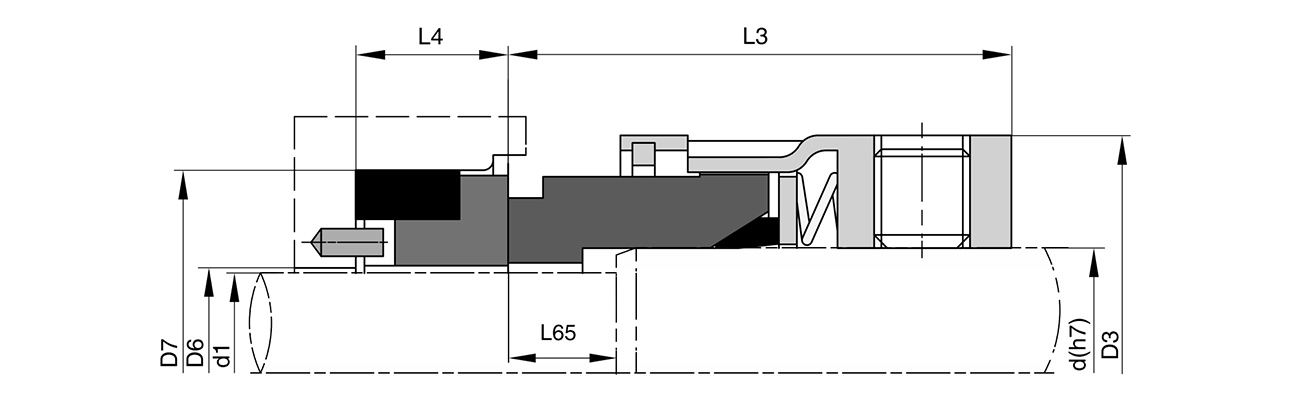

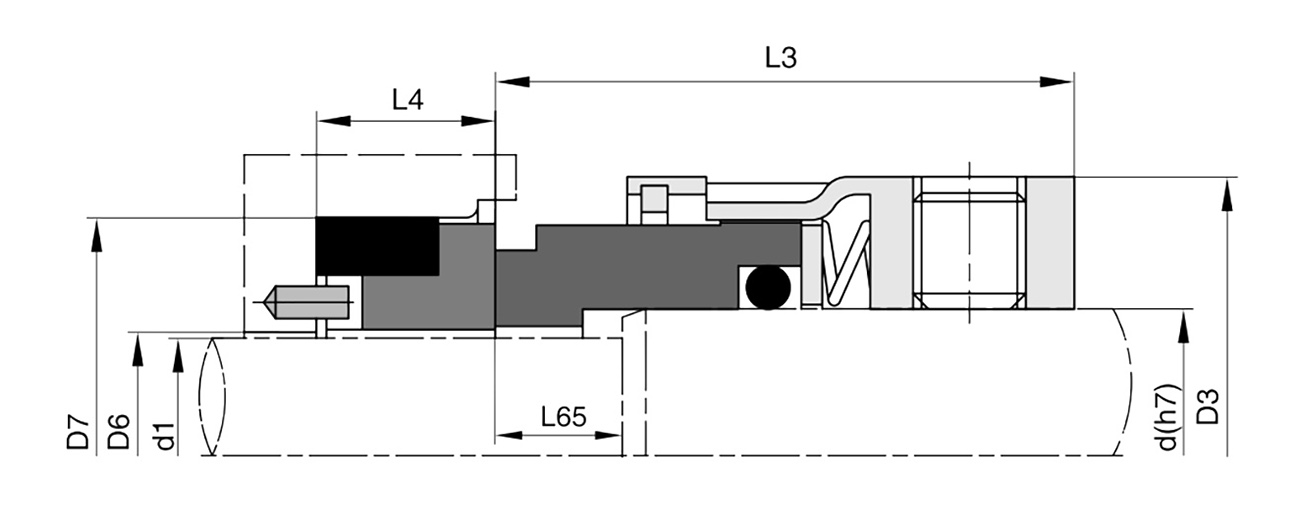

PC16 installation view cross-section — PC16 cross-section

PC16 Dimensions (in)

Size(in)	d	d1	D3	D6	D7	L3	L4	L65
1.000	1.000	0.875	1.437	0.902	1.508	1.312	0.406	0.343
1.125	1.125	1.000	1.562	1.028	1.633	1.375	0.437	0.343
1.250	1.250	1.125	1.687	1.154	1.758	1.375	0.437	0.311
1.375	1.375	1.250	1.937	1.154	1.758	1.437	0.437	0.343
1.500	1.500	1.375	1.937	1.276	1.883	1.437	0.437	0.343
1.625	1.625	1.500	2.250	1.402	2.008	1.750	0.437	0.437
1.750	1.750	1.625	2.312	1.528	2.133	1.750	0.437	0.437
1.875	1.875	1.750	2.500	1.669	2.383	1.750	0.500	0.437
2.000	2.000	1.875	2.625	1.791	2.508	1.750	0.500	0.437
2.125	2.125	2.000	2.812	1.917	2.633	2.062	0.500	0.500
2.250	2.250	2.125	2.843	2.043	2.758	2.062	0.500	0.500
2.375	2.375	2.250	3.000	2.165	3.008	2.062	0.562	0.500
2.500	2.500	2.375	3.125	2.291	3.133	2.062	0.562	0.500
2.625	2.625	2.500	3.250	2.417	3.258	2.062	0.562	0.500
2.750	2.750	2.625	3.375	2.543	3.383	2.062	0.562	0.500
2.875	2.875	2.750	3.500	2.665	3.383	2.062	0.625	0.500
3.000	3.000	2.875	3.625	2.791	3.508	2.062	0.625	0.500
3.125	3.125	2.875	3.750	2.917	3.758	2.062	0.625	0.563
3.250	3.250	3.000	3.875	3.043	3.883	2.062	0.625	0.563
3.375	3.375	3.125	4.000	3.169	4.008	2.062	0.781	0.563
3.500	3.500	3.250	4.125	3.291	4.133	2.062	0.781	0.563
3.625	3.625	3.375	4.250	3.417	4.258	2.062	0.781	0.563
3.750	3.750	3.500	4.375	3.543	4.446	2.062	0.781	0.563
3.875	3.875	3.625	4.500	3.665	4.508	2.062	0.781	0.563
4.000	4.000	3.750	4.625	3.791	4.633	2.062	0.781	0.563

Elastomer Bellow Type

PB01

Compact and versatile single spring elastomer bellows seal meeting DIN 24960, ISO 3069, and ANSI B73.1 — for clean water, wastewater, pulp & paper, food processing, marine, and moderately corrosive service.

Design Features

Unitized, easy-to-fit design for fast installation
Pressure-supported bellows — no creases or folds
Positive key drive protects bellows from torsional strain

Specifications

Temperature: -40°F to 300°F (-40°C to 150°C)
Pressure: up to 290 psi(g) (20 bar(g))
Speed: up to 3,000 fpm (15 m/s)

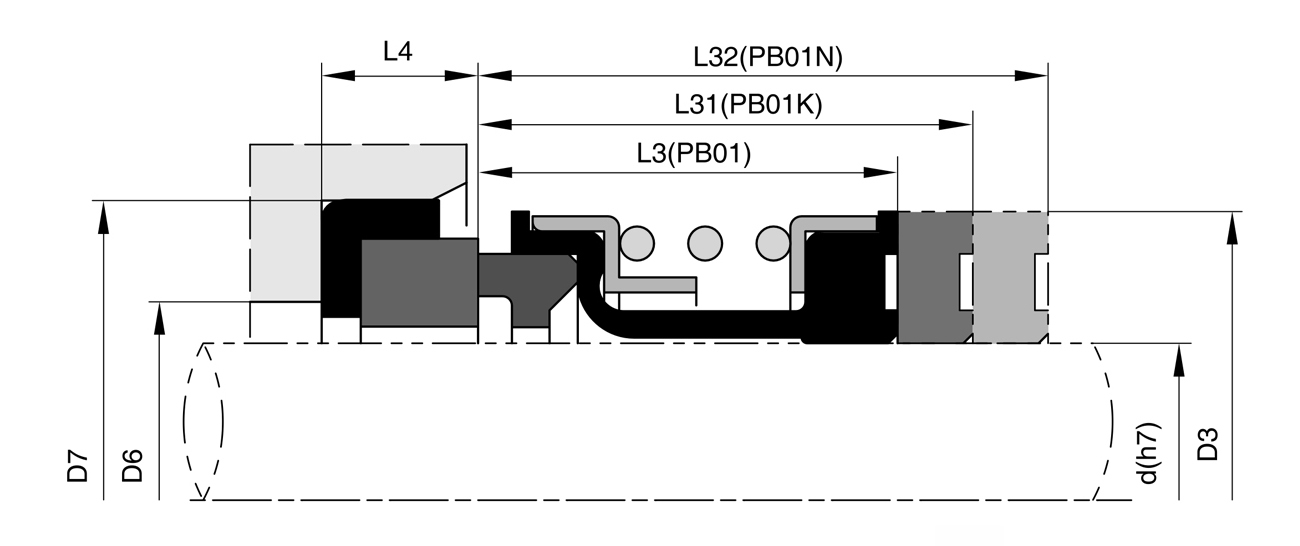

PB01 installation view cross-section — PB01 cross-section

PB01 Dimensions (mm)

Size(mm)	d	D3	D6	D7	L3	L31	L32	L4
10.00	10.00	20.00	15.00	21.00	15.00	27.50	35.00	5.00
12.00	12.00	22.00	17.00	23.00	15.00	26.50	34.00	6.00
14.00	14.00	24.00	19.00	25.00	15.00	29.00	34.00	6.00
15.00	15.00	25.00	20.00	26.00	15.00	29.00	34.00	6.00
16.00	16.00	26.00	23.00	27.00	15.00	29.00	34.00	6.00
18.00	18.00	32.00	25.00	33.00	20.00	31.50	39.00	6.00
20.00	20.00	34.00	27.00	35.00	20.00	31.50	39.00	6.00
22.00	22.00	36.00	29.00	37.00	20.00	31.50	39.00	6.00
24.00	24.00	38.00	31.00	39.00	20.00	34.00	44.00	6.00
25.00	25.00	39.00	32.00	40.00	20.00	34.00	44.00	6.00
28.00	28.00	42.00	35.00	43.00	26.00	36.50	44.00	6.00
30.00	30.00	44.00	37.00	45.00	26.00	35.50	43.00	7.00
32.00	32.00	46.00	40.00	48.00	26.00	35.50	48.00	7.00
33.00	33.00	47.00	40.00	48.00	26.00	35.50	48.00	7.00
35.00	35.00	49.00	42.00	50.00	26.00	34.50	47.00	8.00
38.00	38.00	54.00	47.00	56.00	30.00	37.00	47.00	8.00
40.00	40.00	56.00	49.00	58.00	30.00	37.00	47.00	8.00
43.00	43.00	59.00	52.00	61.00	30.00	37.00	52.00	8.00
45.00	45.00	61.00	54.00	63.00	30.00	37.00	52.00	8.00
48.00	48.00	64.00	57.00	66.00	30.00	35.00	50.00	10.00
50.00	50.00	66.00	60.00	70.00	30.00	37.50	50.00	10.00
53.00	53.00	69.00	63.00	73.00	30.00	37.50	60.00	10.00
55.00	55.00	71.00	65.00	75.00	30.00	37.50	60.00	10.00
58.00	58.00	78.00	68.00	78.00	33.00	42.50	60.00	10.00
60.00	60.00	80.00	70.00	80.00	33.00	40.50	58.00	12.00
63.00	63.00	83.00	73.00	83.00	33.00	40.50	58.00	12.00
65.00	65.00	85.00	75.00	85.00	33.00	40.50	68.00	12.00
68.00	68.00	88.00	79.00	90.00	33.00	40.50	68.00	12.00
70.00	70.00	90.00	81.00	92.00	33.00	48.00	68.00	12.00
75.00	75.00	99.00	86.00	97.00	40.00	48.00	68.00	12.00
80.00	80.00	104.00	92.00	105.00	40.00	47.50	77.50	12.50
85.00	85.00	109.00	97.00	110.00	40.00	47.50	77.50	12.50
90.00	90.00	114.00	102.00	115.00	40.00	52.50	77.50	12.50
95.00	95.00	119.00	110.00	120.00	40.00	52.50	77.50	12.50
100.00	100.00	124.00	115.00	125.00	40.00	52.50	77.50	12.50

PB02 / PB03

An industry workhorse elastomer bellows seal known for exceptional performance across a broad range of service conditions, from water and steam to corrosive chemicals.

Design Features

Mechanical actuation prevents overstressing the bellows
Auto-alignment compensates for end play, run-out, ring wear

Applications

Pumps, mixers, blenders, agitators, blowers, fans
Pulp & paper, petrochemical, food, wastewater, power gen

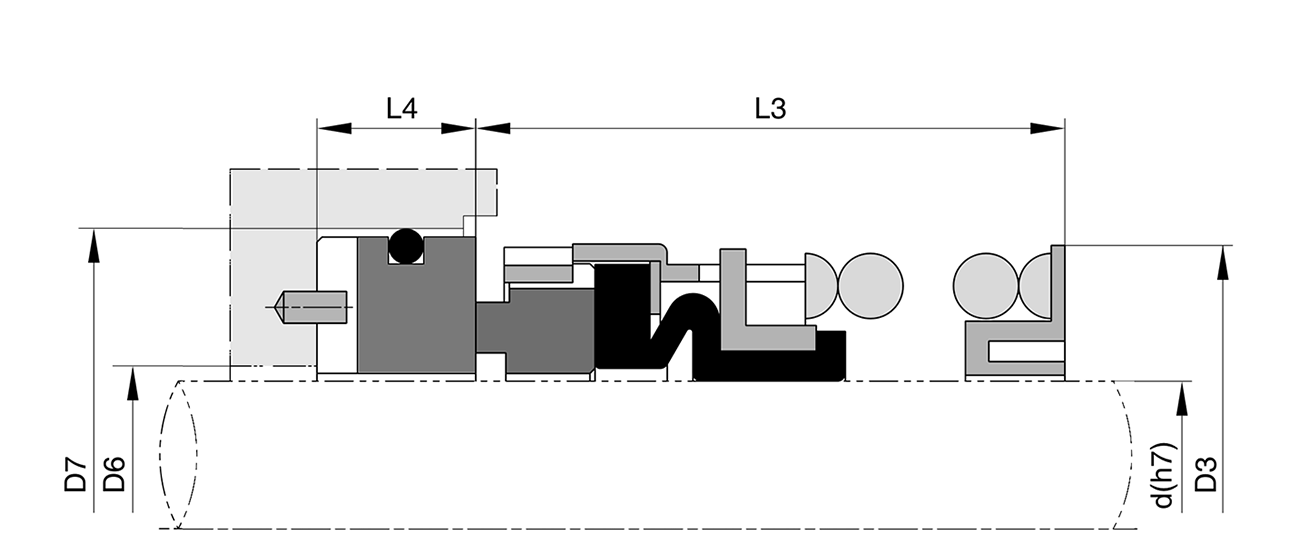

PB02 installation view cross-section — PB02 cross-section

PB02 Dimensions (in)

Size(in)	d	D3	D6	D7	L3	L4	L8
1.000	1.000	1.500	1.043	1.625	1.562	0.437	0.079
1.125	1.125	1.625	1.161	1.750	1.625	0.437	0.098
1.250	1.250	1.812	1.280	1.875	1.625	0.437	0.098
1.375	1.375	1.875	1.437	2.000	1.687	0.437	0.098
1.500	1.500	2.000	1.555	2.125	1.687	0.437	0.098
1.625	1.625	2.250	1.673	2.375	2.000	0.500	0.098
1.750	1.750	2.375	1.811	2.500	2.000	0.500	0.098
1.875	1.875	2.500	1.929	2.625	2.125	0.500	0.098
2.000	2.000	2.625	2.047	2.750	2.125	0.500	0.118
2.125	2.125	2.812	2.185	3.000	2.375	0.562	0.118
2.250	2.250	2.937	2.303	3.125	2.375	0.562	0.118
2.375	2.375	3.062	2.421	3.250	2.500	0.562	0.118
2.500	2.500	3.187	2.559	3.375	2.500	0.562	0.118
2.625	2.625	3.375	2.677	3.375	2.750	0.625	0.118
2.750	2.750	3.500	2.795	3.500	2.750	0.625	0.118
2.875	2.875	3.625	2.933	3.750	2.875	0.625	0.118
3.000	3.000	3.750	3.051	3.875	2.875	0.625	0.118
3.125	3.125	4.000	3.169	4.000	3.125	0.781	0.157
3.250	3.250	4.125	3.307	4.125	3.125	0.781	0.157
3.375	3.375	4.250	3.425	4.250	3.125	0.781	0.157
3.500	3.500	4.375	3.563	4.375	3.125	0.781	0.157
3.625	3.625	4.500	3.681	4.500	3.250	0.781	0.157
3.750	3.750	4.625	3.799	4.625	3.250	0.781	0.157
3.875	3.875	4.750	3.937	4.750	3.375	0.781	0.157
4.000	4.000	4.875	4.055	4.875	3.375	0.781	0.157

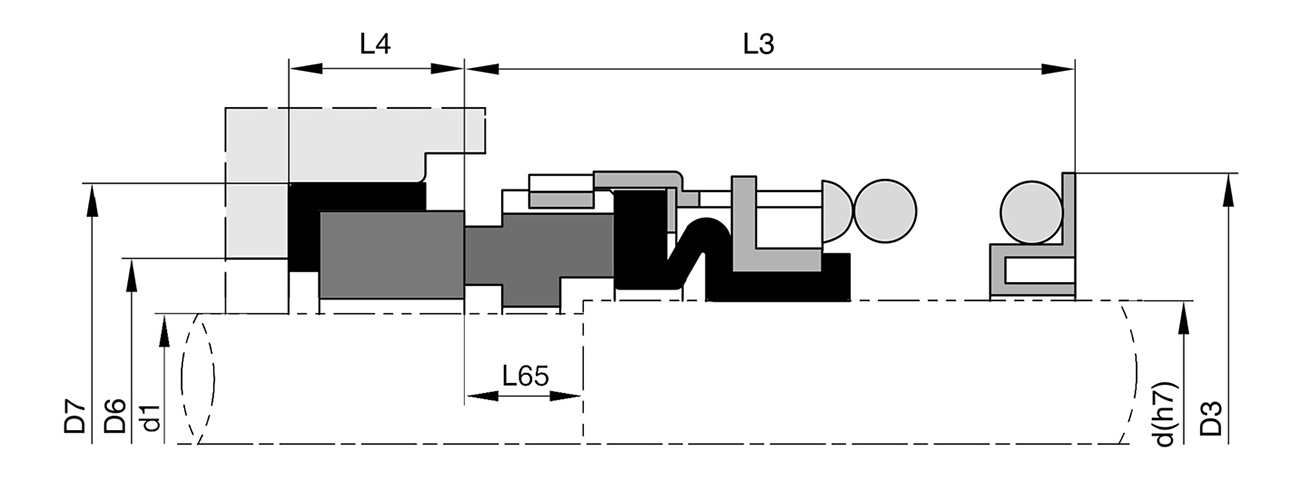

PB03 installation view cross-section — PB03 cross-section

PB03 Dimensions (in)

Size(in)	d	d1	D3	D6	L3	L4	L65
1.000	1.000	0.875	1.500	1.187	1.875	0.406	0.343
1.125	1.125	1.000	1.625	1.312	1.937	0.437	0.343
1.250	1.250	1.125	1.812	1.437	1.937	0.437	0.343
1.375	1.375	1.250	1.875	1.563	2.000	0.437	0.343
1.500	1.500	1.375	2.000	1.687	2.000	0.437	0.343
1.625	1.625	1.500	2.250	1.813	2.375	0.437	0.437
1.750	1.750	1.625	2.375	2.000	2.375	0.500	0.437
1.875	1.875	1.750	2.500	2.113	2.500	0.500	0.437
2.000	2.000	1.875	2.625	2.250	2.625	0.500	0.437
2.125	2.125	2.000	2.812	2.375	2.750	0.500	0.500
2.250	2.250	2.125	2.937	2.375	3.000	0.562	0.500
2.375	2.375	2.250	3.062	2.437	3.125	0.562	0.500
2.500	2.500	2.375	3.187	2.563	3.250	0.562	0.500
2.625	2.625	2.500	3.375	2.687	3.375	0.562	0.562
2.750	2.750	2.625	3.500	2.812	3.375	0.625	0.562
2.875	2.875	2.750	3.625	2.937	3.500	0.625	0.562
3.000	3.000	2.875	3.750	3.062	3.750	0.625	0.562
3.125	3.125	2.875	4.000	3.062	3.875	0.625	0.625
3.250	3.250	3.000	4.125	3.187	4.000	0.781	0.625
3.375	3.375	3.125	4.250	3.312	4.125	0.781	0.625
3.500	3.500	3.250	4.375	3.437	4.250	0.781	0.625
3.625	3.625	3.375	4.500	3.562	4.375	0.781	0.625
3.750	3.750	3.500	4.625	3.687	4.500	0.781	0.625
3.875	3.875	3.625	4.750	3.812	4.625	0.781	0.625
4.000	4.000	3.750	4.875	3.937	4.750	0.781	0.625

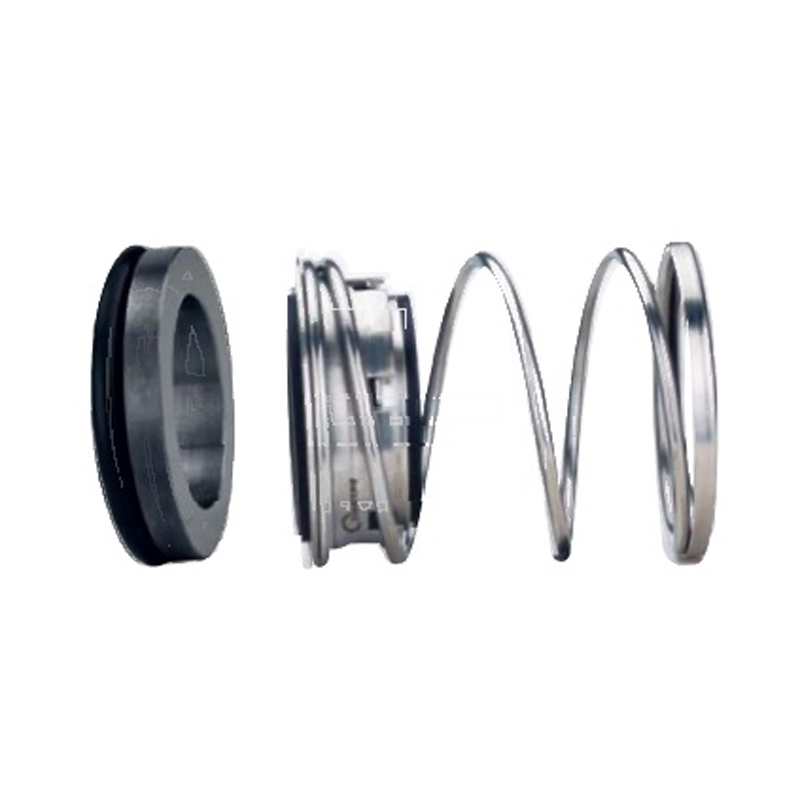

Elastomer Bellow Mechanical Seal TF PB05

PB05 (PB05B balanced variant available)

An OEM-preferred elastomer bellows seal with one of the highest success rates in its class — compact enough for equipment with limited space and shallow seal chambers. The PB05B balanced variant is built for high-pressure applications, offering increased operating speeds and reduced face wear.

Design Features

Mechanical drive prevents overstressing the bellows
Auto-alignment for end play, run-out, wear, tolerances

Applications

Pumps, mixers, blenders, agitators, compressors
Pulp & paper, food, water/wastewater, refrigeration, chemical

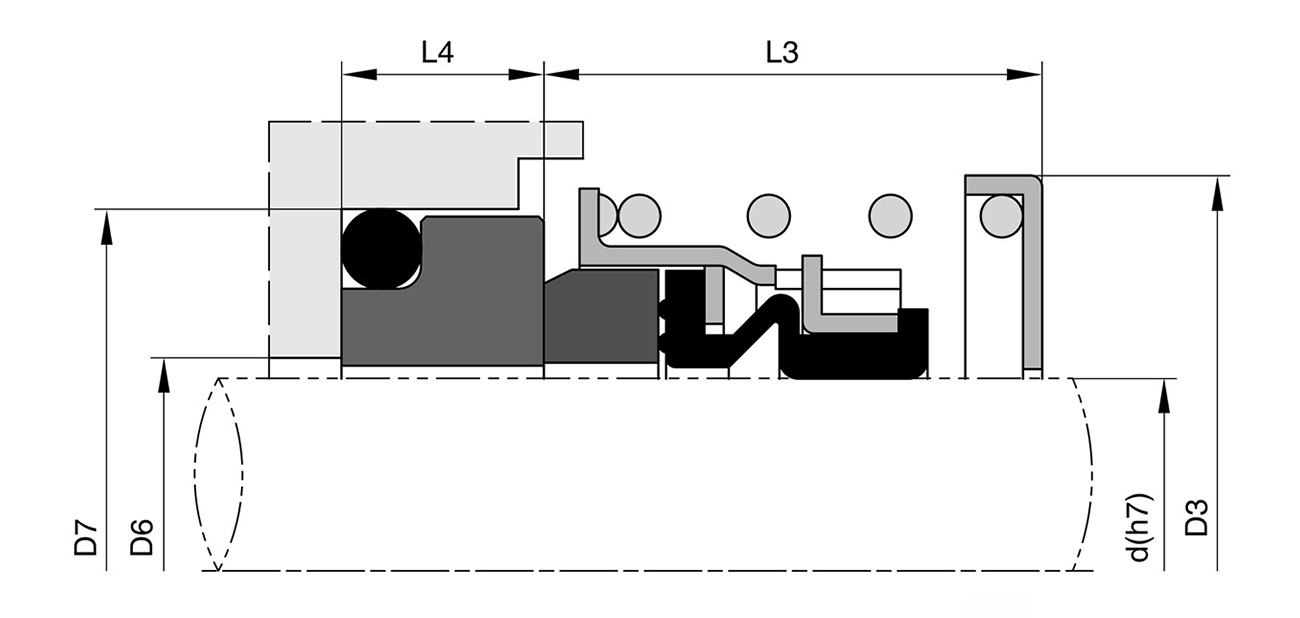

PB05 installation view cross-section — PB05 cross-section

PB05 Dimensions (in)

Size(in)	d	D3	D6	D7	L3	L4
0.375	0.375	-	0.433	0.969	1.732	0.984
0.500	0.500	-	0.531	1.094	1.732	0.984
0.625	0.625	-	0.669	1.219	1.732	0.984
0.750	0.750	-	0.787	1.344	1.732	0.984
0.813	0.813	-	0.846	1.406	1.732	0.984
0.875	0.875	-	0.906	1.469	1.732	0.984
1.000	1.000	1.496	1.043	1.594	1.732	0.984
1.125	1.125	1.811	1.161	1.876	2.362	1.299
1.250	1.250	1.929	1.280	2.000	2.362	1.299
1.375	1.375	2.047	1.437	2.126	2.362	1.299
1.500	1.500	2.205	1.555	2.250	2.362	1.299
1.625	1.625	2.323	1.673	2.376	2.362	1.299
1.750	1.750	2.441	1.811	2.500	2.795	1.614
1.875	1.875	2.559	1.929	2.626	2.795	1.614
2.000	2.000	2.677	2.047	2.750	2.795	1.614
2.125	2.125	2.795	2.185	2.876	2.795	1.614
2.250	2.250	2.953	2.303	3.000	2.795	1.614
2.375	2.375	3.071	2.421	3.126	2.795	1.614
2.500	2.500	3.189	2.559	3.250	2.795	1.614
2.625	2.625	3.386	2.677	3.626	2.756	1.929
2.750	2.750	3.504	2.795	3.750	2.756	1.929
2.875	2.875	3.622	2.933	3.876	2.874	2.047
3.000	3.000	3.740	3.051	4.000	2.874	2.047
3.125	3.125	4.016	3.169	4.376	3.110	2.205
3.250	3.250	4.134	3.307	4.500	3.110	2.205
3.375	3.375	4.252	3.425	4.626	3.110	2.205
3.500	3.500	4.370	3.563	4.750	3.110	2.205
3.625	3.625	4.488	3.681	4.876	3.268	2.323
3.750	3.750	4.606	3.799	5.000	3.268	2.323
3.875	3.875	4.764	3.937	5.126	3.386	2.441
4.000	4.000	4.882	4.055	5.250	3.386	2.441

PB06

A preferred choice in original equipment, outperforming competing seals with an exceptional success rate. Versatile and well-suited for water, refrigeration, oils, and chemicals. The PB06B variant is a balanced seal for high-pressure applications, offering increased operating speeds and reduced face wear — compact enough for equipment with limited space and shallow seal chambers.

Design Features

Mechanical drive prevents overstressing the elastomer bellows
Auto-alignment compensates for shaft end play, run-out, wear
Advanced balancing enables higher-pressure operation
Non-clogging single-coil spring, unaffected by solids buildup

Specifications

Temperature: -40°C to 205°C (-40°F to 400°F)
Pressure: Type 2 up to 29 barg (425 psig); Type 2B up to 83 barg (1200 psig)
Speed: up to 3,000 fpm (15 m/s)

PB06 Dimensions (in)

Size(in)	d	d1	D3	D6	D7	L3	L4	L65
1.000	1.000	0.875	1.812	0.906	1.469	1.312	0.406	0.343
1.125	1.125	1.000	1.937	1.043	1.594	1.375	0.406	0.343
1.250	1.250	1.125	2.062	1.161	1.876	1.375	0.469	0.343
1.375	1.375	1.250	2.250	1.280	2.000	1.437	0.469	0.343
1.500	1.500	1.375	2.375	1.437	2.126	1.437	0.469	0.343
1.625	1.625	1.500	2.718	1.555	2.250	1.750	0.469	0.437
1.750	1.750	1.625	2.750	1.673	2.376	1.750	0.469	0.437
1.875	1.875	1.750	2.875	1.811	2.500	1.875	0.469	0.437
2.000	2.000	1.875	3.000	1.929	2.626	1.875	0.469	0.437
2.125	2.125	2.000	3.250	2.047	2.750	2.062	0.531	0.500
2.250	2.250	2.125	3.375	2.185	2.876	2.062	0.531	0.500
2.375	2.375	2.250	3.500	2.303	3.000	2.187	0.531	0.500
2.500	2.500	2.375	3.625	2.421	3.126	2.187	0.531	0.500
2.625	2.625	2.500	3.875	2.559	3.250	2.312	0.531	0.562
2.750	2.750	2.625	4.000	2.677	3.626	2.312	0.626	0.562
2.875	2.875	2.750	4.125	2.795	3.750	2.437	0.626	0.562
3.000	3.000	2.875	4.250	2.933	3.876	2.437	0.626	0.562
3.125	3.125	2.875	4.562	2.933	3.876	2.562	0.626	0.625
3.250	3.250	3.000	4.687	3.051	4.000	2.562	0.626	0.625
3.375	3.375	3.125	4.812	3.169	4.376	2.562	0.783	0.625
3.500	3.500	3.250	4.937	3.307	4.500	2.562	0.783	0.625
3.625	3.625	3.375	5.125	3.425	4.626	2.687	0.783	0.625
3.750	3.750	3.500	5.250	3.563	4.750	2.687	0.783	0.625
3.875	3.875	3.625	5.437	3.681	4.876	2.812	0.783	0.625
4.000	4.000	3.750	5.562	3.799	5.000	2.812	0.783	0.625

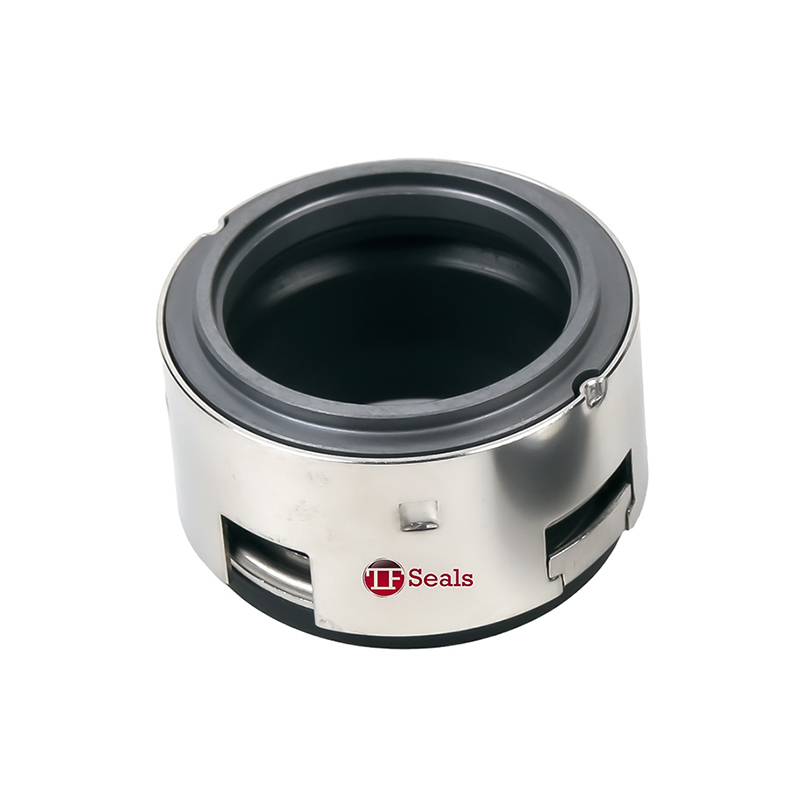

PB07

An excellent elastomeric bellows seal designed for confined spaces and limited gland depths — used across rotary equipment, pumps, marine systems, mixers, agitators, blowers, and fans.

Design Features

Completely assembled, one-piece design for fast installation
Unitized positive retainer/key drive from the bellows
Non-clogging single coil spring

Specifications

Temperature: -40°C to +205°C
Pressure: up to 40 bar(g)
Speed: up to 13 m/s

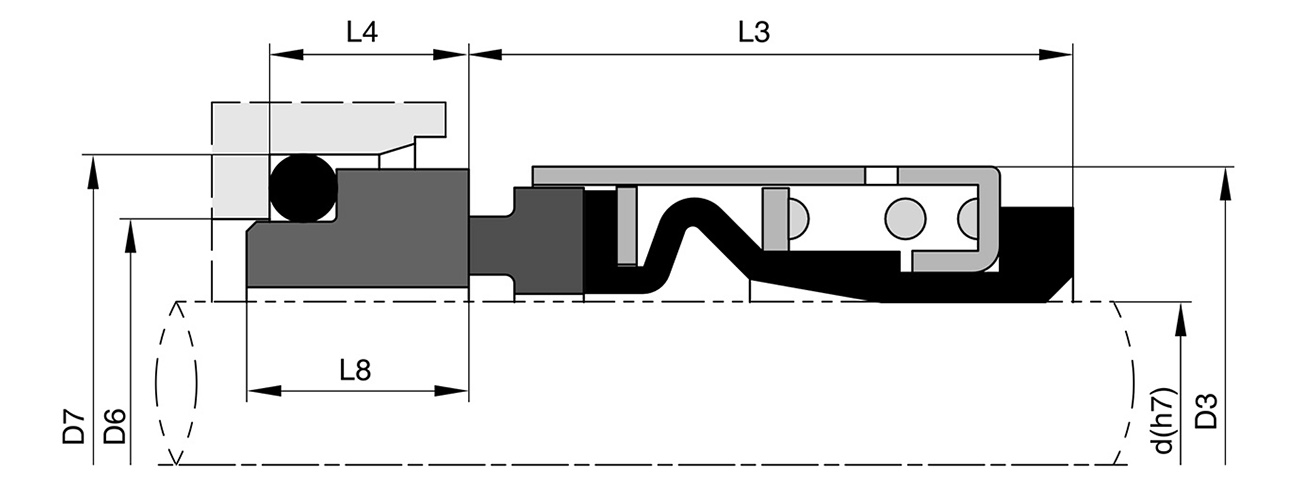

PB07 installation view cross-section — PB07 cross-section

PB07 Dimensions (in)

Size(in)	d	D3	D6	D7	L3	L4	L8
0.551	0.551	0.945	0.827	0.984	0.906	0.472	0.504
0.630	0.630	1.024	0.906	1.063	0.906	0.472	0.504
0.709	0.709	1.260	1.063	1.299	0.945	0.531	0.571
0.787	0.787	1.339	1.142	1.378	0.945	0.531	0.571
0.866	0.866	1.417	1.220	1.457	0.945	0.531	0.571
0.945	0.945	1.496	1.299	1.535	1.051	0.524	0.563
0.984	0.984	1.535	1.339	1.575	1.063	0.512	0.551
1.102	1.102	1.654	1.457	1.693	1.181	0.492	0.531
1.181	1.181	1.732	1.535	1.772	1.201	0.472	0.512
1.260	1.260	1.811	1.654	1.890	1.201	0.472	0.512
1.496	1.496	2.126	1.929	2.205	1.260	0.512	0.551
1.575	1.575	2.205	2.008	2.283	1.260	0.512	0.551
1.969	1.969	2.598	2.441	2.756	1.339	0.531	0.571
2.087	2.087	2.717	2.559	2.874	1.339	0.531	0.571
2.756	2.756	3.504	3.268	3.622	1.791	0.571	0.598
3.150	3.150	4.094	3.740	4.134	1.772	0.591	0.618
3.937	3.937	4.882	4.528	4.921	1.969	0.591	0.618

PB12 / PB12H

Favored by OEM designers — a versatile, general-purpose stainless steel seal offering superior performance for centrifugal, rotary, and turbine pumps, compressors, mixers, blenders, chillers, and agitators.

Design Features

Self-aligning; adjusts for shaft end play and run-out
Eliminates shaft fretting damage
Single coil spring improves clogging tolerance
Simple to fit and field repairable

Specifications

Temperature: -40°F to 400°F (-40°C to 205°C)
Pressure: up to 150 psi(g) (11 bar(g))
Speed: up to 2,500 fpm (13 m/s)

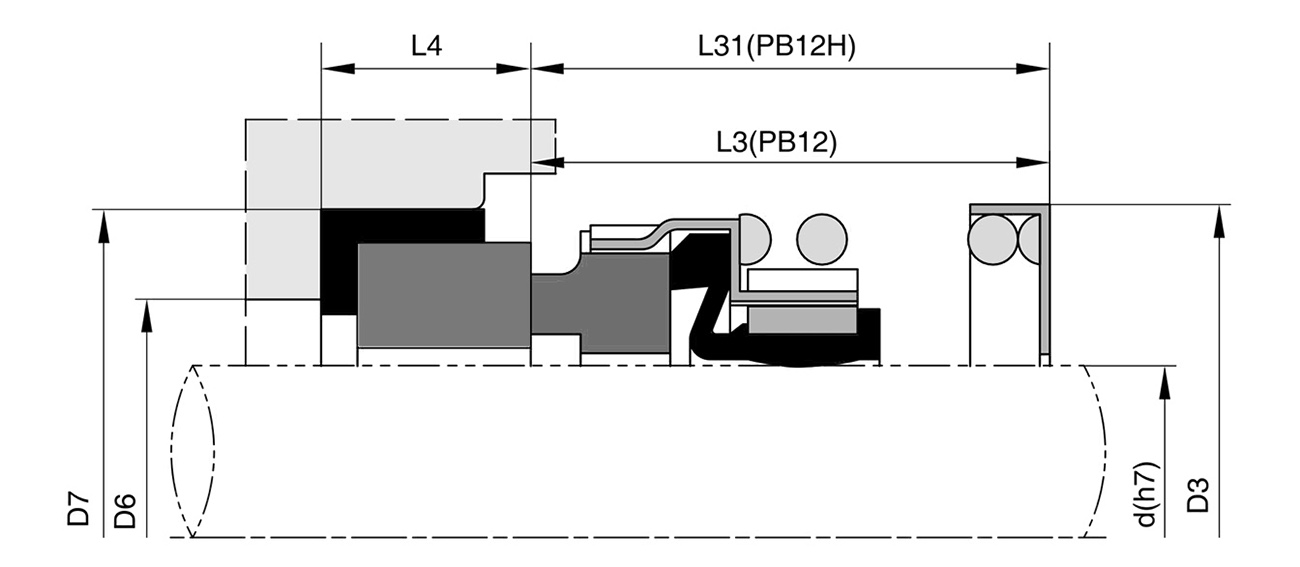

PB12/PB12H installation view cross-section — PB12/PB12H cross-section

PB12 Dimensions (in)

Size(in)	d	D3	D6	D7	L3	L4
0.375	0.375	0.878	0.625	0.875	0.812	0.313
0.500	0.500	0.925	0.750	1.000	0.812	0.313
0.625	0.625	1.114	0.937	1.250	0.875	0.406
0.750	0.750	1.260	1.062	1.375	0.875	0.406
0.875	0.875	1.339	1.187	1.500	0.937	0.406
1.000	1.000	1.594	1.312	1.625	1.000	0.437
1.125	1.125	1.791	1.437	1.750	1.062	0.437
1.250	1.250	1.870	1.563	1.875	1.062	0.437
1.375	1.375	1.984	1.687	2.000	1.125	0.437
1.500	1.500	2.126	1.813	2.125	1.125	0.437
1.625	1.625	2.339	2.000	2.375	1.375	0.500
1.750	1.750	2.476	2.125	2.500	1.375	0.500
1.875	1.875	2.673	2.250	2.625	1.500	0.500
2.000	2.000	2.878	2.375	2.750	1.500	0.500
2.125	2.125	2.917	2.375	3.000	1.687	0.562
2.250	2.250	3.232	2.437	3.125	1.687	0.562
2.375	2.375	3.232	2.563	3.250	1.813	0.562
2.500	2.500	3.390	2.687	3.375	1.813	0.562
2.625	2.625	3.508	2.812	3.375	1.937	0.625
2.750	2.750	3.626	2.937	3.500	1.937	0.625
3.000	3.000	3.882	3.187	3.875	2.062	0.625
3.250	3.250	4.339	3.437	4.125	2.187	0.781
3.500	3.500	4.488	3.687	4.375	2.187	0.781
3.750	3.750	4.764	3.937	4.625	2.312	0.781
4.000	4.000	5.063	4.187	4.875	2.437	0.781

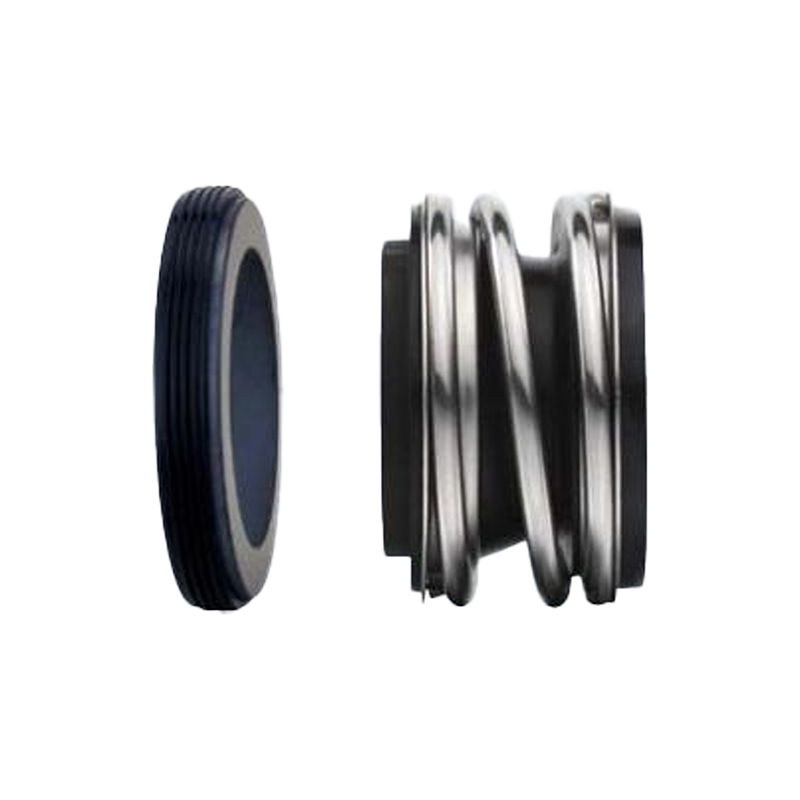

PB20

Provides complete shaft protection with a specially designed bellows that safeguards the seal face during installation — resilient to shaft deflection with significant axial movement capability, including low-end sterile applications.

Design Features

Single and dual seal options
Unbalanced configuration, no torsion on bellows
Independent of direction of rotation

Specifications

Pressure: up to 16 bar (230 psi)
Temperature: -20°C to +140°C (-4°F to +284°F)
Speed: up to 10 m/s (33 ft/s)

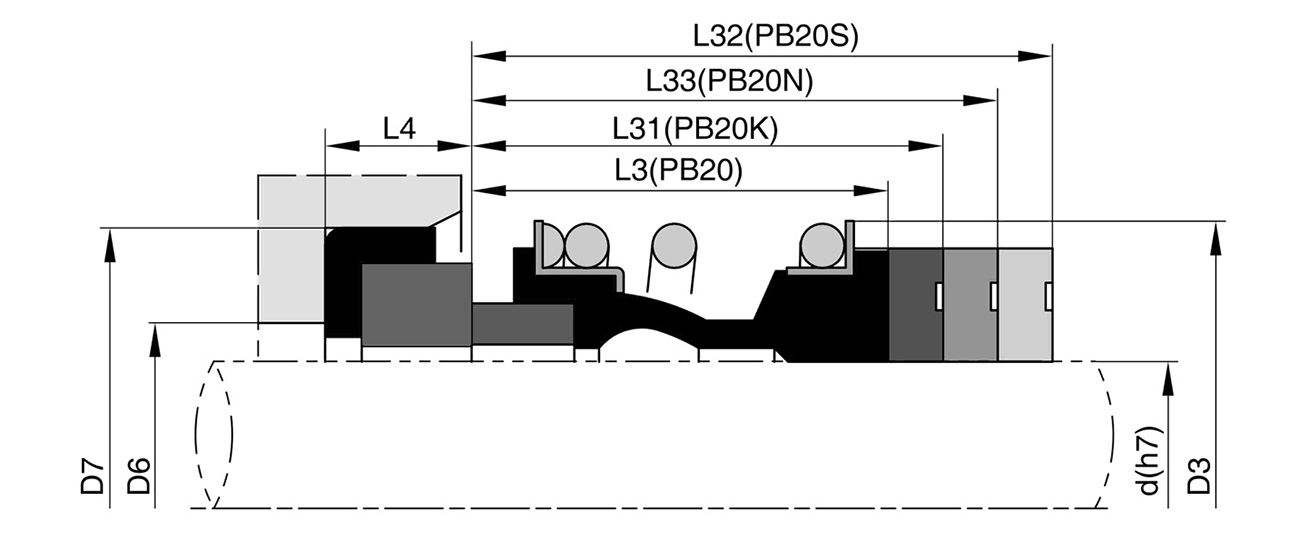

PB20 installation view cross-section — PB20 cross-section

PB20 Dimensions (mm)

Size(mm)	d	D3	D6	D7	L3	L4
10	10.0	22.5	17.0	21.0	14.5	6.6
12	12.0	25.0	19.0	23.0	15.0	6.6
14	14.0	28.5	21.0	25.0	17.0	6.6
16	16.0	28.5	23.0	27.0	17.0	6.6
18	18.0	32.0	27.0	33.0	19.5	7.5
20	20.0	37.0	29.0	35.0	21.5	7.5
24	24.0	42.5	33.0	39.0	22.5	7.5
25	25.0	42.5	34.0	40.0	23.0	7.5
28	28.0	49.0	37.0	43.0	26.5	7.5
30	30.0	49.0	39.0	45.0	26.5	7.5
35	35.0	57.0	44.0	50.0	28.5	7.5
38	38.0	59.0	49.0	56.0	30.0	9.0
40	40.0	62.0	51.0	58.0	30.0	9.0
45	45.0	68.0	56.0	63.0	30.0	9.0
50	50.0	74.0	62.0	70.0	30.5	9.5
55	55.0	81.0	67.0	75.0	35.0	11.0
60	60.0	88.5	72.0	80.0	38.0	11.0
65	65.0	93.5	77.0	85.0	40.0	11.0
70	70.0	99.5	83.0	92.0	40.0	11.3
75	75.0	107.0	88.0	97.0	40.0	11.3
80	80.0	112.0	95.0	105.0	40.0	12.0
90	90.0	127.0	105.0	115.0	45.0	14.0
100	100.0	137.0	115.0	125.0	47.0	14.0

PTFE Wedge Type

PQ05 / PQ15

Designed for corrosive fluid applications, featuring a PTFE wedge secondary sealing element for broad chemical compatibility. Unitized, snap-ring-secured construction for straightforward installation and removal.

Design Features

Mechanical drive reduces slippage, prevents galling
Wedge element in PTFE or flexible graphite

Specifications

PQ05 temp: -212°C to +400°C (-350°F to +750°F)
Chemical, food, marine, nuclear, offshore, petrochemical, pharma, power gen, pulp & paper, wastewater, desalination

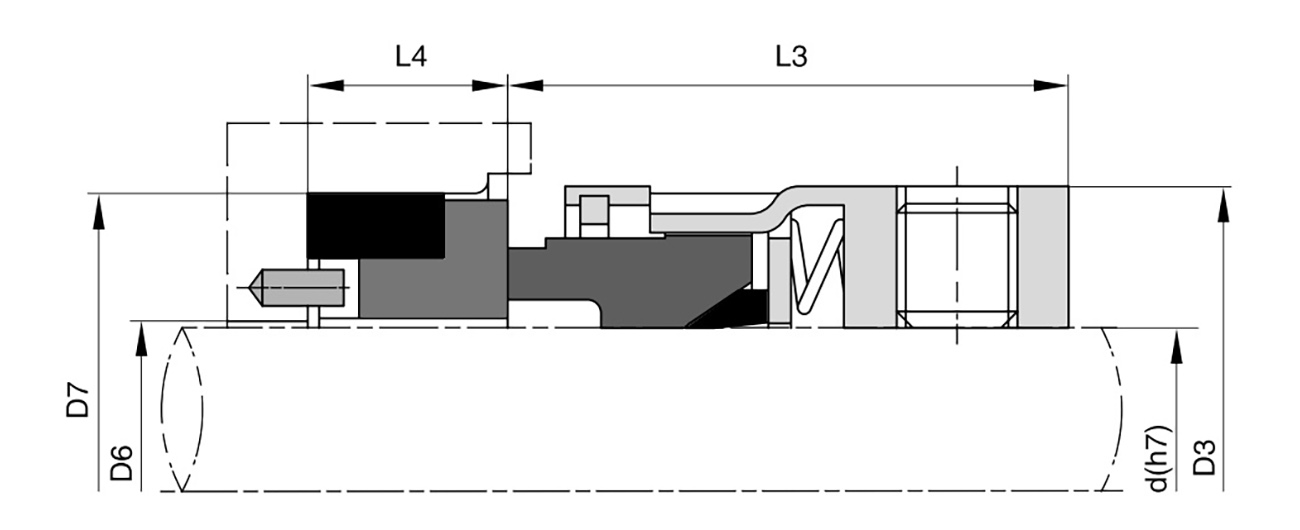

PQ05 installation view cross-section — PQ05 cross-section

PQ05 Dimensions (in)

Size(in)	d	D3	D6	D7	L3	L4
0.500	0.500	1.051	0.528	1.000	0.812	0.311
0.625	0.625	1.207	0.654	1.250	0.750	0.406
0.750	0.750	1.332	0.776	1.375	0.875	0.406
0.875	0.875	1.457	0.902	1.500	0.937	0.406
1.000	1.000	1.579	1.028	1.625	1.000	0.437
1.125	1.125	1.707	1.154	1.750	1.062	0.437
1.250	1.250	1.895	1.276	1.875	1.062	0.437
1.375	1.375	2.020	1.402	2.000	1.125	0.437
1.500	1.500	2.145	1.528	2.125	1.125	0.437
1.625	1.625	2.395	1.669	2.375	1.375	0.500
1.750	1.750	2.520	1.791	2.500	1.375	0.500
1.875	1.875	2.582	1.917	2.625	1.375	0.500
2.000	2.000	2.770	2.043	2.750	1.375	0.500
2.125	2.125	3.020	2.165	3.000	1.687	0.563
2.250	2.250	3.145	2.291	3.125	1.687	0.563
2.500	2.500	3.395	2.543	3.375	1.687	0.626
2.750	2.750	3.645	2.791	3.500	1.687	0.626
3.000	3.000	3.832	3.043	3.875	1.687	0.626
3.500	3.500	4.395	3.543	4.375	1.687	0.780
4.000	4.000	4.895	4.043	4.875	1.687	0.780

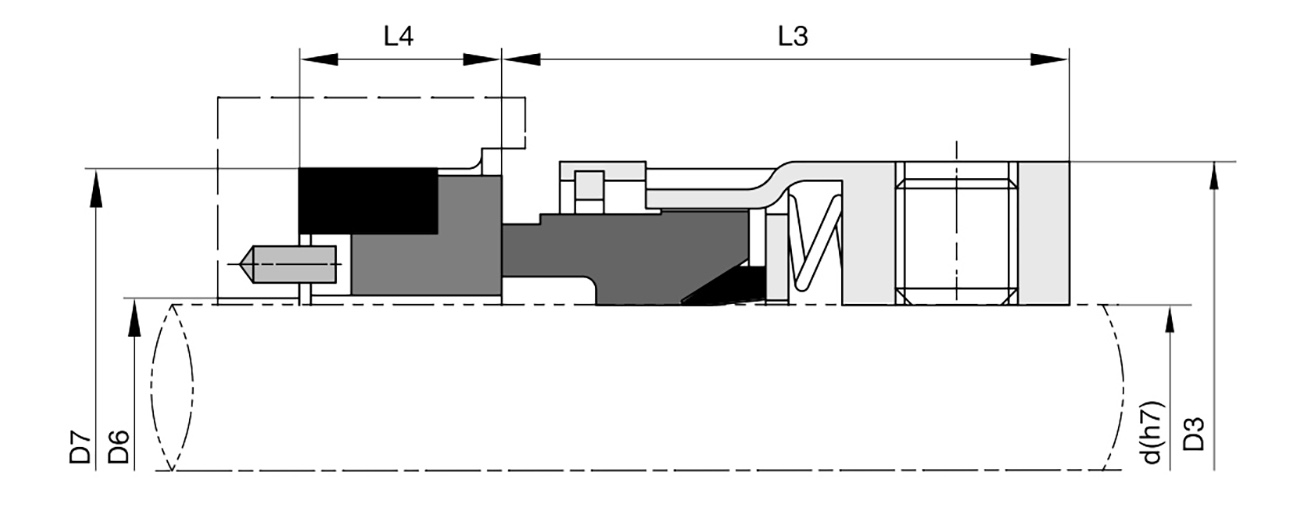

PQ15 installation view cross-section — PQ15 cross-section

PQ15 Dimensions (in)

Size(in)	d	D3	D6	D7	L3	L4
0.500	0.500	0.937	0.528	1.000	0.937	0.311
0.625	0.625	1.062	0.654	1.250	0.937	0.406
0.750	0.750	1.187	0.776	1.375	0.937	0.406
0.875	0.875	1.312	0.902	1.500	0.937	0.406
1.000	1.000	1.437	1.028	1.625	1.000	0.437
1.125	1.125	1.562	1.154	1.750	1.000	0.437
1.250	1.250	1.687	1.276	1.875	1.000	0.437
1.375	1.375	1.937	1.402	2.000	1.375	0.437
1.500	1.500	1.937	1.528	2.125	1.125	0.437
1.625	1.625	2.250	1.669	2.375	1.156	0.500
1.750	1.750	2.312	1.791	2.500	1.375	0.500
2.000	2.000	2.625	2.043	2.750	1.375	0.500
2.250	2.250	2.843	2.291	3.125	1.375	0.563
2.500	2.500	3.125	2.543	3.375	1.375	0.563
3.000	3.000	3.625	3.043	3.875	1.687	0.780
3.500	3.500	4.125	3.543	4.375	1.687	0.780
4.000	4.000	4.625	4.043	4.875	1.687	0.780

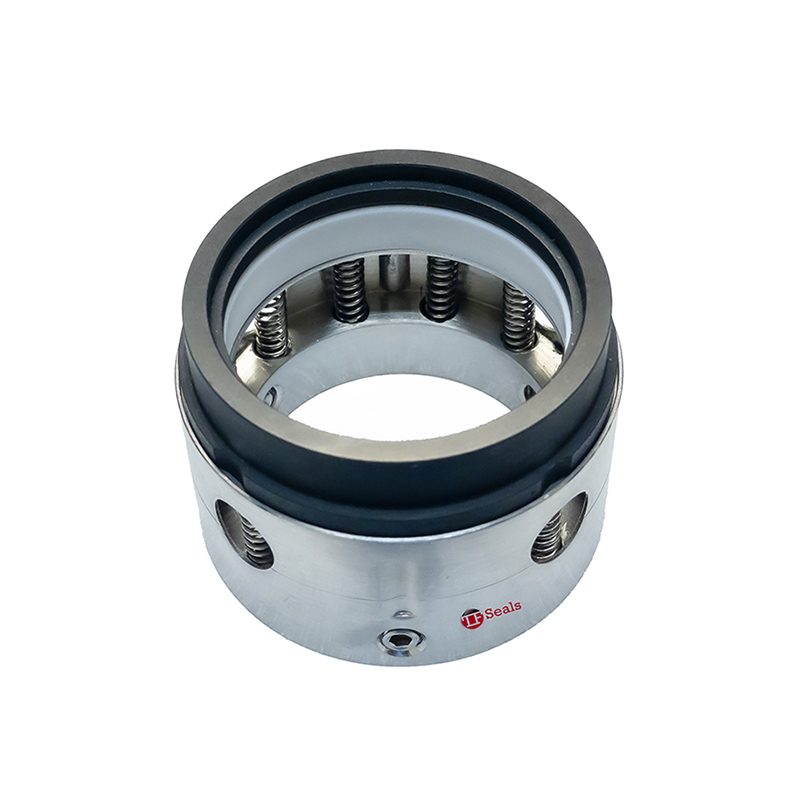

PQ06 / PQ16

Engineered for expensive and corrosive process liquids, with a wedge-construction secondary sealing element to prevent leakage. Hydropad versions available for high-pressure corrosive fluids such as sulfuric, nitric, phosphoric, or hydrochloric acids.

Design Features

Unitized, snap-ring-secured for simple install/removal
Wedge element in PTFE or flexible graphite

Specifications

PQ16 temp: -29°C to +260°C (-20°F to +500°F)
Centrifugal pumps, mixers, agitators

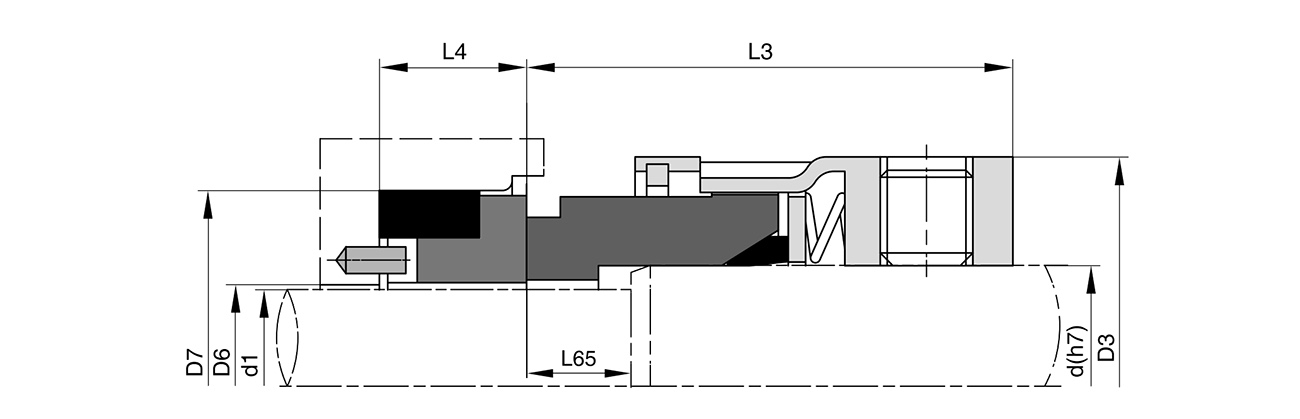

PQ06 installation view cross-section — PQ06 cross-section

PQ06 Dimensions (in)

Size(in)	d	d1	D3	D6	D7	L3	L4	L65
1.000	1.000	0.875	1.579	0.902	1.508	1.312	0.406	0.252
1.125	1.125	1.000	1.707	1.028	1.633	1.375	0.437	0.311
1.250	1.250	1.125	1.895	1.154	1.758	1.375	0.437	0.311
1.500	1.500	1.375	2.145	1.276	1.883	1.437	0.437	0.343
1.750	1.750	1.625	2.520	1.528	2.133	1.750	0.437	0.374
2.000	2.000	1.875	2.770	1.791	2.508	1.750	0.500	0.374
2.500	2.500	2.375	3.395	2.291	3.133	2.062	0.562	0.437
3.000	3.000	2.875	3.832	2.791	3.508	2.062	0.625	0.437
3.500	3.500	3.250	4.395	3.291	4.133	2.062	0.781	0.563
4.000	4.000	3.750	4.895	3.791	4.633	2.062	0.781	0.563

PQ16 installation view cross-section — PQ16 cross-section

PQ16 Dimensions (in)

Size(in)	d	d1	D3	D6	D7	L3	L4	L65
1.000	1.000	0.875	1.437	0.902	1.500	1.312	10.3	8.7
1.250	1.250	1.125	1.687	1.154	1.750	1.375	11.1	8.7
1.500	1.500	1.250	1.937	1.276	1.875	1.437	11.1	8.7
1.750	1.750	1.500	2.312	1.528	2.124	1.750	11.1	11.1
2.000	2.000	1.750	2.625	1.791	2.500	1.750	12.7	11.1
2.500	2.500	2.250	3.125	2.291	3.125	1.750	14.3	12.7
3.000	3.000	2.750	3.625	2.791	3.500	2.062	15.9	12.7
3.500	3.500	3.250	4.125	3.291	4.125	2.062	19.8	14.3
4.000	4.000	3.750	4.625	3.791	4.625	2.062	19.8	14.3

Cartridge Seals

4 models · Single & Dual Cartridge · NSF/ANSI/CAN 61 certified lines

Single Cartridge Type

PZ46 Series

A comprehensive, cost-effective cartridge seal for ANSI/DIN pumps, close-coupled pumps, vertical pumps, and similar rotating equipment. Certified to NSF/ANSI/CAN 61 for potable water contact.

Design Features

Optimized design for the running face
Space-saving cartridge design

Specifications

Pressure: up to 220 psig
Temperature: up to 266°F
Speed: up to 3,600 rpm

— denotes a cell not populated in TF Seals' published spec sheet; confirm exact figure with Engineering for critical tolerances.

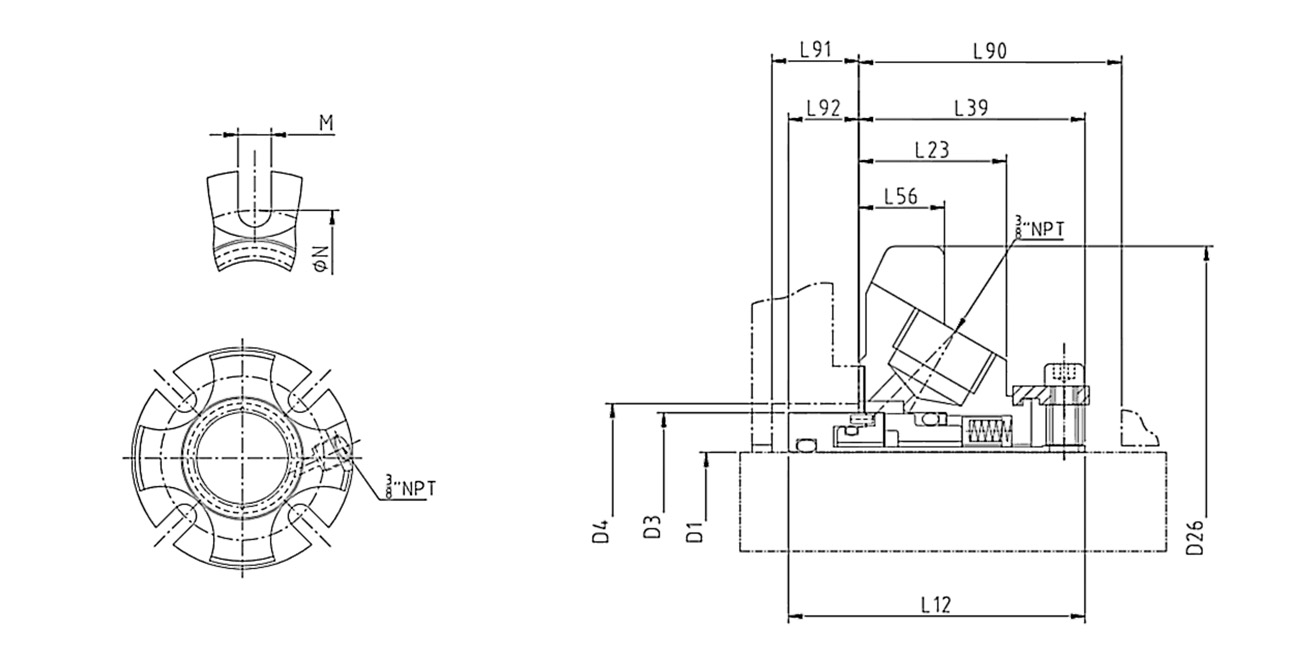

PZ46 Standard Bore installation view — PZ46 Standard Bore

PZ46 Standard Bore Dimensions (in) — full table

Size(in)	D1	D3	D4 Min	D4 Max	D26	L12	L23	L39	L56	L90	L91	L92	M	N
1.000	1.000	1.375	1.626	1.889	4.000	1.989	0.945	1.535	0.598	2.000	0.160	0.453	0.525	2.805
1.125	1.125	1.500	1.752	2.015	4.125	2.062	1.031	1.579	0.598	2.125	0.125	0.492	0.525	2.933
1.250	1.250	1.625	1.874	2.294	4.250	2.062	1.031	1.579	0.598	2.125	0.125	0.492	0.525	3.213
1.375	1.375	1.750	2.000	2.421	4.375	2.062	1.031	1.579	0.598	2.125	0.125	0.492	0.525	3.338
1.500	1.500	1.937	2.252	2.680	4.875	2.156	0.031	1.591	0.630	2.187	0.156	0.516	0.525	3.599
1.625	1.625	2.062	2.374	2.812	5.000	2.156	0.031	1.591	0.630	2.187	0.156	0.516	0.562	3.766
1.750	1.750	2.170	2.480	2.918	5.250	2.156	0.031	1.591	0.630	2.187	0.156	0.516	0.562	3.875
1.875	1.875	2.312	2.626	2.918	5.250	2.156	1.031	1.591	0.630	2.187	0.156	0.516	0.562	3.875
2.000	2.000	2.437	2.756	3.015	5.500	2.375	1.031	1.890	0.630	2.375	0.187	0.484	0.562	4.000
2.125	2.125	2.562	2.870	3.360	5.859	2.375	1.169	1.890	0.630	2.375	0.187	0.484	0.687	4.469
2.250	2.250	2.687	3.000	3.485	6.500	2.375	1.169	1.890	0.630	2.375	0.187	0.484	0.687	4.566
2.375	2.375	2.812	3.126	3.610	6.500	2.484	1.283	2.047	0.685	2.528	0.143	0.437	0.687	4.719
2.500	2.500	3.062	3.370	3.891	6.750	2.484	1.283	2.146	0.685	2.625	0.125	0.339	0.687	5.000
2.625	2.625	3.312	3.626	4.062	6.750	2.562	1.193	2.083	0.685	2.562	0.125	0.417	0.687	5.170
2.750	2.750	3.312	3.626	4.062	6.750	2.500	1.193	2.083	0.685	2.562	0.125	0.417	0.687	4.170
2.875	2.875	3.375	3.752	—	6.750	7.000	1.291	2.083	0.685	2.562	0.125	0.417	0.687	5.312
3.000	3.000	3.625	4.000	4.469	7.750	2.562	1.315	2.146	0.744	2.625	0.125	0.354	0.812	5.720
3.125	3.125	3.750	4.126	4.600	7.875	2.562	1.161	2.146	—	2.687	0.125	0.417	0.812	5.845
3.250	3.250	3.750	4.134	4.600	7.437	2.562	1.161	2.094	—	2.635	0.177	0.469	0.812	5.845
3.375	3.375	4.000	4.374	4.850	8.125	2.562	1.161	2.146	—	2.687	0.125	0.417	0.812	6.095
3.500	3.500	4.125	4.500	4.975	8.250	2.562	1.161	2.146	—	2.687	0.125	0.417	0.812	6.220
3.625	3.625	4.218	4.626	5.100	8.375	2.562	1.161	2.146	—	2.687	0.125	0.417	0.687	6.250
3.750	3.750	4.343	4.724	5.199	8.750	2.562	1.161	2.146	—	2.687	0.125	0.417	0.687	6.770
3.875	3.875	4.468	4.874	5.375	8.750	2.562	1.161	2.146	—	2.687	0.125	0.417	0.812	6.636
4.000	4.000	4.593	5.000	5.500	9.000	2.562	1.161	2.146	—	2.687	0.125	0.417	0.812	6.761

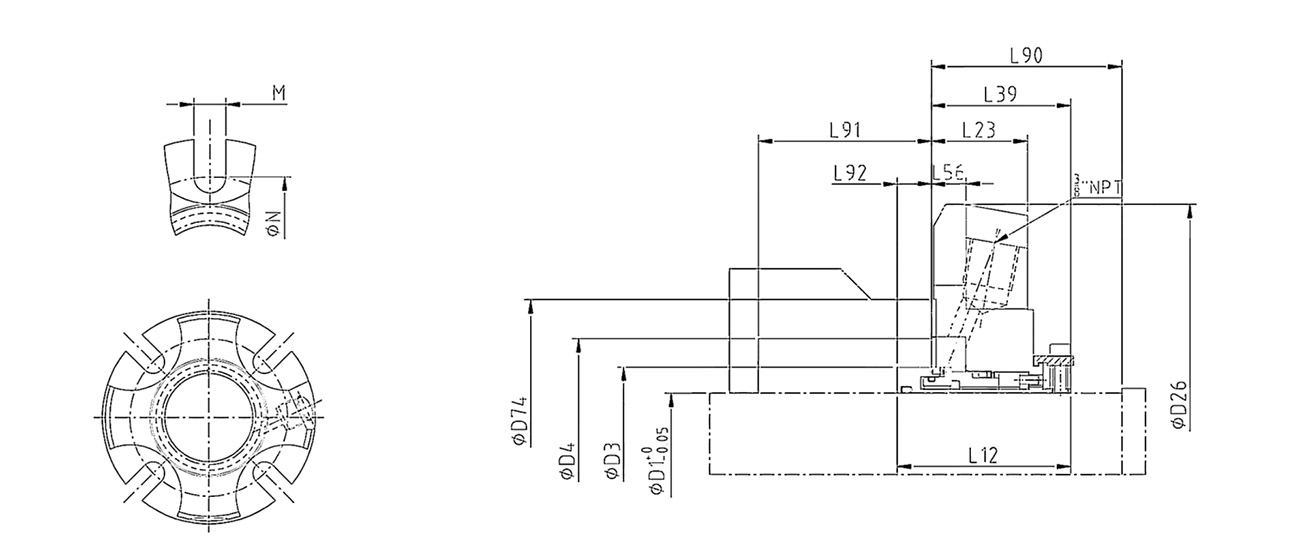

PZ46 Big Bore installation view — PZ46 Big Bore

PZ46 Big Bore Dimensions (in)

Size(in)	D1	D3	D4 Min	D4 Max	D26	L12	L23	L39	L56	L90	L91	L92	M	N	D74
1.375	1.375	1.750	2.875	3.023	5.375	2.062	0.031	1.579	0.598	2.125	0.125	0.492	0.525	4.062	3.268
1.750	1.750	3.170	3.500	3.925	6.500	2.156	0.031	1.591	0.630	2.187	0.156	0.516	0.562	5.093	3.885
1.875	1.875	2.312	3.625	3.734	6.500	2.156	1.031	1.591	0.630	2.187	0.156	0.516	0.562	5.093	4.125
2.125	2.125	2.562	3.875	4.250	7.156	2.375	0.169	1.890	0.630	2.375	0.187	0.484	0.687	5.687	4.264
2.500	2.500	3.062	4.750	4.875	8.000	2.484	1.283	2.146	0.685	2.625	0.125	0.339	0.687	6.062	5.139
2.625	2.625	3.312	4.625	4.740	8.000	2.562	0.193	2.083	0.685	2.562	0.125	0.417	0.687	6.062	5.125
2.750	2.750	3.312	4.750	4.875	8.000	2.562	0.193	2.083	0.685	2.562	0.125	0.417	0.687	6.062	5.139

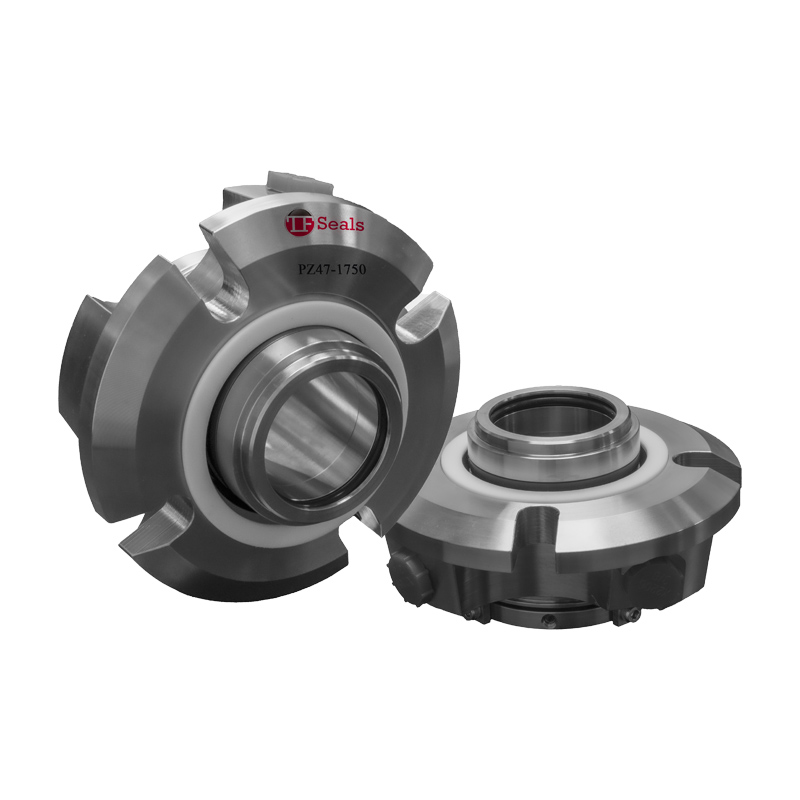

PZ47 / PZ47Q

A versatile modular cartridge seal family offering interchangeable elastomer bellows, metal bellows, and elastomer O-ring pusher configurations. The Type PZ47 single seal uses an elastomer O-ring as the secondary seal; the common seal head/mating ring set is reversible (rotating seat or rotating seal head) and compatible with metal bellows seal heads. PZ47Q adds a quench option via carbon ring throttle bush. Certified to NSF/ANSI/CAN 61 for potable water contact.

Design Features

Reversible seal head for versatile use
Fits ANSI B73.1M, ISO 3069, DIN 24960 chambers
Optimized primary ring design for enhanced reliability
External non-clogging wave spring

Specifications

Temperature: -30°C to 205°C (-20°F to 400°F)
Pressure: up to 21 barg (300 psig) ≤75mm (3.00"); 13 barg (200 psig) above
Speed: up to 25 m/s (5,000 fpm)
Axial float/end play tolerance: 0.13mm (0.005")
Runout/squareness tolerance: 0.05mm (0.002")

— denotes a cell not populated in TF Seals' published spec sheet; confirm exact figure with Engineering for critical tolerances.

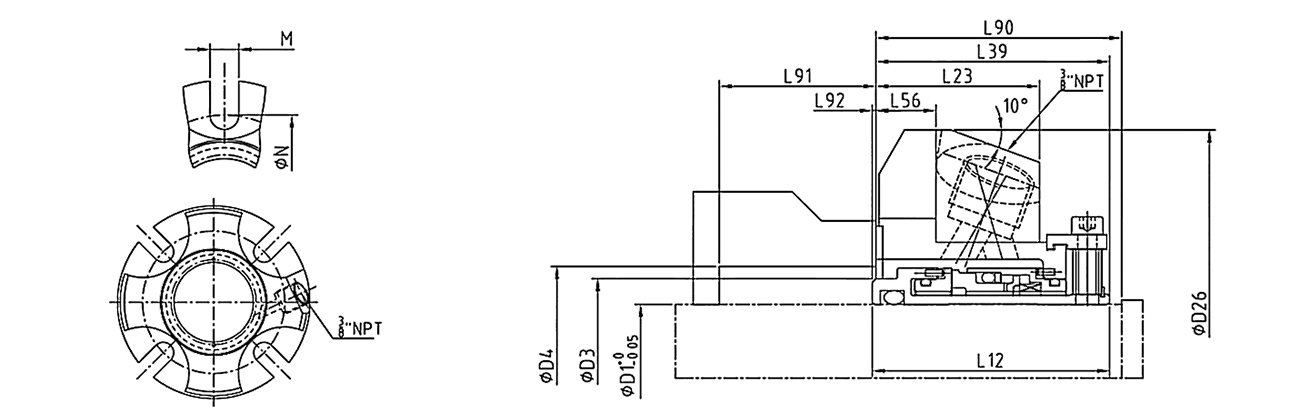

PZ47 Standard Bore installation view — PZ47 Standard Bore

PZ47 Standard Bore Dimensions (in) — full table

Size(in)	D1	D3	D4 Min	D4 Max	D26	L12	L23	L39	L56	L90	L91	L92	M	N
1.000	1.000	1.375	1.445	1.889	4.000	1.989	1.353	1.954	0.531	2.000	0.160	0.035	0.525	2.805
1.125	1.125	1.500	—	2.015	4.125	2.062	1.446	2.062	0.531	2.125	0.125	—	0.525	2.933
1.250	1.250	1.625	—	2.294	4.250	2.062	1.446	2.062	0.531	2.125	0.125	—	0.525	3.213
1.375	1.375	1.750	—	2.421	4.375	2.062	1.446	2.062	0.531	2.125	0.125	—	0.525	3.338
1.500	1.500	1.937	2.007	2.680	4.875	2.156	1.487	2.125	0.593	2.187	0.156	0.031	0.525	3.599
1.625	1.625	2.062	2.132	2.812	5.000	2.156	1.487	2.125	0.593	2.187	0.156	0.031	0.562	3.766
1.750	1.750	2.170	2.240	2.918	5.250	2.156	1.487	2.125	0.593	2.187	0.156	0.031	0.562	3.875
1.875	1.875	2.312	2.382	2.918	5.250	2.156	1.487	2.125	0.593	2.187	0.156	0.031	0.562	3.875
2.000	2.000	2.437	2.507	3.015	5.500	2.375	1.601	2.312	1.063	2.375	0.187	0.062	0.562	4.000
2.125	2.125	2.562	2.632	3.360	5.859	2.375	1.601	2.312	0.593	2.375	0.187	0.062	0.687	4.469
2.250	2.250	2.687	2.757	3.485	6.500	2.375	1.601	2.312	0.593	2.375	0.187	0.062	0.687	4.566
2.375	2.375	2.812	2.882	3.610	6.500	2.484	1.717	2.466	0.625	2.528	0.143	0.018	0.687	4.719
2.500	2.500	3.062	—	3.891	6.750	2.484	1.717	2.562	0.625	2.625	0.125	—	0.687	5.000
2.625	2.625	3.312	—	4.062	6.750	2.500	1.625	2.500	0.625	2.562	0.125	—	0.687	5.170
2.750	2.750	3.312	—	4.062	6.750	2.500	1.625	2.500	0.625	2.562	0.125	—	0.687	5.170
2.875	2.875	3.375	—	4.186	7.000	2.500	1.725	2.500	0.625	2.562	0.125	—	0.687	5.312
3.000	3.000	3.625	—	4.469	7.750	2.500	1.787	2.562	0.685	2.625	0.125	—	0.812	5.720
3.125	3.125	3.750	3.853	4.600	7.875	2.562	1.593	2.562	—	2.687	—	—	0.812	5.845
3.250	3.250	3.750	3.853	4.600	7.437	2.562	1.593	2.510	—	2.635	0.177	0.052	0.812	5.845
3.375	3.375	4.000	4.125	4.850	8.125	2.562	1.593	2.562	—	2.687	—	—	0.812	6.095
3.500	3.500	4.125	4.250	4.975	8.250	2.562	1.593	2.562	—	2.687	—	—	0.812	6.220
3.625	3.625	4.218	4.343	5.100	8.375	2.562	1.593	2.562	—	2.687	—	—	0.687	6.250
3.750	3.750	4.343	4.468	5.199	8.750	2.562	1.593	2.562	—	2.687	—	—	0.687	6.770
3.875	3.875	4.468	4.593	5.375	8.750	2.562	1.593	2.562	—	2.687	—	—	0.812	6.636
4.000	4.000	4.593	4.718	5.500	9.000	2.562	1.593	2.562	—	2.687	—	—	0.812	6.761
4.125	4.125	4.718	4.843	5.625	9.000	2.562	1.593	2.562	—	2.687	—	—	0.812	6.886
4.250	4.250	4.843	4.968	5.750	9.250	2.562	1.593	2.562	—	2.687	—	—	0.812	7.011
4.500	4.500	5.093	5.218	6.000	9.500	2.562	1.593	2.562	—	2.687	—	—	0.812	7.261
4.750	4.750	5.343	5.468	6.313	10.375	2.562	1.593	2.562	—	2.687	—	—	0.812	7.574
5.000	5.000	5.843	5.968	7.260	12.000	2.953	1.749	3.043	—	3.168	—	—	0.812	10.000
5.250	5.250	6.093	6.218	7.510	12.250	2.953	1.749	3.043	—	3.168	—	—	0.812	10.250
5.500	5.500	6.343	6.468	8.000	12.687	2.953	1.749	3.043	—	3.168	—	—	0.937	10.500

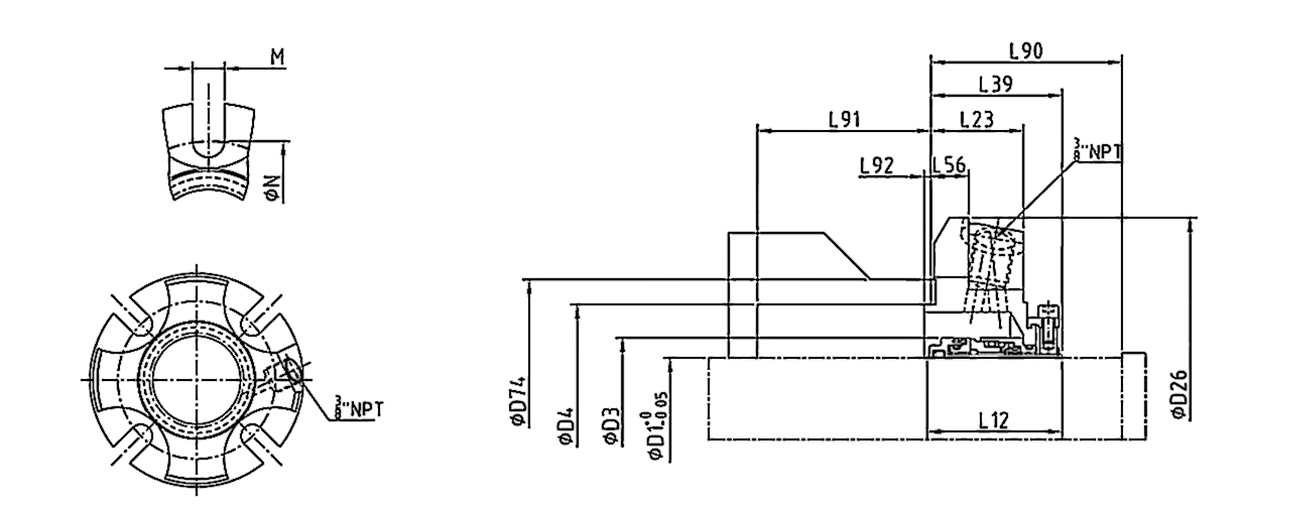

PZ47 Big Bore installation view — PZ47 Big Bore

PZ47 Big Bore Dimensions (in)

Size(in)	D1	D3	D4 Min	D4 Max	D26	L12	L23	L39	L56	L90	L91	L92	M	N	D74
1.375	1.375	1.750	2.875	3.023	5.375	2.062	1.446	2.062	0.625	2.125	0.250	0.125	0.562	4.062	3.398
1.750	1.750	2.170	3.500	3.925	6.500	2.156	1.487	2.125	0.656	2.187	0.250	0.125	0.687	5.093	4.300
1.875	1.875	2.312	3.625	3.734	6.500	2.156	1.316	1.954	0.485	2.017	0.327	0.202	0.687	5.093	4.109
2.125	2.125	2.562	3.625	4.250	7.156	2.375	1.570	2.282	0.749	2.407	0.219	0.094	0.687	5.687	4.625
2.500	2.500	3.062	3.875	5.078	8.000	2.484	1.697	2.407	0.749	2.625	0.204	0.079	0.687	6.062	5.453
2.625	2.625	3.312	4.625	4.740	8.000	2.500	1.617	2.329	0.578	2.454	0.296	0.171	0.687	6.062	5.115
2.750	2.750	3.312	4.750	4.875	8.000	2.500	1.697	2.407	0.656	2.532	0.218	0.093	0.687	6.062	5.250

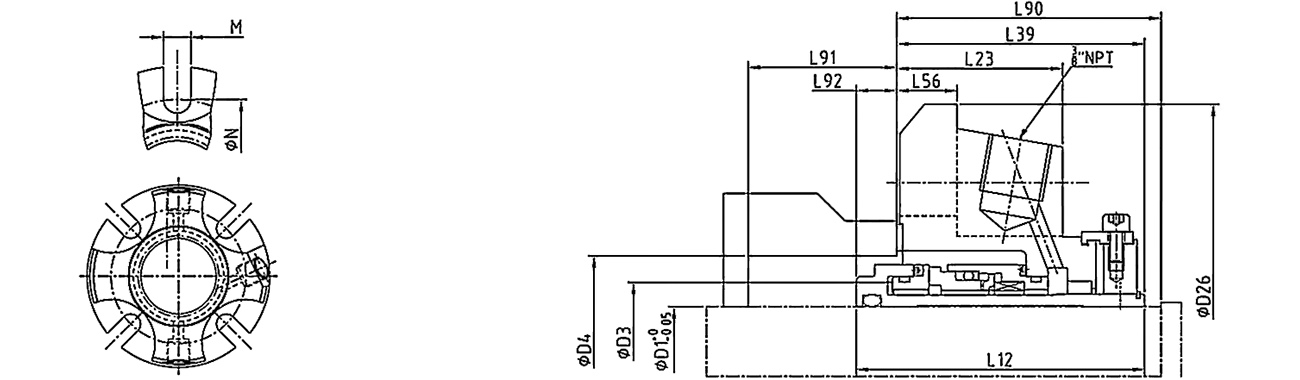

PZ47Q Standard Bore installation view — PZ47Q Standard Bore

PZ47Q Standard Bore Dimensions (in)

Size(in)	D1	D3	D4 Min	D4 Max	D26	L12	L23	L39	L56	L90	L91	L92	M	N
1.000	1.000	1.564	1.625	1.889	4.000	2.575	1.353	1.954	0.531	2.000	0.746	0.621	0.525	2.805
1.125	1.125	1.689	1.750	2.015	4.125	2.651	1.446	2.062	0.531	2.125	0.714	0.589	0.525	2.933
1.250	1.250	1.812	1.875	2.294	4.250	2.728	1.446	2.062	0.531	2.125	0.791	0.666	0.525	3.213
1.375	1.375	1.939	2.000	2.421	4.375	2.728	1.446	2.062	0.531	2.125	0.791	0.666	0.525	3.338
1.500	1.500	2.187	2.250	2.680	4.875	2.744	1.487	2.125	0.593	2.187	0.744	0.619	0.525	3.599
1.625	1.625	2.312	2.375	2.812	5.000	2.744	1.487	2.125	0.593	2.187	0.744	0.619	0.562	3.766
1.750	1.750	2.406	2.480	2.918	5.250	2.744	1.487	2.125	0.593	2.187	0.744	0.619	0.562	3.875
1.875	1.875	2.549	2.625	2.918	5.250	2.744	1.487	2.125	0.593	2.187	0.744	0.619	0.562	3.875
2.000	2.000	2.673	2.750	3.015	5.500	2.963	1.601	2.312	1.032	2.375	0.775	0.650	0.562	4.000
2.125	2.125	2.798	3.360	3.360	5.859	2.963	1.601	2.312	0.593	2.375	0.775	0.650	0.687	4.469
2.250	2.250	2.923	3.000	3.485	6.500	2.963	1.601	2.312	0.593	2.375	0.775	0.650	0.687	4.566
2.375	2.375	3.048	3.125	3.610	6.500	3.063	1.717	2.466	0.625	2.528	0.722	0.597	0.687	4.719
2.500	2.500	3.301	3.375	3.891	6.750	2.980	1.717	2.562	0.625	2.625	0.542	0.417	0.687	5.000
2.625	2.625	3.551	3.625	4.062	6.750	3.088	1.625	2.500	0.625	2.562	0.713	0.588	0.687	5.170
2.750	2.750	3.551	3.625	4.062	6.750	3.088	1.625	2.500	0.625	2.562	0.713	0.588	0.687	5.170
2.875	2.875	3.614	3.687	4.186	7.000	3.088	1.725	2.500	0.625	2.562	0.713	0.588	0.687	5.312
3.000	3.000	3.864	3.934	—	7.750	3.088	1.787	2.562	0.685	2.625	0.651	0.526	0.812	5.720
3.125	3.125	4.022	4.125	4.600	7.875	3.156	1.593	2.562	—	2.687	0.719	0.594	0.812	5.845
3.250	3.250	4.022	4.125	4.600	7.437	3.093	1.593	2.510	—	2.635	0.708	0.580	0.812	5.845
3.375	3.375	4.246	4.375	4.850	8.125	3.156	1.593	2.562	—	2.687	0.719	0.594	0.812	6.095
3.500	3.500	4.371	4.500	4.975	8.250	3.156	1.593	2.562	—	2.687	0.719	0.594	0.812	6.220
3.625	3.625	4.500	4.625	5.100	8.375	3.156	1.593	2.562	—	2.687	0.719	0.594	0.687	6.250
3.750	3.750	4.625	4.724	5.199	8.750	3.156	1.593	2.562	—	2.687	0.719	0.594	0.687	6.770
3.875	3.875	4.750	4.875	5.375	8.750	3.156	1.593	2.562	—	2.687	0.719	0.594	0.812	6.636
4.000	4.000	4.875	5.000	5.500	9.000	3.156	1.593	2.562	—	2.687	0.719	0.594	0.812	6.761
4.125	4.125	5.000	5.125	5.625	9.000	3.156	1.593	2.562	—	2.687	0.719	0.594	0.812	6.886
4.250	4.250	5.125	5.250	5.750	9.250	3.156	1.593	2.562	—	2.687	0.719	0.594	0.812	7.011
4.500	4.500	5.375	5.500	6.000	9.500	3.156	1.593	2.562	—	2.687	0.719	0.594	0.812	7.261
4.750	4.750	5.625	5.750	6.313	10.375	3.156	1.593	2.562	—	2.687	0.719	0.594	0.812	7.574
5.000	5.000	6.125	6.250	7.260	12.000	3.609	1.749	3.043	—	3.168	0.691	0.566	0.812	10.000
5.250	5.250	6.375	6.500	7.510	12.250	3.609	1.749	3.043	—	3.168	0.691	0.566	0.812	10.250
5.500	5.500	6.625	6.750	8.000	12.687	3.609	1.749	3.043	—	3.168	0.691	0.566	0.937	10.500

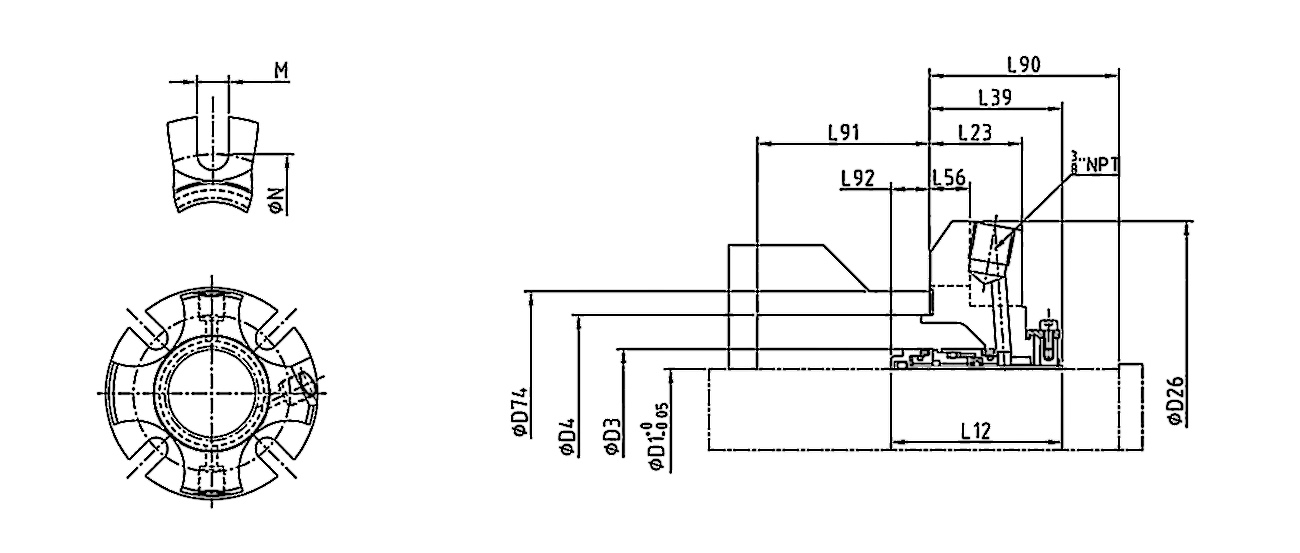

PZ47Q Big Bore installation view — PZ47Q Big Bore

PZ47Q Big Bore Dimensions (in)

Size(in)	D1	D3	D4 Min	D4 Max	D26	L12	L23	L39	L56	L90	L91	L92	M	N	D74
1.375	1.375	1.939	2.875	3.023	5.375	2.728	1.446	2.062	0.625	2.125	0.791	0.666	0.562	4.062	3.268
1.750	1.750	2.406	3.500	3.925	6.500	2.744	1.487	2.125	0.656	2.187	0.744	0.619	0.687	5.093	3.885
1.875	1.875	2.549	3.625	3.734	6.500	2.744	1.316	1.954	0.485	2.017	0.915	0.790	0.687	5.093	—
2.125	2.125	2.798	3.875	4.250	7.156	2.963	1.570	2.282	0.749	2.407	0.806	0.681	0.687	5.687	4.264
2.500	2.500	3.301	4.750	4.875	8.000	2.980	1.697	2.407	0.656	2.532	0.698	0.573	0.687	6.062	5.139
2.625	2.625	3.551	4.625	4.740	8.000	3.088	1.617	2.329	0.578	2.454	0.884	0.759	0.687	6.062	—
2.750	2.750	3.551	4.250	4.875	8.000	3.088	1.697	2.407	0.656	2.532	0.806	0.681	0.687	6.062	5.139

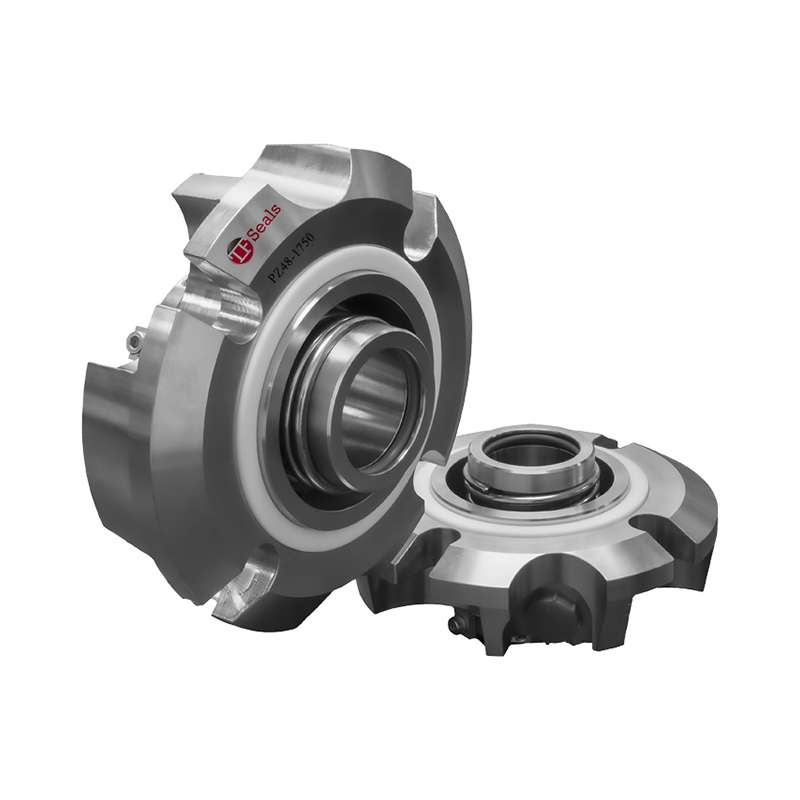

PZ48 / PZ48Q

The Type PZ48 single seal configuration utilizes the PB02 seal head assembly, integrated with universal cartridge adaptive hardware that automatically adjusts to accommodate excessive shaft end play, runout, primary ring seal face wear, and equipment tolerances — extending service life. PZ48Q adds a quench option via carbon ring throttle bush.

Design Features

Non-clogging single-coil spring
Reliable positive mechanical drive
Full convolution elastomer bellows
Fits ANSI B73.1M, ISO 3069, DIN 24960 chambers

Specifications

Temperature: -30°C to 205°C (-20°F to 400°F)
Pressure: up to 28 barg (400 psig)
Speed: up to 25 m/s (5,000 fpm)
Axial float/end play tolerance: 0.13mm (0.005")
Runout/squareness tolerance: 0.05mm (0.002")

— denotes a cell not populated in TF Seals' published spec sheet; confirm exact figure with Engineering for critical tolerances.

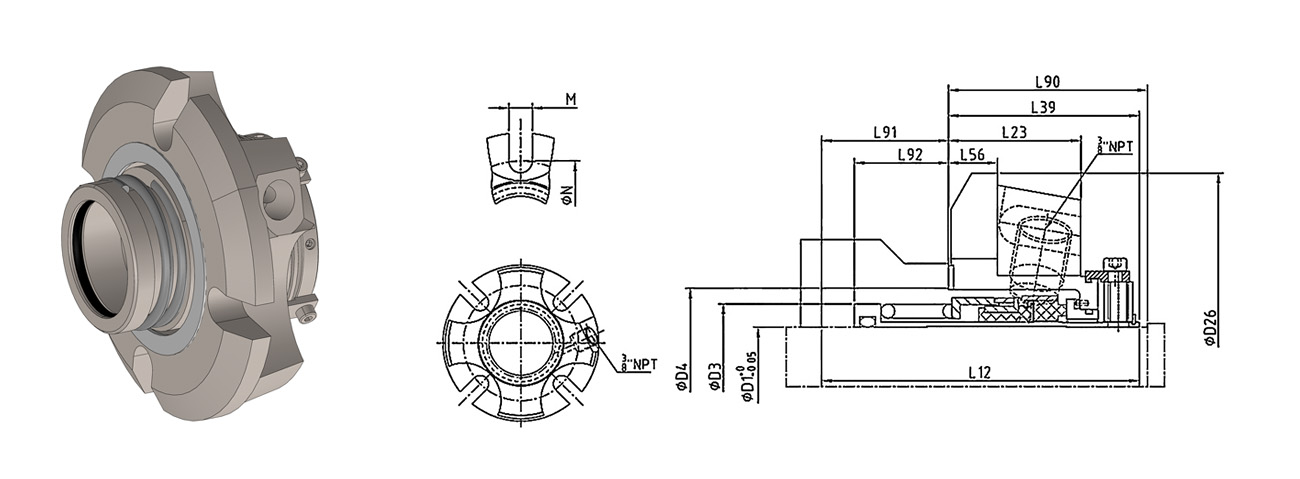

PZ48 Standard Bore installation view — PZ48 Standard Bore

PZ48 Standard Bore Dimensions (in) — full table

Size(in)	D1	D3	D4 Min	D4 Max	D26	L12	L23	L39	L56	L90	L91	L92	M	N
1	1	1.375	1.5	1.889	4	2.739	1.353	1.954	0.531	2	0.91	0.785	0.525	2.805
1.125	1.125	1.5	1.625	2.015	4.125	2.595	1.446	2.062	0.531	2.125	0.658	0.533	0.525	2.933
1.25	1.25	1.687	1.812	2.294	4.25	2.718	1.446	2.062	0.531	2.125	0.781	0.656	0.525	3.213
1.375	1.375	1.812	1.937	2.421	4.375	2.625	1.446	2.062	0.531	2.125	0.688	0.563	0.525	3.338
1.5	1.5	2	2.125	2.68	4.875	2.96	1.487	2.125	0.593	2.187	0.96	0.835	0.525	3.599
1.625	1.625	2.125	2.25	2.812	5	3.022	1.487	2.125	0.593	2.187	1.022	0.897	0.562	3.766
1.75	1.75	2.25	2.375	2.918	5.25	3.038	1.487	2.125	0.593	2.187	1.038	0.913	0.562	3.875
1.875	1.875	2.375	2.5	2.918	5.25	3.038	1.487	2.125	0.593	2.187	1.038	0.913	0.562	3.875
2	2	2.687	2.75	3.015	5.5	3.454	1.601	2.312	1.063	2.375	1.266	1.141	0.562	4
2.125	2.125	2.812	2.875	3.36	5.859	3.454	1.601	2.312	0.593	2.375	1.266	1.141	0.687	4.469
2.25	2.25	2.75	2.875	3.485	6.5	3.579	1.601	2.312	0.593	2.375	1.391	1.266	0.687	4.566
2.375	2.375	3.062	3.125	3.61	6.5	3.468	1.717	2.466	0.625	2.528	1.127	1.002	0.687	4.719
2.5	2.5	3.25	3.375	3.891	6.75	3.829	1.717	2.562	0.625	2.625	1.391	1.266	0.687	5
2.625	2.625	3.5	4.062	4.062	6.75	3.978	1.625	2.5	0.625	2.562	1.603	1.478	0.687	5.17
2.75	2.75	3.5	3.625	4.062	6.75	3.978	1.625	2.5	0.625	2.562	1.603	1.478	0.687	4.17
2.875	2.875	3.625	3.695	4.186	7	3.978	1.725	2.5	0.625	2.562	1.603	1.478	0.687	5.312
3	3	3.937	4	4.469	7.75	4.172	1.787	2.562	0.685	2.625	1.735	1.61	0.812	5.72
3.125	3.125	4.062	4.125	4.6	7.875	4.187	1.593	2.562	—	2.687	1.75	1.625	0.812	5.845
3.25	3.25	4.062	4.125	4.6	7.437	4.187	1.593	2.51	—	2.635	1.802	1.677	0.812	5.845
3.375	3.375	4.312	4.375	4.85	8.125	4.375	1.593	2.562	—	2.687	1.938	1.813	0.812	6.095
3.5	3.5	4.437	4.5	4.975	8.25	4.344	1.593	2.562	—	2.687	1.907	1.782	0.812	6.22
3.625	3.625	4.562	4.625	5.1	8.375	4.625	1.593	2.562	—	2.687	2.188	2.063	0.687	6.25
3.75	3.75	4.632	4.724	5.199	8.75	4.437	1.593	2.562	—	2.687	2	1.875	0.687	6.77
3.875	3.875	4.812	4.905	5.375	8.75	4.5	1.593	2.562	—	2.687	2.063	1.938	0.812	6.636
4	4	4.937	5.031	5.5	9	4.812	1.593	2.562	—	2.687	2.375	2.25	0.812	6.761

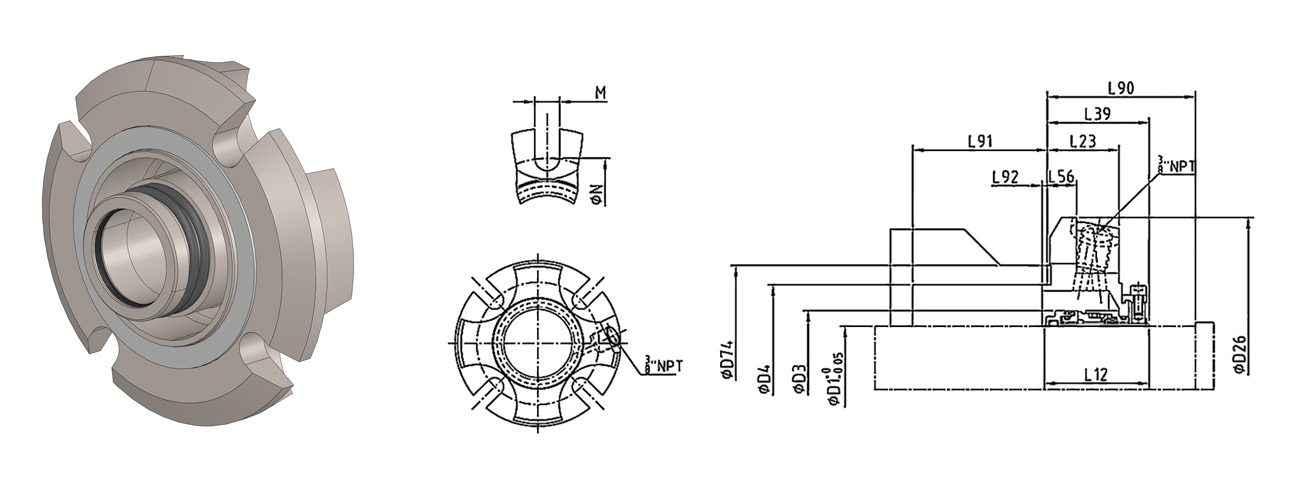

PZ48 Big Bore installation view — PZ48 Big Bore

PZ48 Big Bore Dimensions (in)

Size(in)	D1	D3	D4 Min	D4 Max	D26	L12	L23	L39	L56	L90	L91	L92	M	N
1.375	1.375	1.812	2.875	3.023	5.375	2.625	1.446	2.062	0.625	2.125	0.688	0.563	0.525	4.062
1.75	1.75	2.25	3.5	3.925	6.5	3.038	1.487	2.125	0.656	2.187	1.038	0.913	0.687	5.093
1.875	1.875	2.375	3.625	3.734	6.5	3.038	1.316	1.954	0.485	2.017	1.209	1.084	0.687	5.093
2.125	2.125	2.687	3.875	4.25	7.156	3.454	1.57	2.282	0.749	2.407	1.297	1.172	0.687	5.687
2.5	2.5	3.25	4.75	4.875	8	3.829	1.697	2.407	0.656	2.532	1.547	1.422	0.687	6.062
2.625	2.625	3.437	4.625	4.74	8	3.978	1.617	2.329	0.578	2.45	1.774	1.649	0.687	6.062
2.75	2.75	3.437	4.75	4.875	8	3.978	1.697	2.407	0.656	2.532	1.696	1.571	0.687	6.062

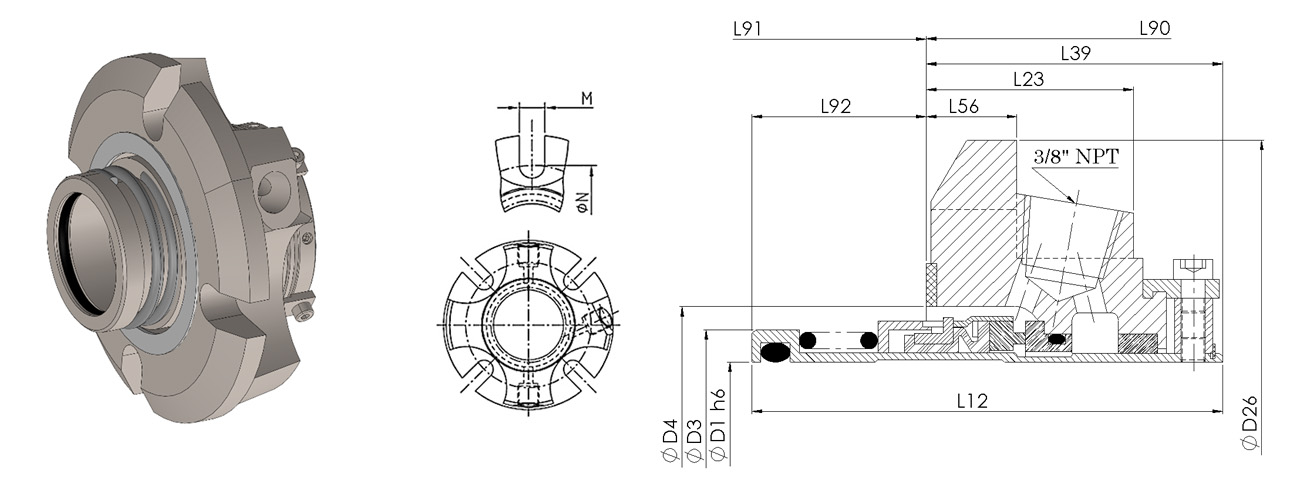

PZ48Q Standard Bore installation view — PZ48Q Standard Bore

PZ48Q Standard Bore Dimensions (in)

Size(in)	D1	D3	D4 Min	D4 Max	D26	L12	L23	L39	L56	L90	L91	L92	M	N
1	1	1.562	1.625	1.889	4	3.327	1.353	1.954	0.531	2	1.498	1.373	0.525	2.805
1.125	1.125	1.687	1.75	2.015	4.125	3.183	1.446	2.062	0.531	2.125	1.246	1.121	0.525	2.933
1.25	1.25	1.812	1.875	2.294	4.25	3.39	1.446	2.062	0.531	2.125	1.453	1.328	0.525	3.213
1.375	1.375	1.936	2	2.421	4.375	3.29	1.446	2.062	0.531	2.125	1.353	1.228	0.525	3.338
1.5	1.5	2.156	2.218	2.68	4.875	3.548	1.487	2.125	0.593	2.187	1.548	1.423	0.525	3.599
1.625	1.625	2.281	2.343	2.812	5	3.61	1.487	2.125	0.593	2.187	1.61	1.485	0.562	3.766
1.75	1.75	2.406	2.48	2.918	5.25	3.626	1.487	2.125	0.593	2.187	1.626	1.501	0.562	3.875
1.875	1.875	2.531	2.625	2.918	5.25	3.626	1.487	2.125	0.593	2.187	1.626	1.501	0.562	3.875
2	2	2.687	2.75	3.015	5.5	4.042	1.601	2.312	1.063	2.375	1.854	1.729	0.562	4
2.125	2.125	2.812	2.875	3.36	5.859	4.042	1.601	2.312	0.593	2.375	1.854	1.729	0.687	4.469
2.25	2.25	2.937	3	3.485	6.5	4.167	1.601	2.312	0.593	2.375	1.979	1.854	0.687	4.566
2.375	2.375	3.062	3.125	3.61	6.5	4.062	1.717	2.466	0.625	2.528	1.783	1.596	0.687	4.719
2.5	2.5	3.25	3.375	3.891	6.75	4.325	1.717	2.562	0.625	2.625	1.887	1.762	0.687	5
2.625	2.625	3.5	3.625	4.062	6.75	4.566	1.625	2.5	0.625	2.562	2.191	2.066	0.687	5.17
2.75	2.75	3.5	3.625	4.062	6.75	4.566	1.625	2.5	0.625	2.562	2.191	2.066	0.687	5.17
2.875	2.875	3.626	3.695	4.186	7	4.578	1.725	2.5	0.625	2.562	2.2	2.078	0.687	5.312
3	3	3.937	4	4.469	7.75	4.75	1.787	2.562	0.685	2.625	2.313	2.188	0.812	5.72
3.125	3.125	4.062	4.125	4.6	7.875	4.781	1.593	2.562	—	2.687	2.344	2.219	0.812	5.845
3.25	3.25	4.062	4.125	4.6	7.437	4.718	1.593	2.51	—	2.635	2.333	2.208	0.812	5.845
3.375	3.375	4.312	4.375	4.85	8.125	4.969	1.593	2.562	—	2.687	2.532	2.407	0.812	6.095
3.5	3.5	4.437	4.5	4.975	8.25	4.969	1.593	2.562	—	2.687	2.532	2.407	0.812	6.22
3.625	3.625	4.562	4.625	5.1	8.375	5.218	1.593	2.562	—	2.687	2.781	2.656	0.687	6.25
3.75	3.75	4.687	4.781	5.199	8.75	5.031	1.593	2.562	—	2.687	2.594	2.469	0.687	6.77
3.875	3.875	4.875	4.968	5.375	8.75	5.093	1.593	2.562	—	2.687	2.656	2.531	0.812	6.636
4	4	5.021	5.114	5.5	9	5.406	1.593	2.562	—	2.687	2.969	2.844	0.812	6.761

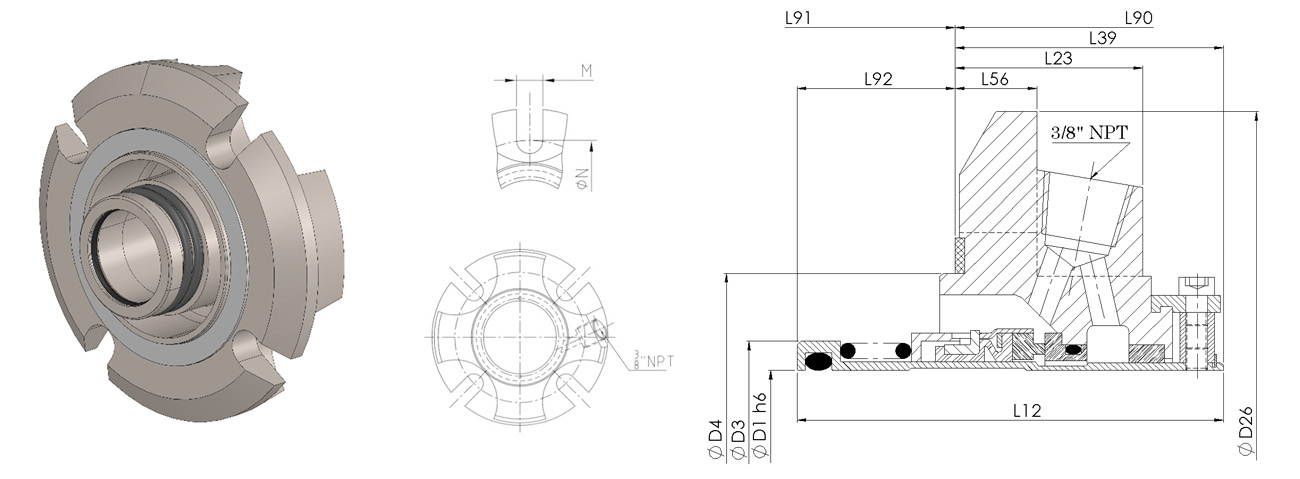

PZ48Q Big Bore installation view — PZ48Q Big Bore

PZ48Q Big Bore Dimensions (in)

Size(in)	D1	D3	D4 Min	D4 Max	D26	L12	L23	L39	L56	L90	L91	L92	M	N
1.375	1.375	1.939	2.875	3.023	5.375	3.29	1.446	2.062	0.625	2.125	1.353	1.228	0.562	4.062
1.75	1.75	2.406	3.5	3.925	6.5	3.626	1.487	2.125	0.656	2.187	1.626	1.501	0.687	5.093
1.875	1.875	2.53	3.625	3.734	6.5	3.626	1.316	1.954	0.485	2.017	1.797	1.672	0.687	5.093
2.125	2.125	2.812	3.875	4.25	7.156	4.042	1.57	2.282	0.749	2.407	1.885	1.76	0.687	5.687
2.5	2.5	3.25	4.75	4.875	8	4.325	1.697	2.407	0.656	2.532	2.043	1.918	0.687	6.062
2.625	2.625	3.625	4.625	4.74	8	4.566	1.617	2.329	0.578	2.454	2.362	2.237	0.687	6.062
2.75	2.75	3.55	4.75	4.875	8	4.566	1.697	2.407	0.656	2.532	2.284	2.159	0.687	6.062

Dual Cartridge Type

PZ47D

Dual seal arrangement with an elastomer O-ring dynamic secondary seal. Reverse-balanced primary and mating rings enable ID or OD pressurization, so the seal can run as either a tandem or double seal — OD pressurization of the outboard seal minimizes tensile stress, improves cooling, and aids air venting on vertical installs.

Design Features

Reversible seal head design
External non-clogging wave spring
ANSI B73.1M / ISO 3069 seal-chamber compatible
Primary ring optimized for enhanced reliability
Outboard seal drive without set screws
Tangential inlet/outlet pipe connections below 3.000"/75mm

Specifications

Temperature: -20°F to 400°F (-30°C to 205°C)
Pressure: up to 21 barg (300 psig) ≤75mm; 13 barg (200 psig) >75mm
Speed: up to 25 m/s (5,000 fpm)
Axial float/end play tolerance: 0.13mm (0.005")
Runout/squareness tolerance: 0.05mm (0.002")

— denotes a cell not populated in TF Seals' published spec sheet; confirm exact figure with Engineering for critical tolerances.

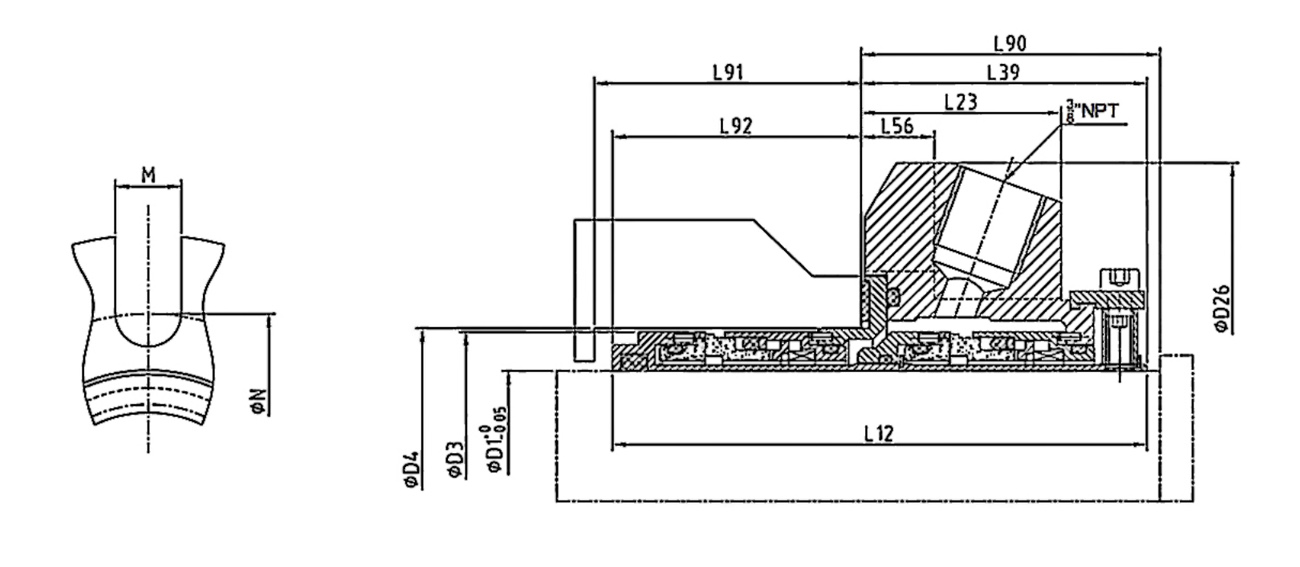

PZ47D Standard Bore installation view — PZ47D Standard Bore

PZ47D Standard Bore Dimensions (in) — full table

Size(in)	D1	D3	D4 Min	D4 Max	D26	L12	L23	L39	L56	L90	L91	L92	M	N
1.000	1.000	1.564	1.625	1.889	4.000	3.705	1.353	1.954	0.531	2.000	1.876	1.751	0.525	2.805
1.125	1.125	1.689	1.750	2.015	4.125	3.851	1.446	2.062	0.531	2.125	1.914	1.789	0.525	2.933
1.250	1.250	1.812	1.875	2.294	4.250	3.851	1.446	2.062	0.531	2.125	1.914	1.789	0.525	3.213
1.375	1.375	1.939	2.000	2.421	4.375	3.851	1.446	2.062	0.531	2.125	1.914	1.789	0.525	3.338
1.500	1.500	2.187	2.250	2.680	4.875	3.995	1.487	2.125	0.593	2.187	1.995	1.870	0.525	3.599
1.625	1.625	2.312	2.375	2.812	5.000	3.995	1.487	2.125	0.593	2.187	1.995	1.870	0.562	3.766
1.750	1.750	2.406	2.480	2.918	5.250	3.995	1.487	2.125	0.593	2.187	1.995	1.870	0.562	3.875
1.875	1.875	2.549	2.625	2.918	5.250	3.995	1.487	2.125	0.593	2.187	1.995	1.870	0.562	3.875
2.000	2.000	2.673	2.750	3.015	5.500	4.355	1.601	2.312	1.063	2.375	2.167	2.042	0.562	4.000
2.125	2.125	2.798	2.875	3.360	5.859	4.355	1.601	2.312	0.593	2.375	2.167	2.042	0.687	4.468
2.250	2.250	2.923	3.000	3.485	6.500	4.355	1.601	2.312	0.593	2.375	2.167	2.042	0.687	4.566
2.375	2.375	3.048	3.125	3.610	6.500	4.545	1.717	2.466	0.625	2.528	2.204	2.079	0.687	4.719
2.500	2.500	3.301	3.375	3.891	6.750	4.545	1.717	2.563	0.625	2.625	2.107	1.982	0.687	5.000
2.625	2.625	3.551	3.625	4.062	6.750	4.545	1.625	2.500	0.625	2.562	2.219	2.094	0.687	5.170
2.750	2.750	3.551	3.625	4.062	6.750	4.594	1.625	2.500	0.625	2.562	2.219	2.094	0.687	5.170
2.875	2.875	3.614	3.750	4.186	7.000	4.594	1.725	2.500	0.625	2.562	2.219	2.094	0.687	5.312
3.000	3.000	3.864	4.000	4.469	7.750	4.594	1.787	2.562	0.685	2.562	2.157	2.032	0.812	5.720
3.125	3.125	4.022	4.125	4.600	7.875	4.687	1.593	2.562	—	2.687	2.250	2.125	0.812	5.845
3.250	3.250	4.022	4.134	4.600	7.437	4.687	1.593	2.510	—	2.635	2.302	2.177	0.812	5.845
3.375	3.375	4.246	4.375	4.850	8.125	4.687	1.593	2.562	—	2.687	2.250	2.125	0.812	6.095
3.500	3.500	4.371	4.500	4.975	8.250	4.687	1.593	2.562	—	2.687	2.250	2.125	0.812	6.220
3.625	3.625	4.500	4.625	5.100	8.375	4.687	1.593	2.562	—	2.687	2.250	2.125	0.687	6.250
3.750	3.750	4.625	4.724	5.199	8.750	4.687	1.593	2.562	—	2.687	2.250	2.125	0.687	6.770
3.875	3.875	4.750	4.875	5.375	8.750	4.687	1.593	2.562	—	2.687	2.250	2.125	0.812	6.636
4.000	4.000	4.875	5.000	5.500	9.000	4.687	1.593	2.562	—	2.687	2.250	2.125	0.812	6.761
4.125	4.125	5.000	5.125	5.625	9.000	4.687	1.593	2.562	—	2.687	2.250	2.125	0.812	6.886
4.250	4.250	5.125	5.250	5.750	9.250	4.687	1.593	2.562	—	2.687	2.250	2.125	0.812	7.011
4.500	4.500	5.375	5.500	6.000	9.500	4.687	1.593	2.562	—	2.687	2.250	2.125	0.812	7.261
4.750	4.750	5.625	5.750	6.313	10.375	4.687	1.593	2.562	—	2.687	2.250	2.125	0.812	7.574
5.000	5.000	6.125	6.760	7.260	12.000	5.515	1.749	3.043	—	3.168	2.598	2.473	0.812	10.000
5.250	5.250	6.375	7.010	7.510	12.250	5.515	1.749	3.043	—	3.168	2.598	2.473	0.812	10.250
5.500	5.500	6.620	7.500	8.000	12.687	5.515	1.749	3.043	—	3.168	2.598	2.473	0.937	10.500

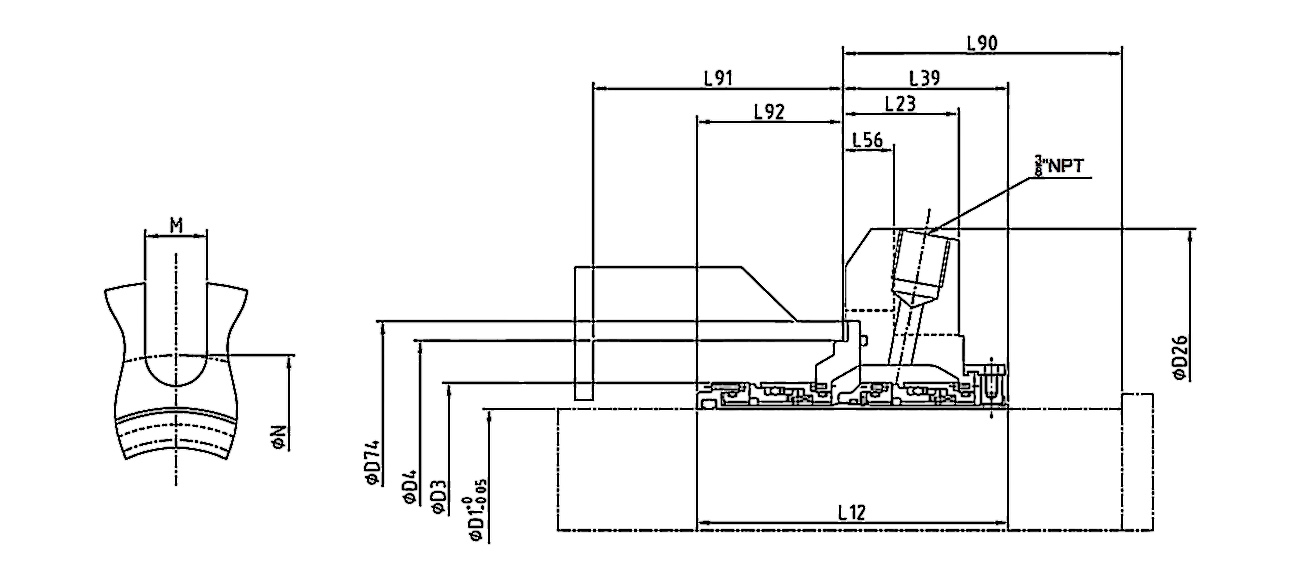

PZ47D Big Bore installation view — PZ47D Big Bore

PZ47D Big Bore Dimensions (in)

Size(in)	D1	D3	D4 Min	D4 Max	D26	L12	L23	L39	L56	L90	L91	L92	M	N	D74
1.375	1.375	1.939	2.875	3.023	5.375	3.851	1.446	2.062	0.625	2.125	1.914	1.789	0.562	4.062	3.398
1.750	1.750	2.406	3.500	3.925	6.500	3.995	1.487	2.125	0.656	2.187	1.995	1.870	0.687	5.093	4.300
1.875	1.875	2.549	3.625	3.734	6.500	3.995	1.487	2.125	0.656	2.187	1.995	1.870	0.687	5.093	4.109
2.125	2.125	2.798	3.875	4.250	7.156	4.355	1.570	2.282	0.749	2.407	2.198	2.073	0.687	5.687	4.625
2.500	2.500	3.301	4.750	4.875	8.000	4.545	1.697	2.407	0.656	2.532	2.263	2.138	0.687	6.062	5.250
2.625	2.625	3.551	4.625	4.740	8.000	4.594	1.788	2.500	0.749	2.562	2.219	2.094	0.687	6.062	5.115
2.750	2.750	3.551	4.750	4.875	8.000	4.594	1.697	2.407	0.656	2.532	2.312	2.187	0.687	6.062	5.250

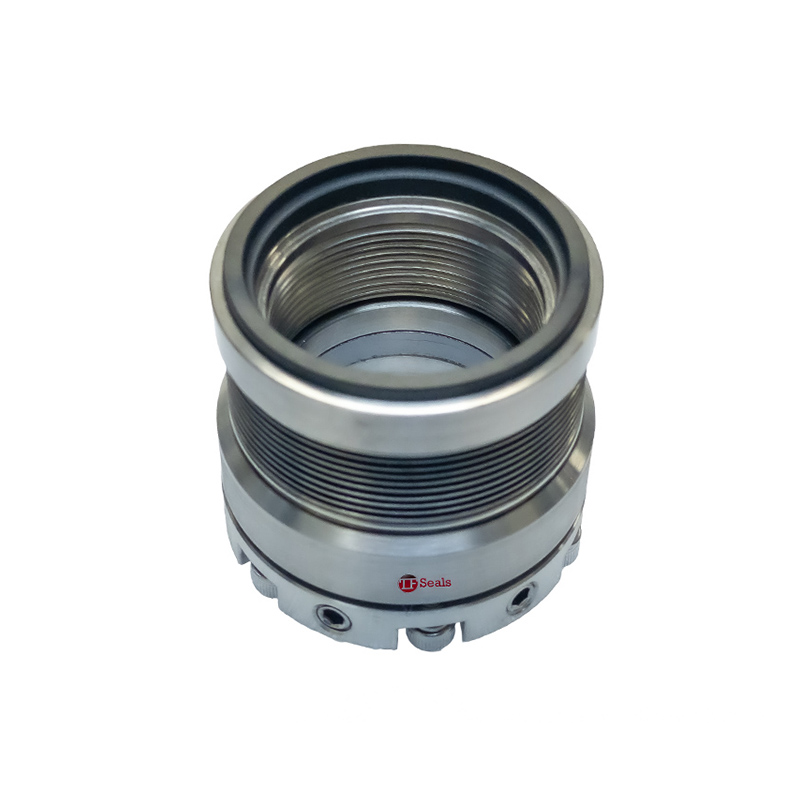

Metal Bellow Seals

4 models · Component / Single / Dual Cartridge

Component Type

PJ01 / PJ02

A high-temperature rotary bellows assembly designed with drive lugs positioned beneath the bellows for reliable, robust performance in demanding thermal service.

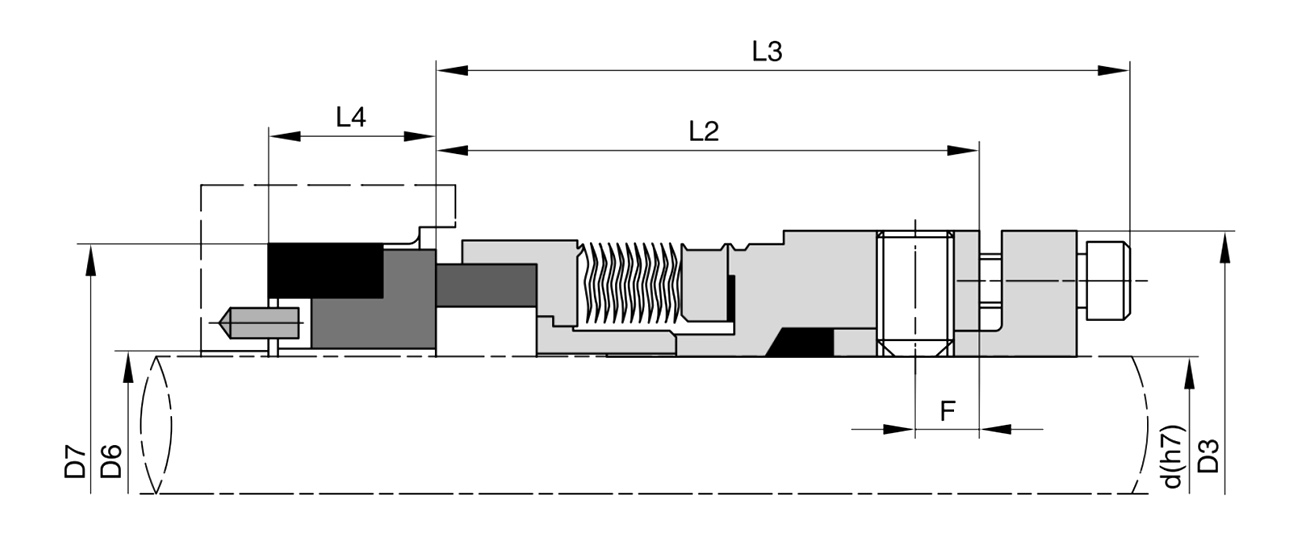

PJ01 installation view cross-section — PJ01 cross-section

PJ01 Dimensions (in)

d	D3	D6	D7	L3	F	L2	L4
0.750	1.625	0.776	1.375	2.312	0.188	1.687	0.406
0.875	1.750	0.902	1.500	2.343	0.188	1.719	0.406
1.000	1.875	1.028	1.625	2.343	0.188	1.719	0.437
1.125	2.000	1.154	1.750	2.375	0.188	1.750	0.437
1.250	2.125	1.276	1.875	2.375	0.188	1.750	0.437
1.500	2.375	1.528	2.125	2.500	0.250	1.875	0.437
1.750	2.625	1.791	2.500	2.531	0.250	1.906	0.500
2.000	2.875	2.043	2.750	2.562	0.250	1.937	0.500
2.250	3.250	2.291	3.125	2.750	0.250	2.000	0.563
2.500	3.500	2.543	3.375	2.781	0.250	2.031	0.563
2.750	3.812	2.791	3.500	3.000	0.281	2.250	0.626
3.000	4.125	3.043	3.875	3.000	0.281	2.250	0.626
3.500	4.625	3.543	4.375	3.000	0.281	2.250	0.780
3.750	4.875	3.791	4.625	3.000	0.281	2.250	0.780

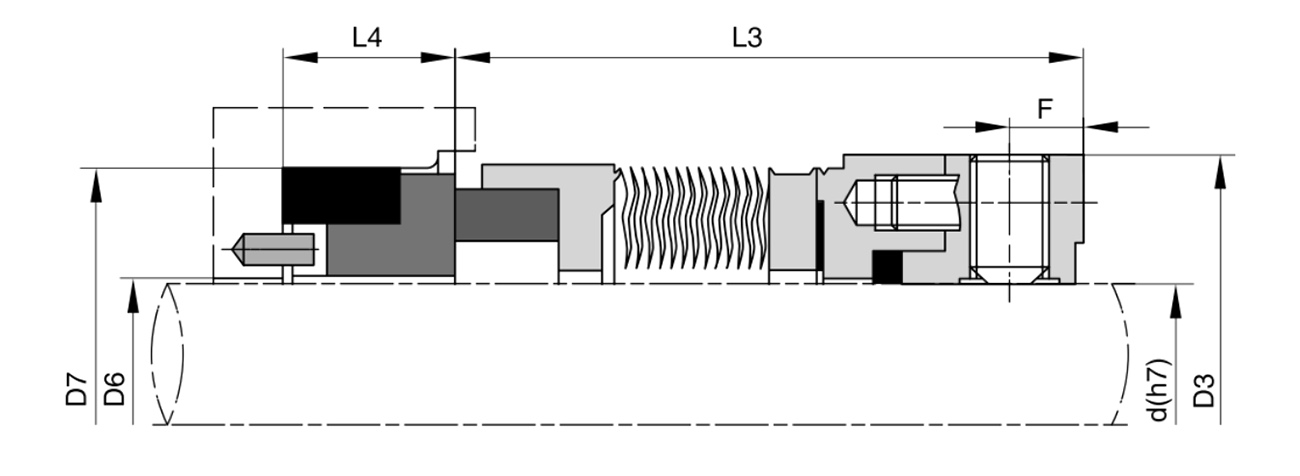

PJ02 installation view cross-section — PJ02 cross-section

PJ02 Dimensions (in)

Size(in)	D	D3	D6	D7	L3	L4	F
1.000	1.000	1.625	1.028	1.625	1.531	0.437	0.217
1.250	1.250	1.875	1.276	1.875	1.593	0.437	0.217
1.500	1.500	2.125	1.528	2.125	1.593	0.437	0.217
1.750	1.750	2.375	1.791	2.500	1.625	0.500	0.217
2.000	2.000	2.625	2.043	2.750	1.656	0.500	0.217
2.250	2.250	2.875	2.291	3.125	1.719	0.563	0.217
2.500	2.500	3.250	2.543	3.375	1.750	0.563	0.217
3.000	3.000	3.812	3.043	3.875	1.875	0.626	0.217
3.500	3.500	4.375	3.543	4.375	1.875	0.780	0.217
4.000	4.000	4.875	4.043	4.875	1.875	0.780	0.217

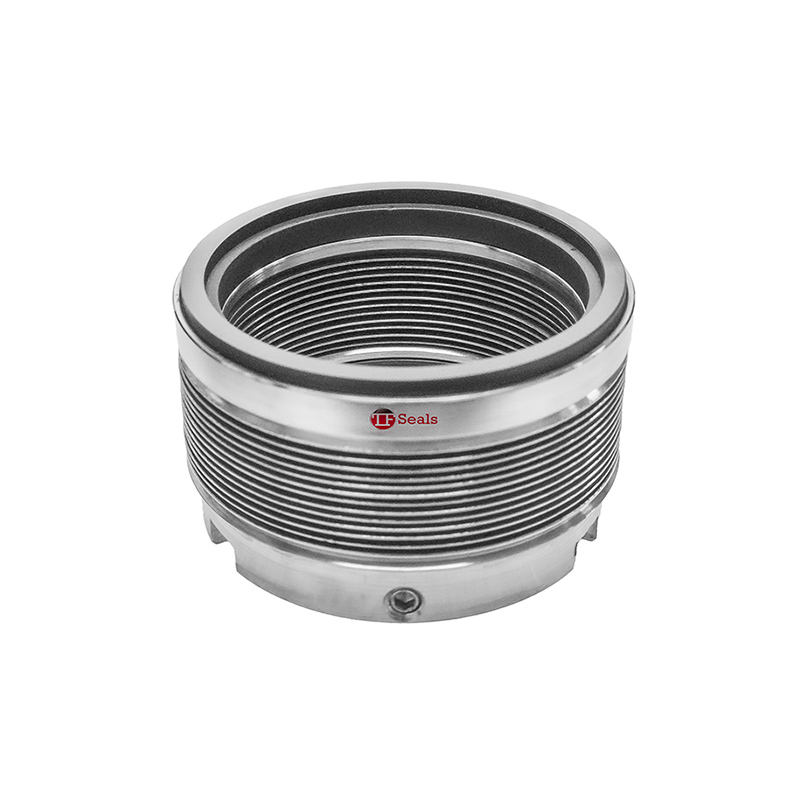

PJ05 / PJ06

Constructed entirely from Alloy C-276, providing high strength and excellent corrosion resistance — exceptionally durable in aggressive temperatures and corrosive fluids. PJ06 uses rotating Alloy-20 bellows for cost-effective, low-temperature corrosion resistance.

Design Features

Edge-welded metal bellows for flexibility & durability
Static secondary seal for reliable performance
Single or dual, shaft-mounted or cartridge configs
PJ05 complies with API 682

Specifications

Temperature: -75°C to +290°C (-100°F to +550°F)
Pressure: vacuum to 25 barg (360 psig)
Speed: up to 25 m/s (5,000 fpm)

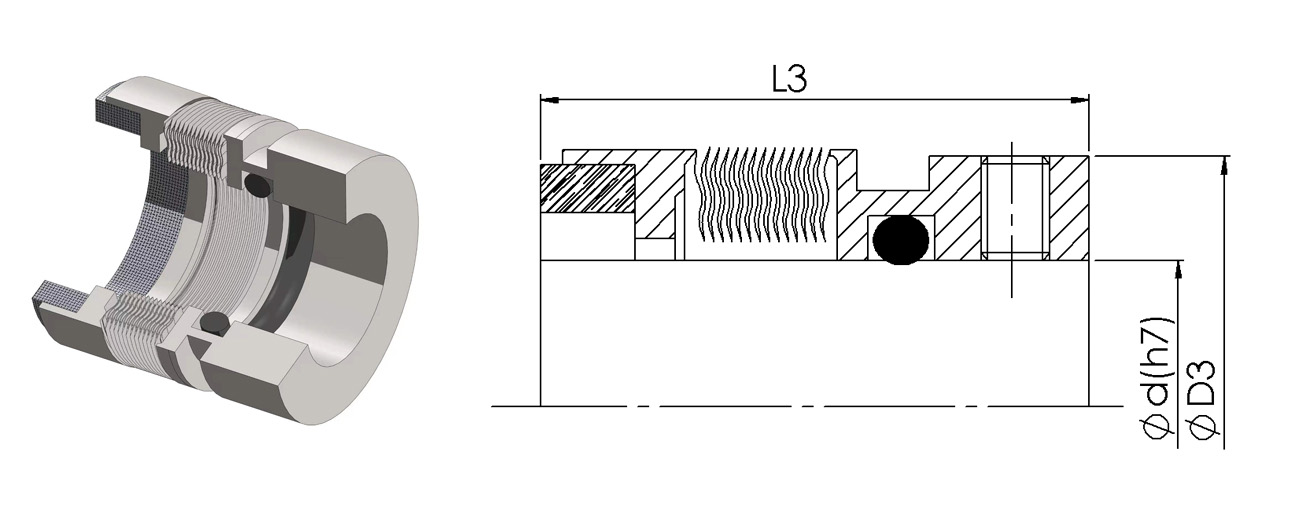

PJ06 installation view cross-section — PJ06 cross-section

PJ06 Dimensions

Size(in)	D3(in)	D3(mm)	L3(in)	L3(mm)
0.750	1.312	33.32	1.250	31.75
1.000	1.562	39.67	1.250	31.75
1.250	1.812	46.02	1.312	33.32
1.500	2.062	52.37	1.437	36.50
1.750	2.312	58.72	1.437	36.50
2.000	2.562	65.07	1.500	38.10
2.250	2.812	71.42	1.562	39.67
2.500	3.187	80.95	1.562	39.67
3.000	3.750	95.25	1.687	42.85
3.500	4.250	107.95	1.875	47.63
4.000	4.750	120.65	1.875	47.63
5.000	5.938	150.83	1.903	48.34
6.000	6.964	176.89	1.903	48.34
7.000	7.971	202.46	1.903	48.34

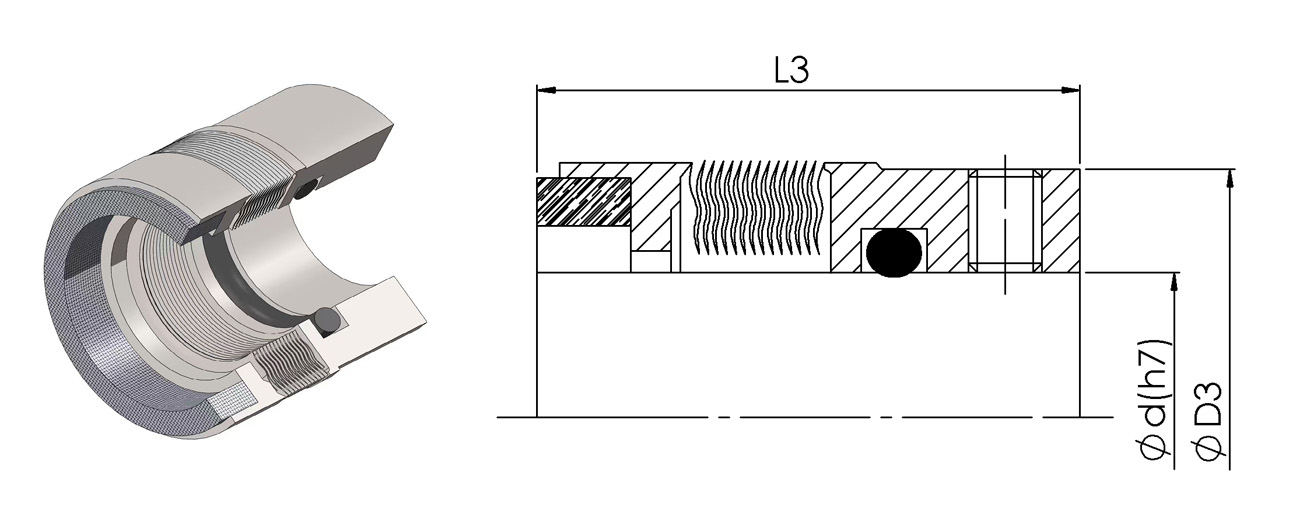

PJ05 installation view cross-section — PJ05 cross-section

Single Cartridge Type

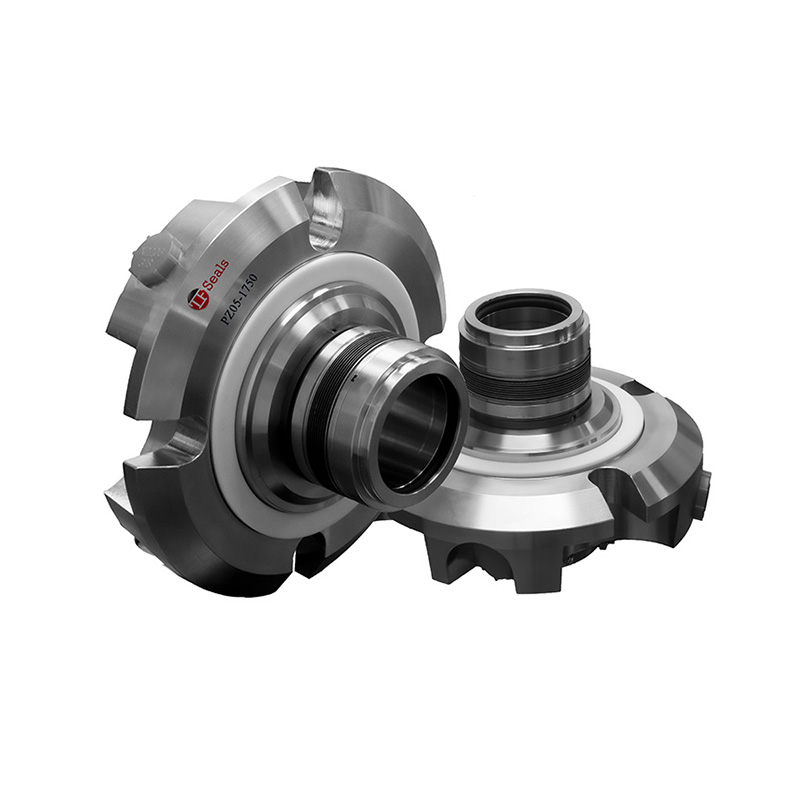

PZ05 / PZ05Q

Single seal arrangement featuring an edge-welded metal bellows seal head. The common seal head/mating ring set is reversible, allowing flexible right- or left-hand installation.

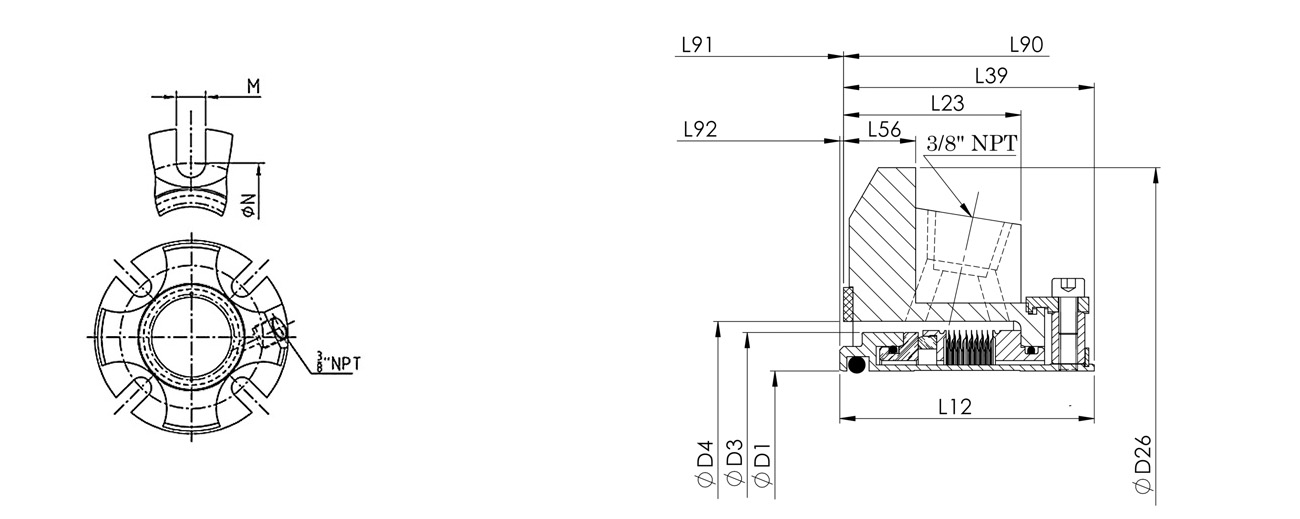

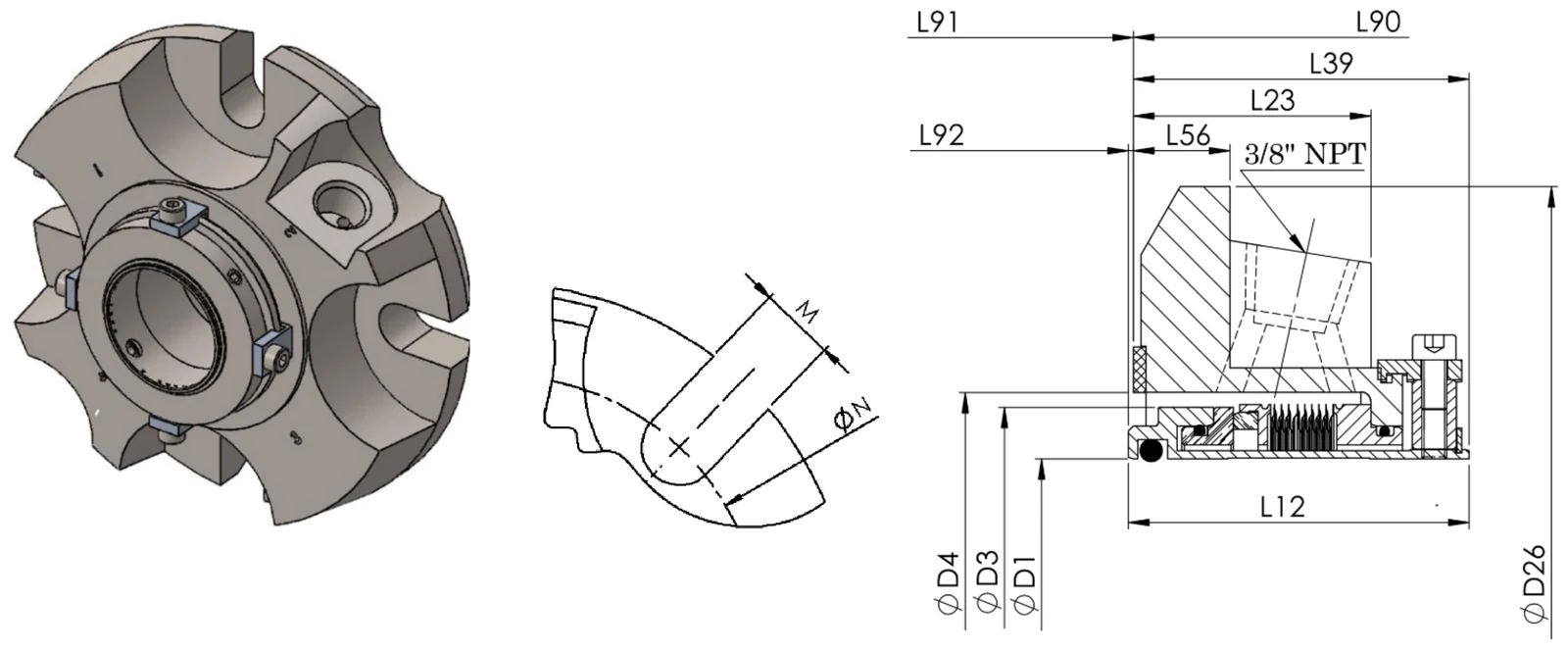

PZ05 Standard (in)

Size(in)	D1	D3	D4 Min	D4 Max	D26	L12	L23	L39	M	N
1.000	1.000	1.375	1.445	1.889	4.000	1.989	1.353	1.954	0.525	2.805
1.500	1.500	1.937	2.007	2.680	4.875	2.156	1.487	2.125	0.525	3.599
2.000	2.000	2.437	2.507	3.015	5.500	2.375	1.601	2.312	0.562	4.000
2.500	2.500	3.062	3.891	3.891	6.750	2.484	1.717	2.562	0.687	5.000
3.000	3.000	3.625	4.469	4.469	7.750	2.500	1.787	2.562	0.812	5.720
3.500	3.500	4.125	4.250	4.975	8.250	2.562	1.593	2.562	0.812	6.220
4.000	4.000	4.593	4.718	5.500	9.000	2.562	1.593	2.562	0.812	6.761

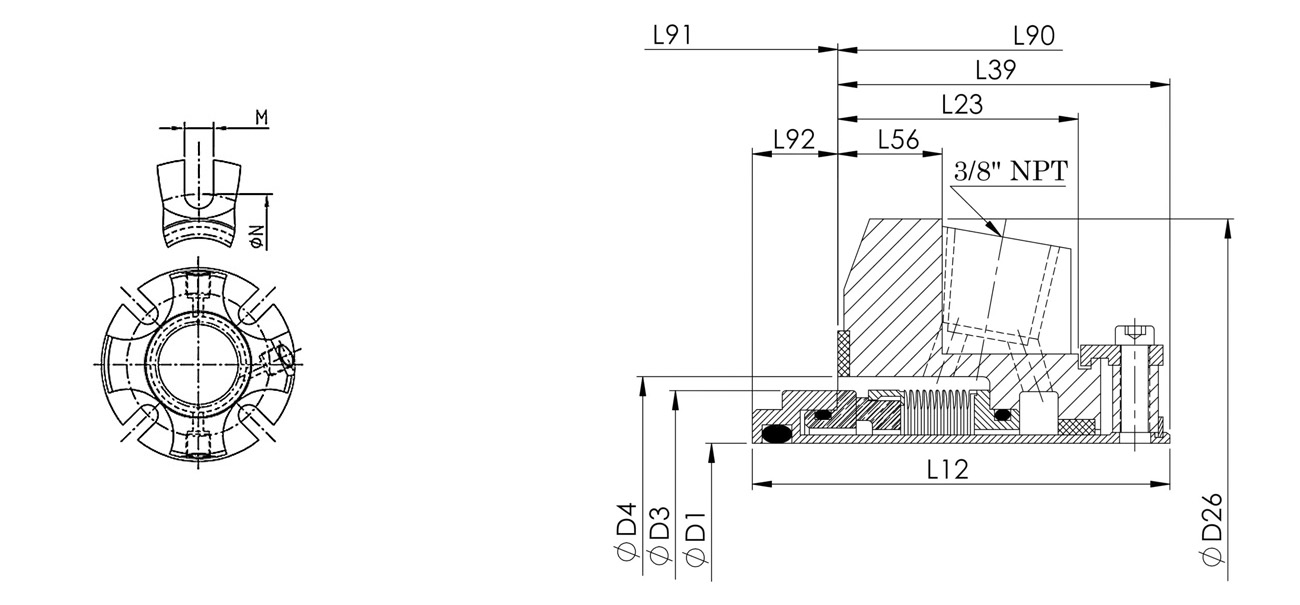

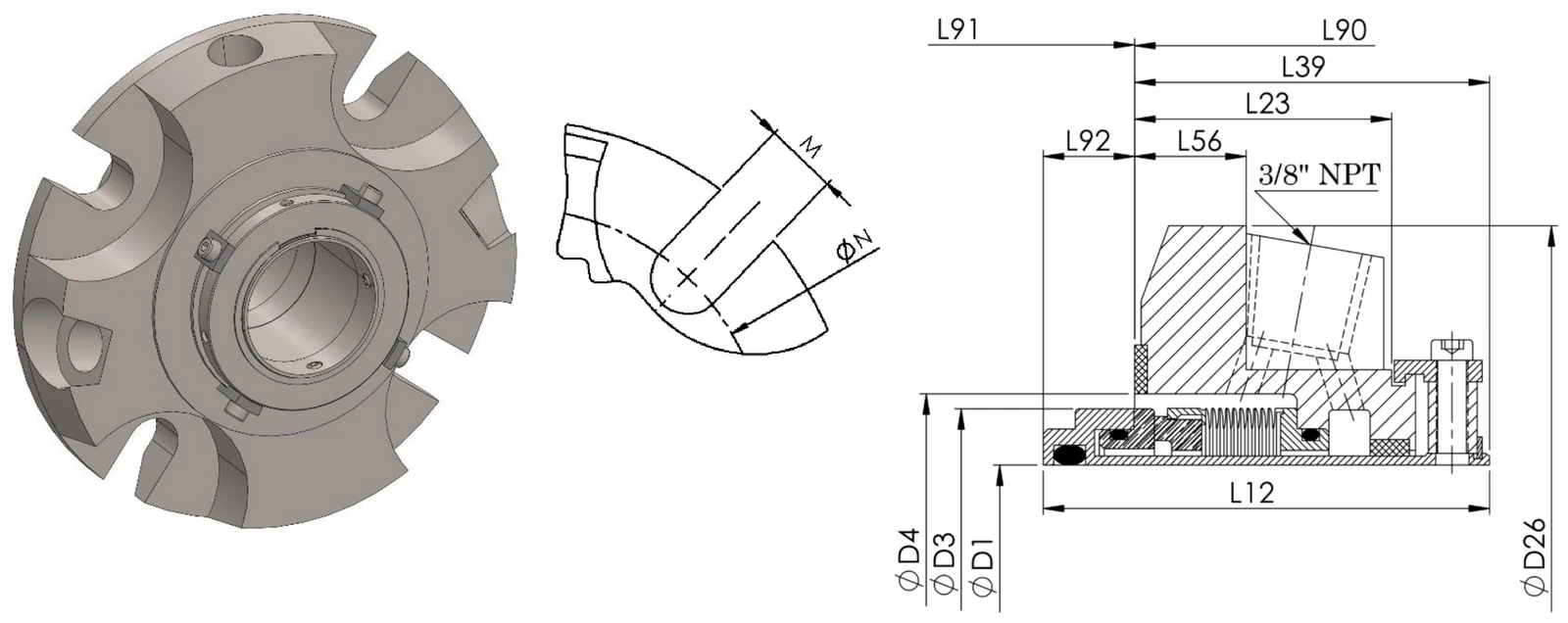

PZ05Q Standard (in)

Size(in)	D1	D3	D4 Min	D4 Max	D26	L12	L23	L39	M	N
1.000	1.000	1.564	1.625	1.889	4.000	2.575	1.353	1.954	0.525	2.805
1.500	1.500	2.187	2.250	2.680	4.875	2.744	1.487	2.125	0.525	3.599
2.000	2.000	2.687	2.750	3.015	5.500	2.963	1.601	2.312	0.562	4.000
2.500	2.500	3.301	3.375	3.891	6.750	2.980	1.717	2.563	0.687	5.000
3.000	3.000	3.937	4.000	4.469	7.750	3.088	1.787	2.562	0.812	5.720
3.500	3.500	4.125	4.250	4.975	8.250	3.156	1.593	2.562	0.812	6.220
4.000	4.000	4.593	4.718	5.500	9.000	3.156	1.593	2.562	0.812	6.761

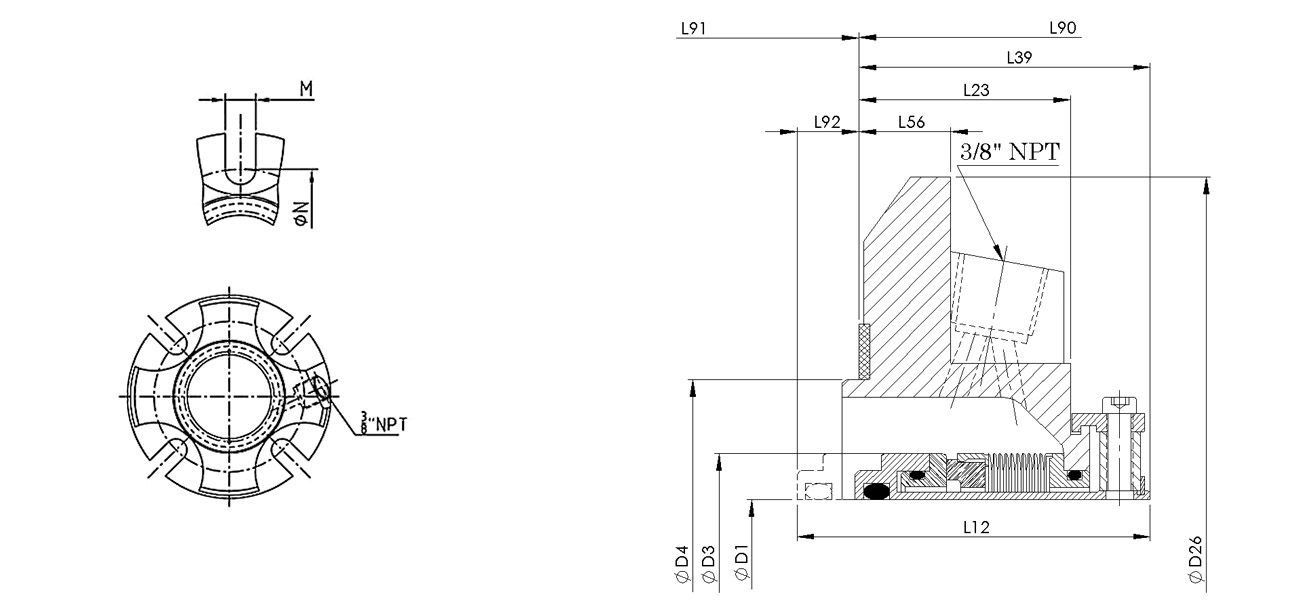

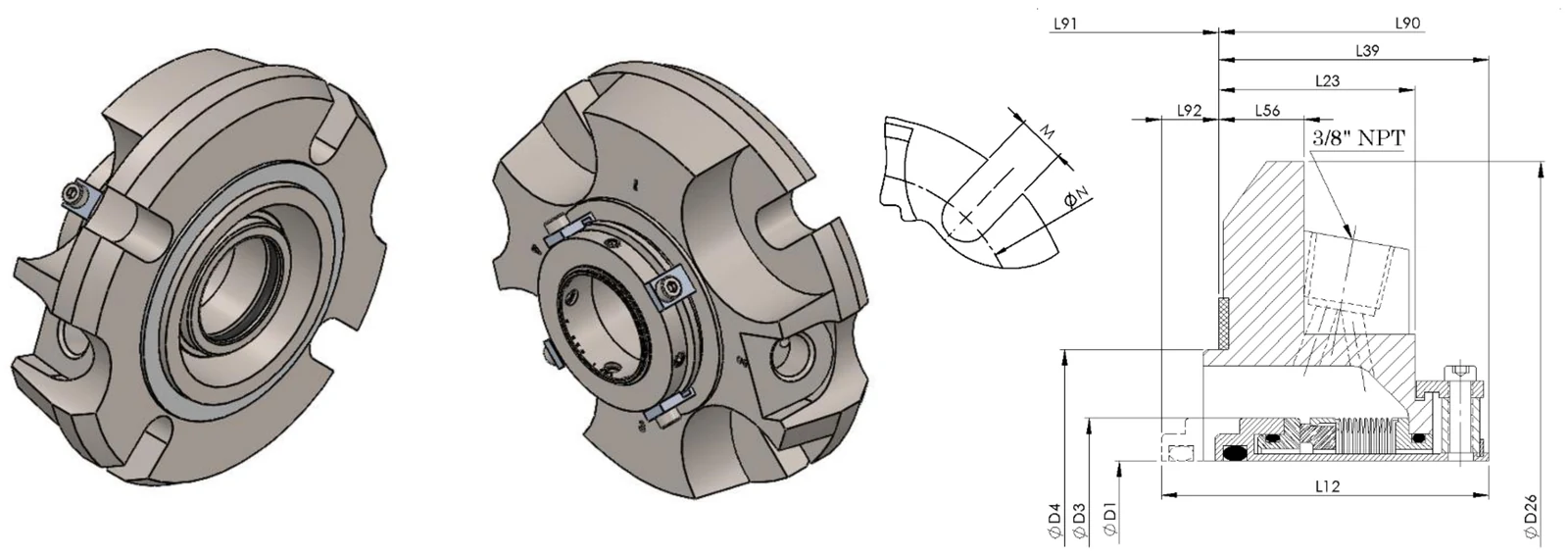

PZ05 Big Bore (in)

Size(in)	D1	D3	D4 Min	D4 Max	D26	L12	L23	L39	M	N
1.375	1.375	1.750	2.875	3.023	5.375	2.062	1.446	2.062	0.562	4.062
1.750	1.750	2.170	3.500	3.925	6.500	2.156	1.487	2.125	0.687	5.093
2.125	2.125	2.562	3.875	4.250	7.156	2.375	1.570	2.282	0.687	5.687
2.500	2.500	3.062	4.750	5.078	8.000	2.484	1.697	2.407	0.687	6.062

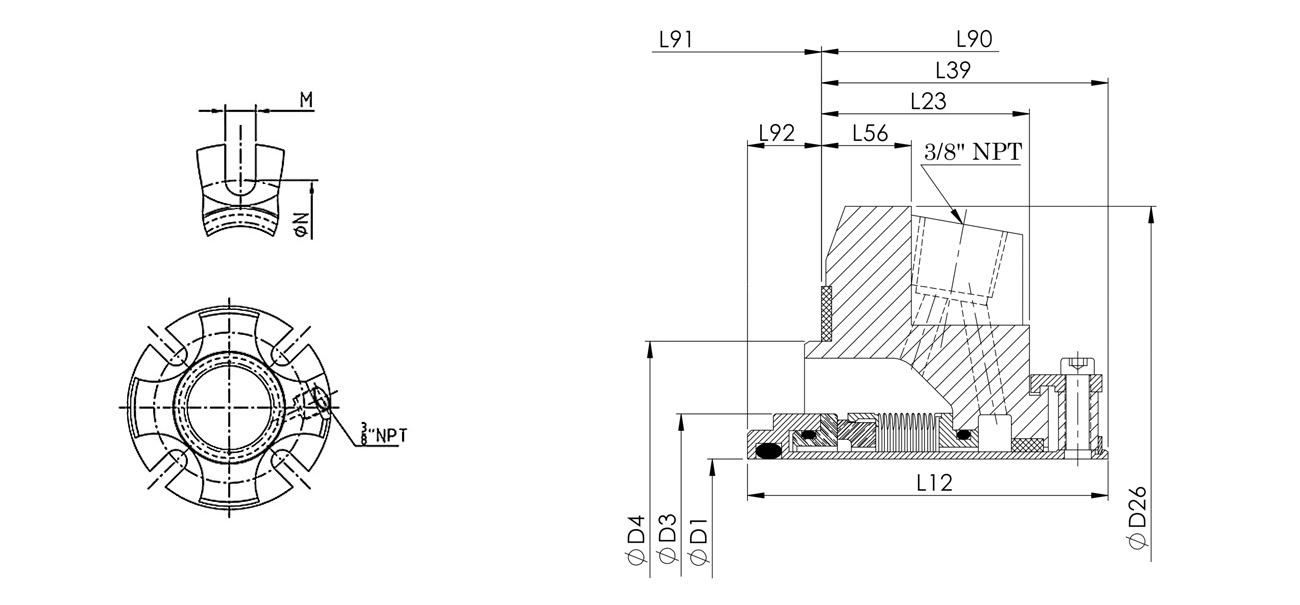

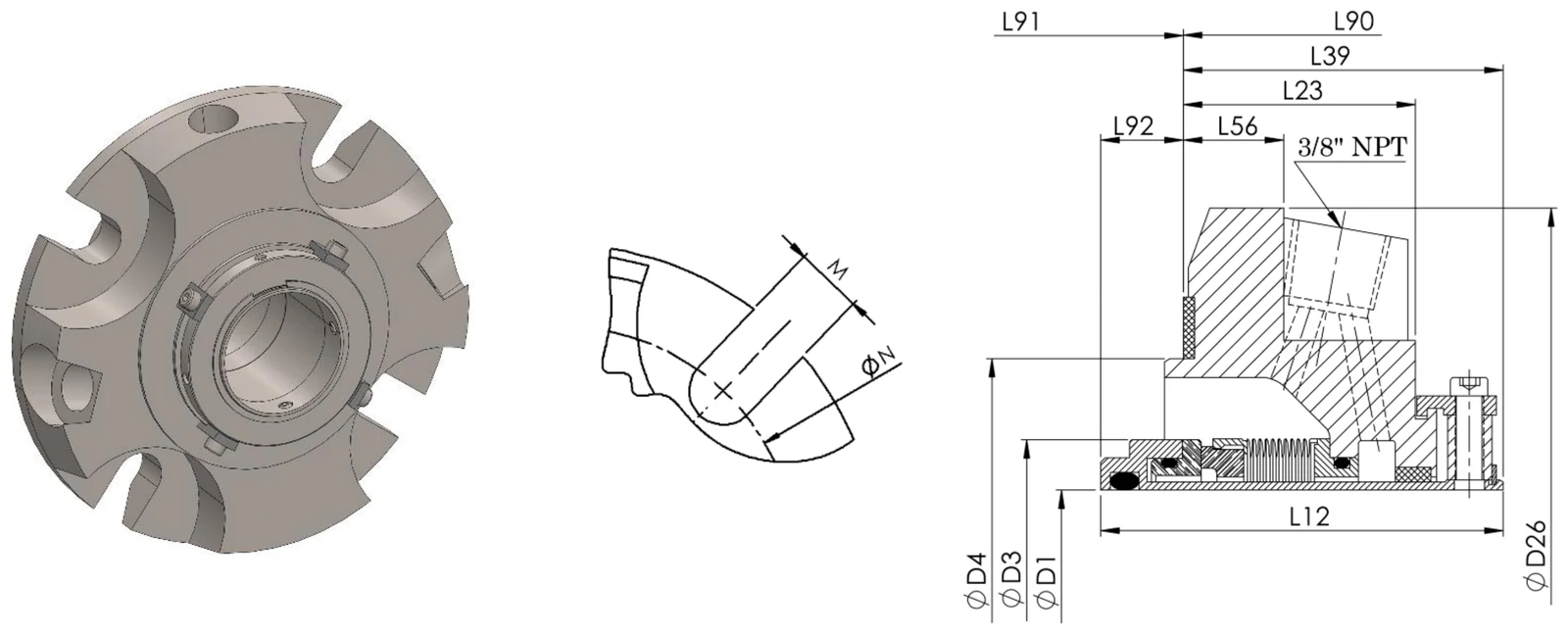

PZ05Q Big Bore (in)

Size(in)	D1	D3	D4 Min	D4 Max	D26	L12	L23	L39	M	N
1.375	1.375	1.939	2.875	3.023	5.375	2.728	1.446	2.062	0.562	4.062
1.750	1.750	2.406	3.500	3.925	6.500	2.744	1.487	2.125	0.687	5.093
2.125	2.125	2.798	3.875	4.250	7.156	2.963	1.570	2.282	0.687	5.687
2.500	2.500	3.301	4.750	4.875	8.000	2.980	1.697	2.407	0.687	6.062

Dual Cartridge Type

PZ05D

Incorporates an edge-welded metal bellows seal head; the PZ05D and PZ05DP dual seal configurations are reverse-balanced on both the primary and mating rings — for process fluids incompatible with common elastomers.

Design Features

Reversible seal heads
Tangential inlet/outlet pipe connections
Meets ANSI B73.1M & DIN 24960 standards
Outboard seal drive without set screws

Specifications

Temperature: -29°C to 204°C (-20°F to 400°F)
Pressure: 21 barg (300 psig)
Speed: up to 25 m/s (5,000 fpm)

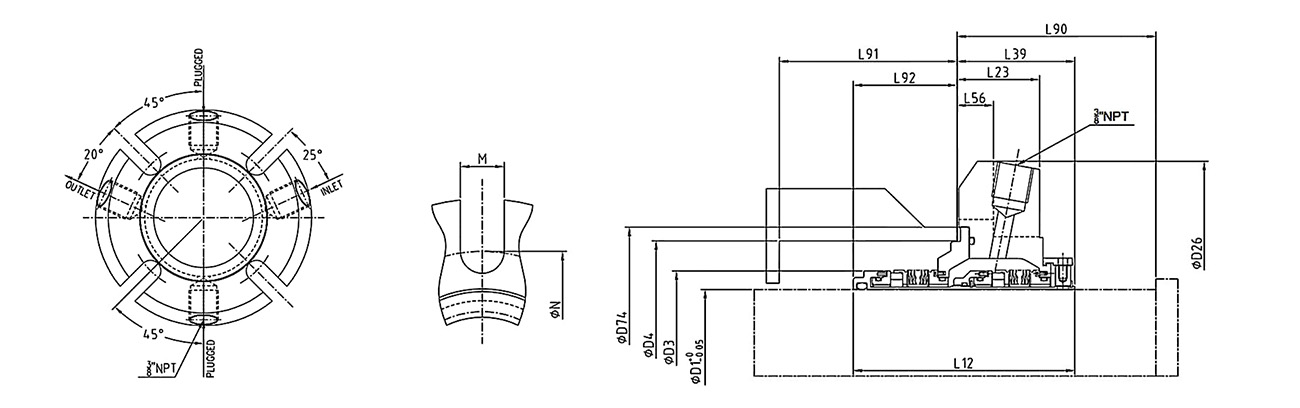

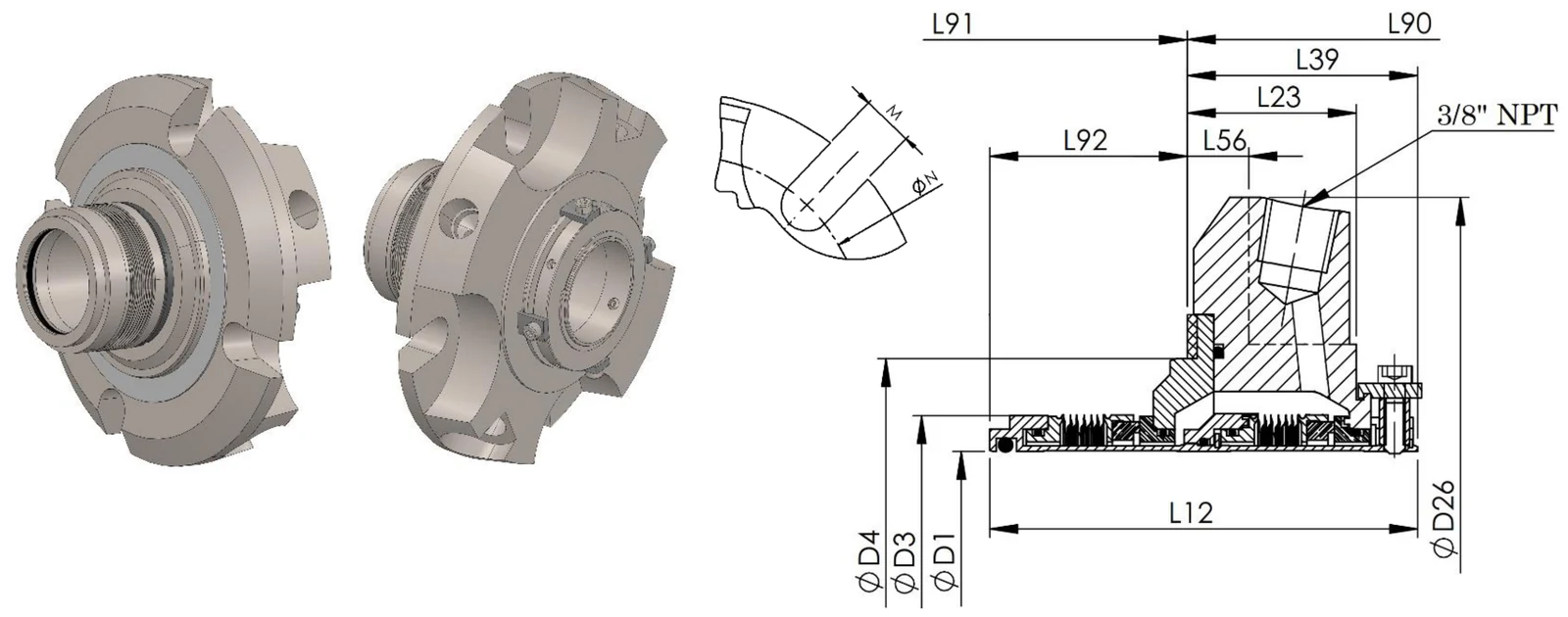

PZ05D Big Bore installation view — PZ05D Big Bore

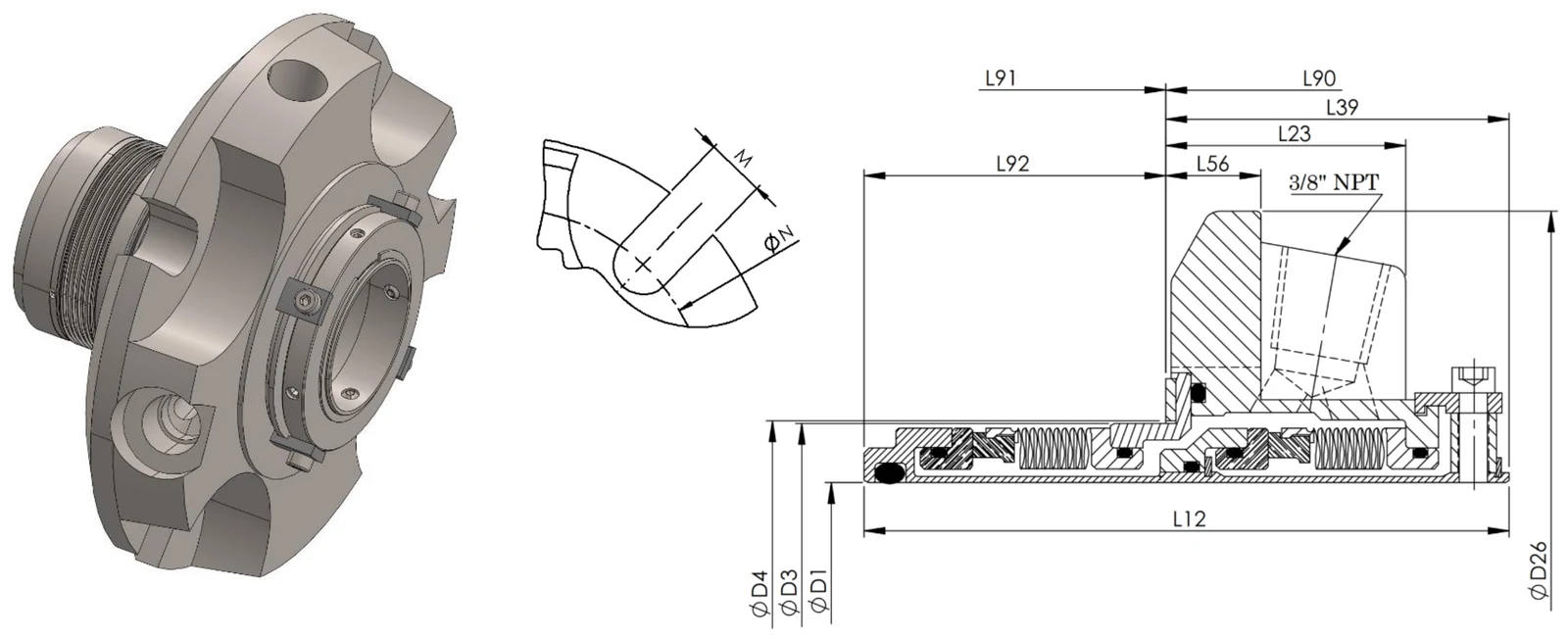

PZ05D Standard Dimensions (in) — representative sizes

Size(in)	D1	D3	D26	L12	L23	L39	M	N
1.000	1.000	1.564	4.000	3.705	1.353	1.954	0.525	2.805
1.250	1.250	1.812	4.250	3.851	1.446	2.062	0.525	3.213
1.500	1.500	2.187	4.875	3.995	1.487	2.125	0.525	3.599
2.000	2.000	2.687	5.500	4.355	1.601	2.312	0.562	4.000
2.500	2.500	3.312	6.750	4.545	1.717	2.563	0.687	5.000
3.000	3.000	3.937	7.750	4.594	1.787	2.562	0.812	5.720
3.500	3.500	4.371	8.250	4.687	1.593	2.562	0.812	6.220
4.000	4.000	4.875	9.000	4.687	1.593	2.562	0.812	6.761

Mixer / Vessel Seals

4 models · OEM-Matched to FGD Tower Equipment

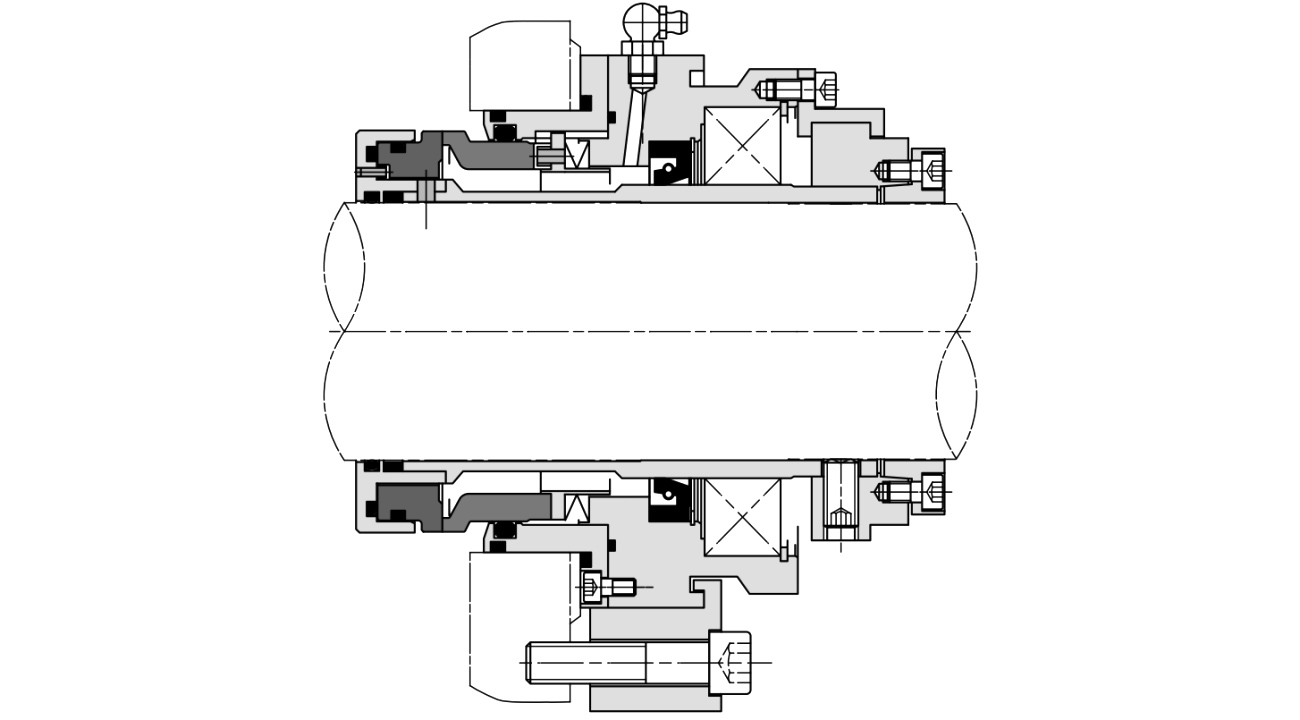

Sharpe Mixer Seal PT05-1 installation view

Sharpe — PT05-1

Engineered for SHARPE mixers used in flue-gas desulfurization (FGD) towers at coal-burning power plants. Available sizes: 2.438" and 2.938".

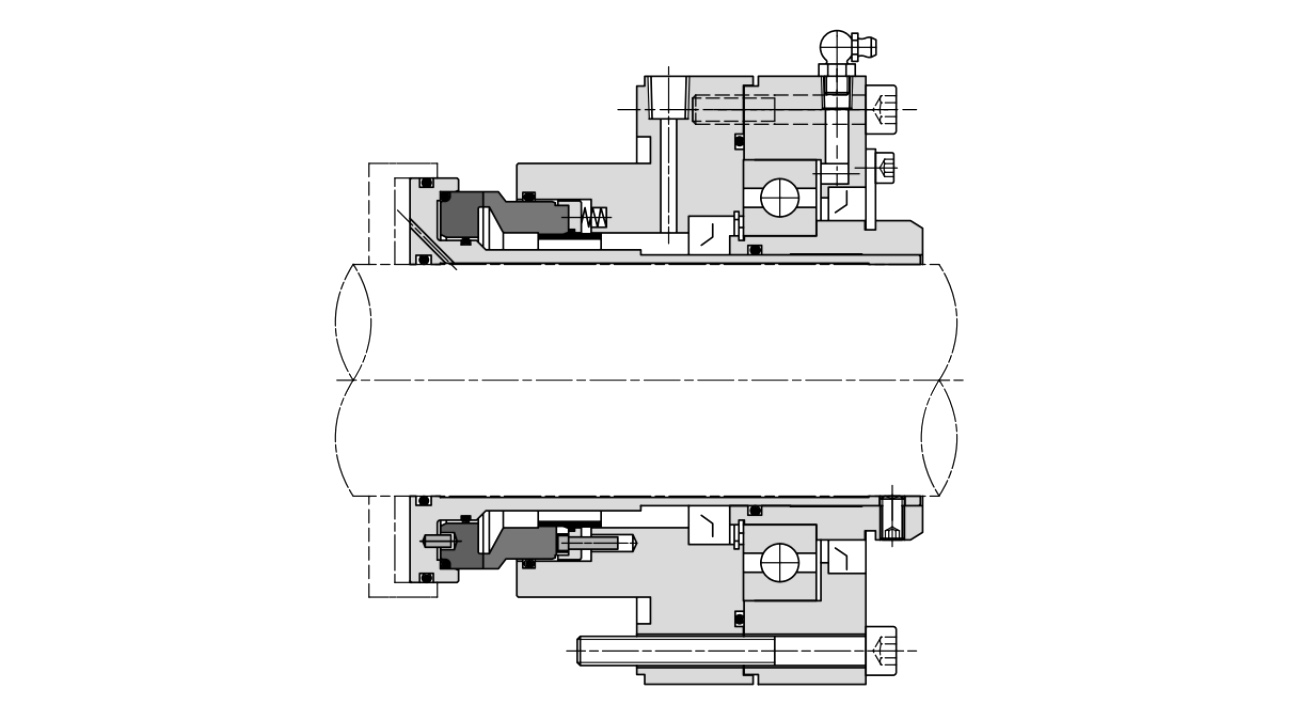

Chemineer Mixer Seal PT05-2 installation view

Chemineer — PT05-2

Engineered for Chemineer mixers used in FGD towers at coal-burning power plants. Available sizes: 3.00" and 3.50".

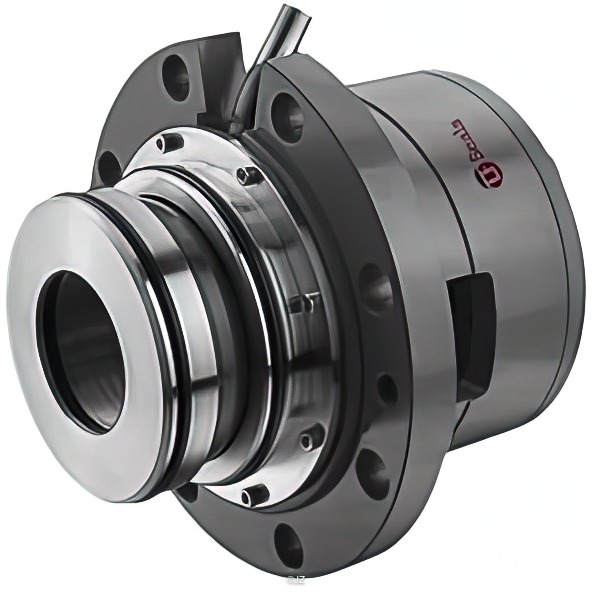

EKATO — PT05-3

Engineered for EKATO mixers used in FGD towers at coal-burning power plants. Available sizes: 60mm, 80mm, 100mm.

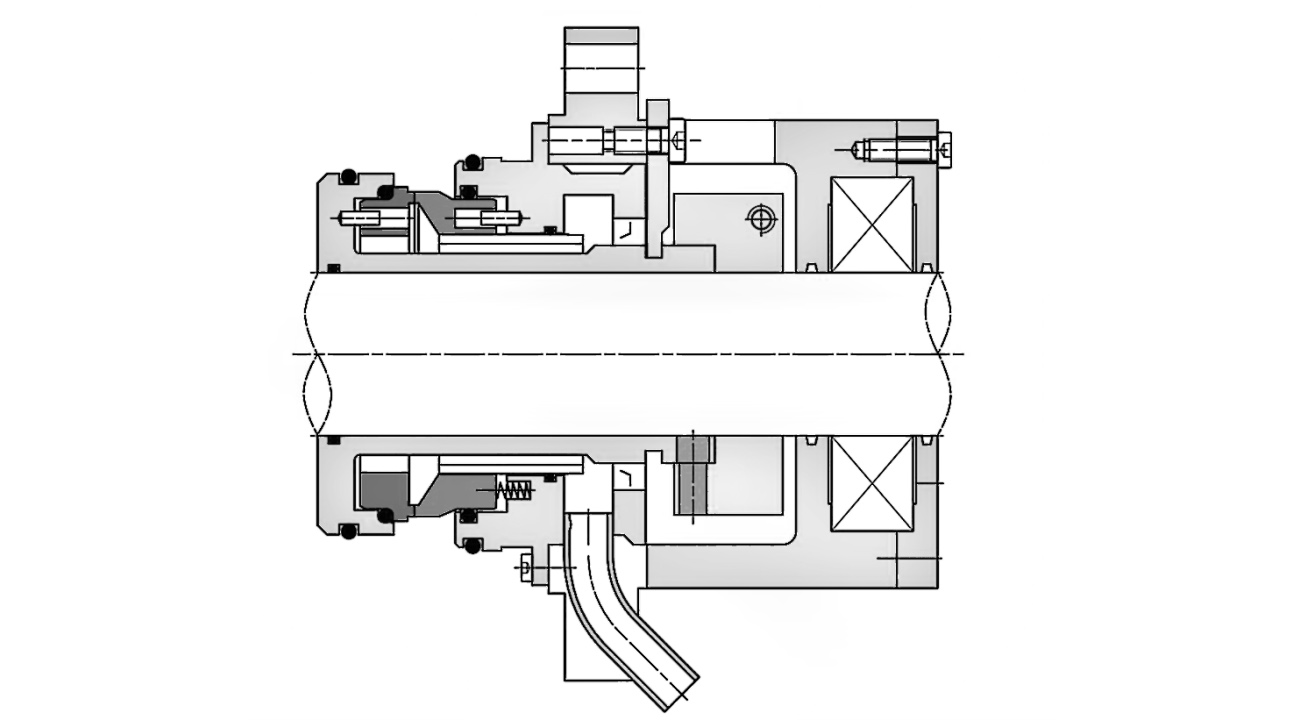

EKATO installation view — EKATO cross-section

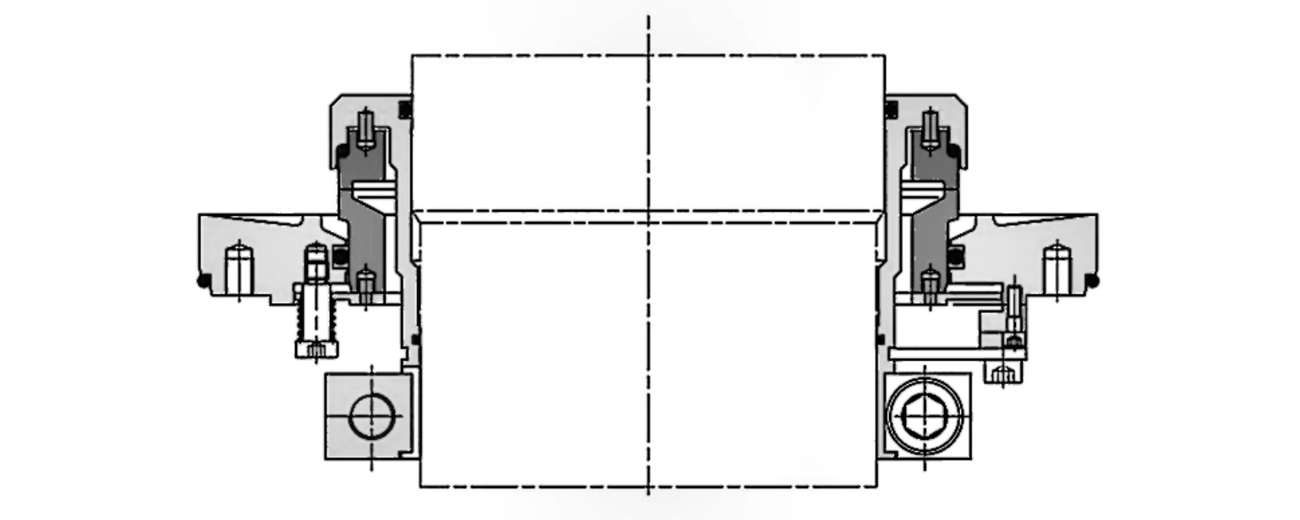

KSB — PT07-5

Engineered for KSB pumps handling main circulation duty in FGD towers at coal-burning power plants. Available sizes: 165mm and 205mm.

Split Seals

2 models · No-Disassembly Install

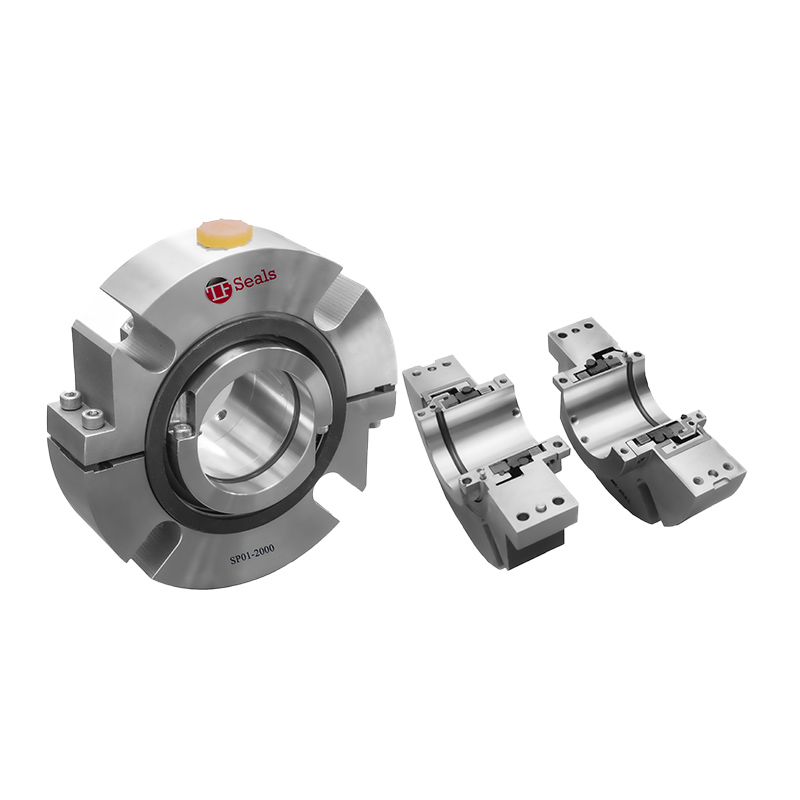

SP01 Series

Two-piece split seal delivering years of leak-free performance for shaft diameters 1.437"–9" (45mm–160mm). Splits into two halves for replacement without costly equipment disassembly, reducing downtime and labor cost. Certified to NSF/ANSI/CAN 61 for potable water contact.

Design Features

Installs in under 30 minutes, horizontal or vertical
Maintains seal integrity during system upsets
No equipment dismantling required

Best For

Moderate pressures, temperatures, shaft speeds
Uptime-critical rotating equipment

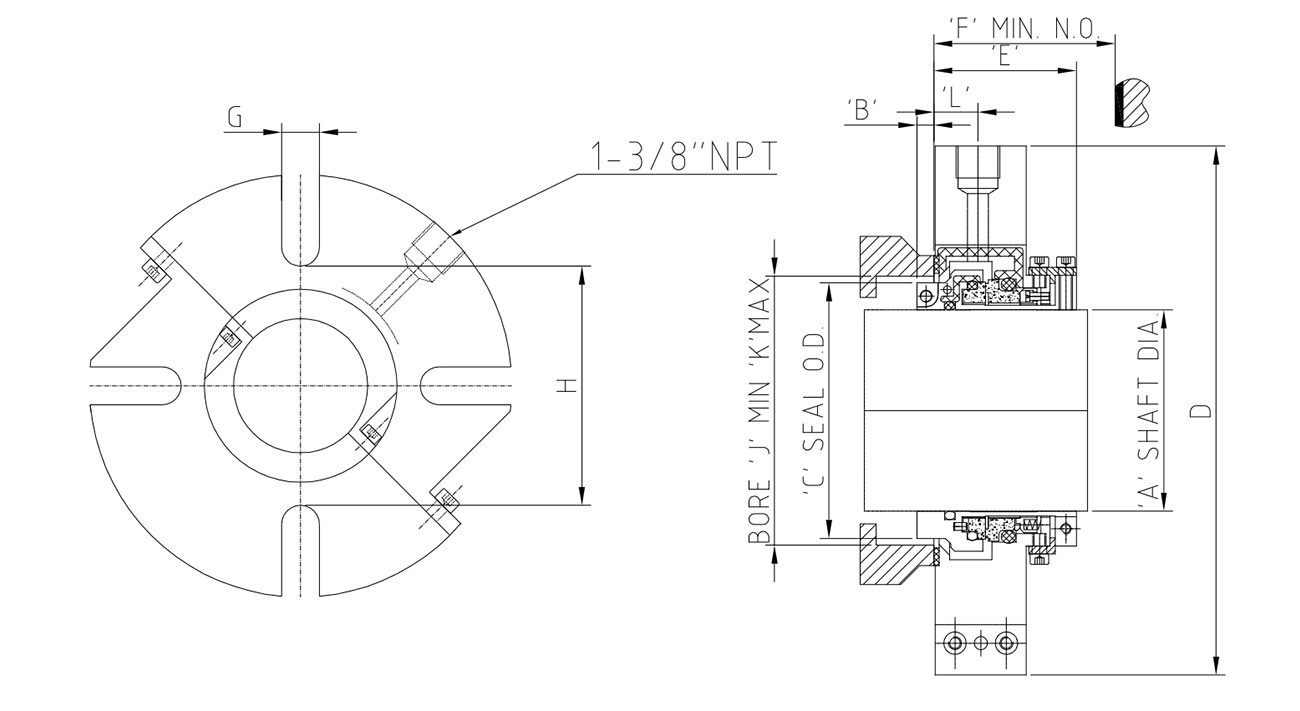

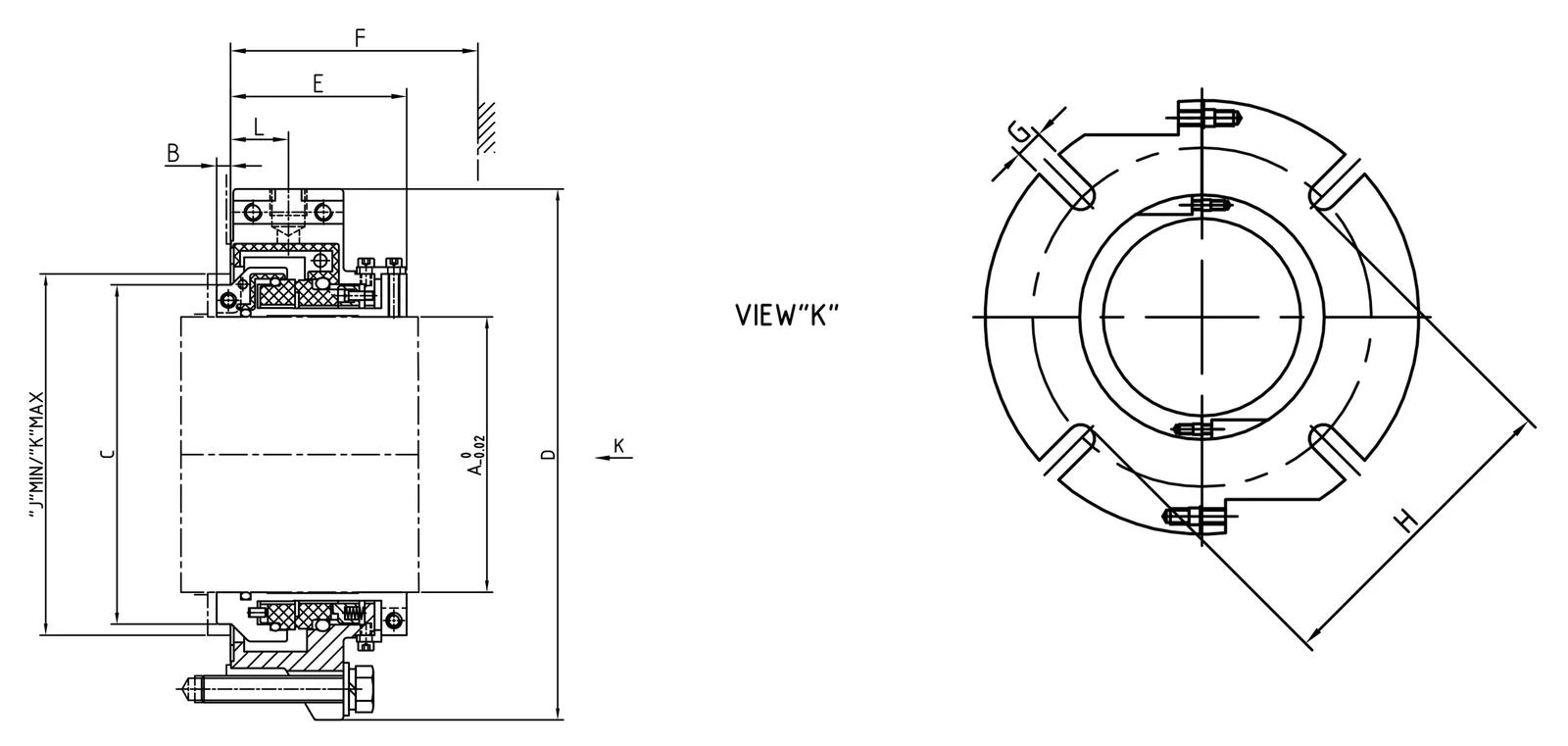

SP01 installation view cross-section — SP01 cross-section

SP01 Dimensions (in)

Size(in)	A	B	C	D	E	F	G	H	J	K	L
1.437	1.437	0.250	2.187	5.250	2.125	2.500	0.562	3.125	2.250	2.625	0.656
1.875	1.875	0.250	2.562	5.500	2.125	2.500	0.562	3.344	2.625	3.000	0.656
2.250	2.250	0.250	3.062	6.250	2.125	2.500	0.687	3.937	3.125	3.500	0.656
2.750	2.750	0.250	3.562	7.820	2.125	2.500	0.687	4.438	3.625	4.125	0.656
3.250	3.250	0.281	4.188	8.250	2.437	2.812	0.812	5.188	4.250	4.750	0.812
3.750	3.750	0.281	4.625	8.820	2.437	2.812	0.812	5.688	4.687	5.125	0.812
4.250	4.250	0.281	5.188	9.250	2.437	2.812	0.812	6.063	5.250	5.750	0.812
4.750	4.750	0.281	5.656	9.750	2.437	2.812	0.812	6.938	5.750	6.250	0.812
5.000	5.000	0.375	6.188	10.750	3.062	3.812	0.937	7.312	6.312	6.750	0.923
6.000	6.000	0.375	7.188	12.250	3.062	3.812	0.937	8.437	7.312	7.875	0.923
7.000	7.000	0.375	8.188	12.750	3.250	4.000	0.937	9.562	8.312	8.750	0.923
8.500	8.500	0.375	9.688	14.250	3.250	4.000	1.000	11.000	9.812	10.250	0.923
9.000	9.000	0.375	10.125	17.880	3.250	4.000	1.250	11.625	11.000	10.875	0.924

SP02 Series

The only patented true two-piece double split seal on the market — dual-seal protection without full equipment teardown.

Design Features

Double seal cartridge
Balanced design
Non-clogging with positive drive to stationary seal face
No need to dismantle any equipment, large or small

Specifications

Temperature: up to 121°C (250°F)
Pressure: 13.7 bar (200 psi)
Sliding velocity: 3,600 rpm to 62mm; 1,800 rpm 62–135mm; 900 rpm above 135mm

Slurry Seals

2 models · Abrasive Media

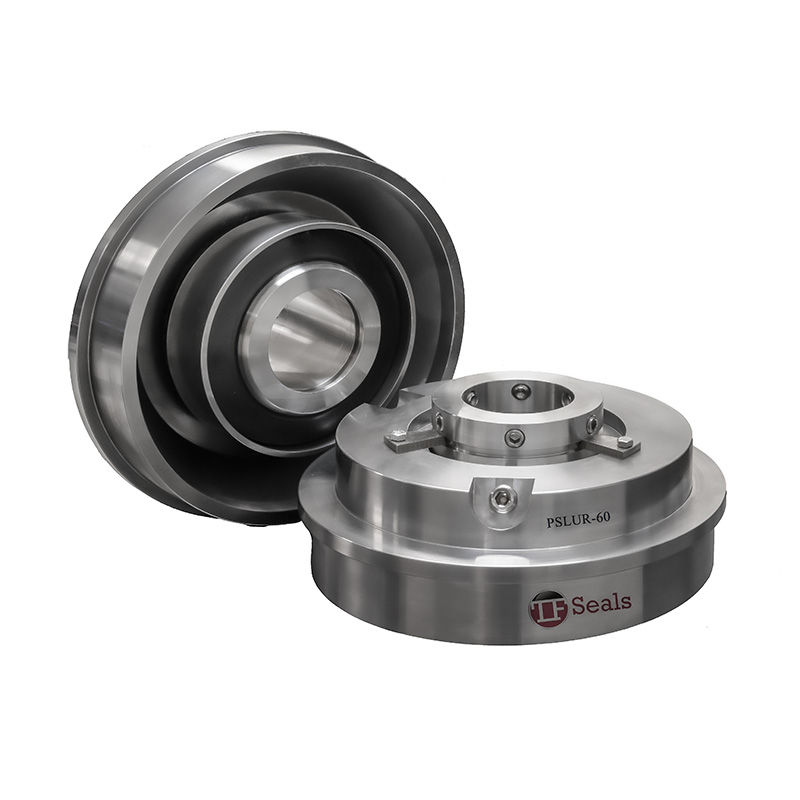

PSLUR Series

Cartridge seal for abrasive slurry applications, operable without a quench. Modular construction includes a cone spring that resists clogging and eliminates the dynamic O-ring, minimizing hang-up risk.

Design Features

Identical silicon or tungsten carbide seal faces
Alloyed stainless steel or high-chrome iron hardware
Optional quench for extended service life

Best For

Mining & minerals processing
Abrasive, corrosive wetted components

Materials of Construction

Faces: Silicon Carbide (std), Tungsten Carbide (opt)
Elastomers: Aflas®, EPR, Viton®
Metallurgy: 316SS, CD4MCu & other alloys

Operating Limits

Pressure: 300 psig (20.7 bar)
Temperature: up to 230°F (110°C)
Speed: up to 3,000 fpm (15 m/s)
Sizes: 1.375"–8.661" (35mm–220mm)

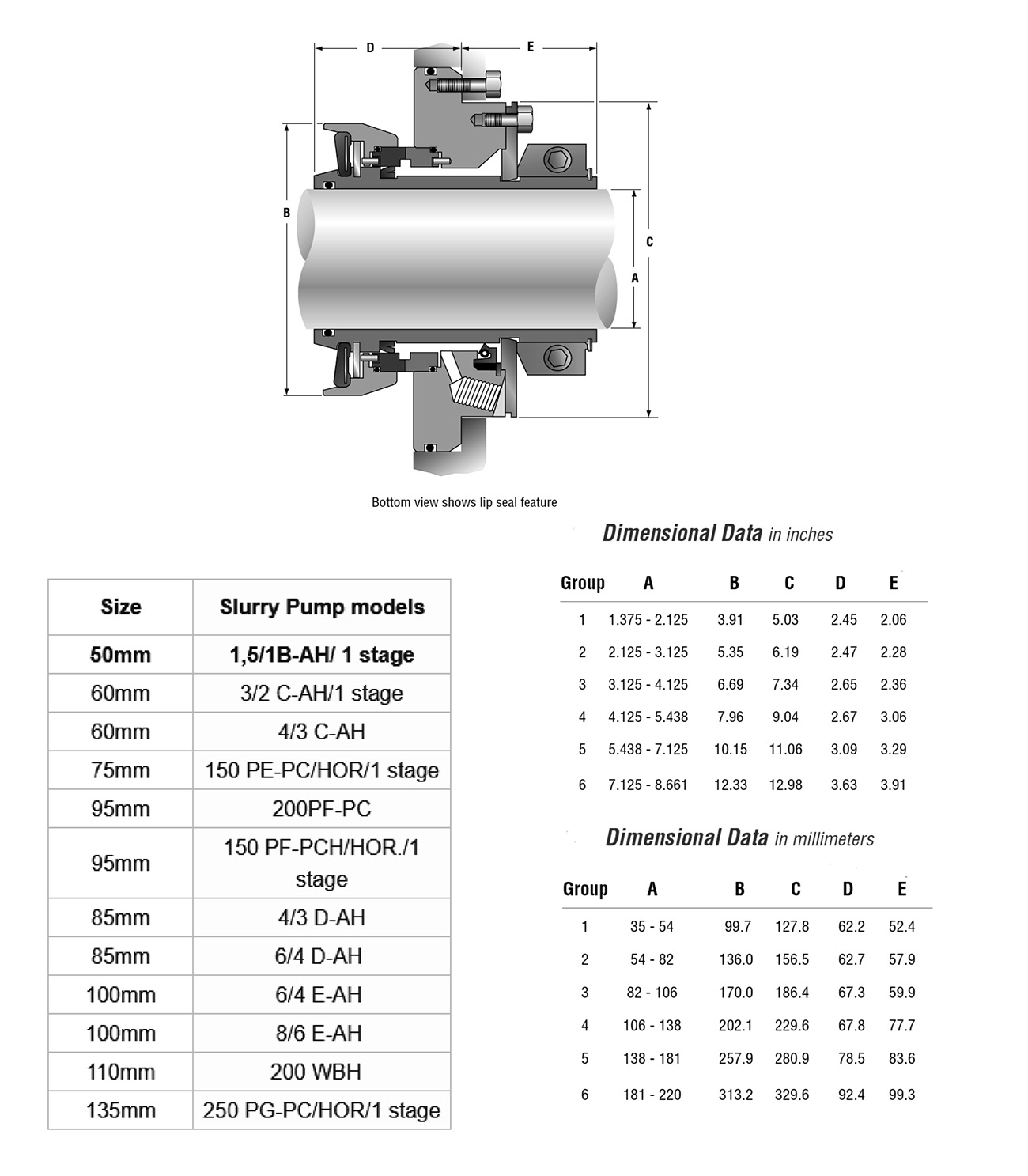

PSLUR installation view cross-section — PSLUR cross-section

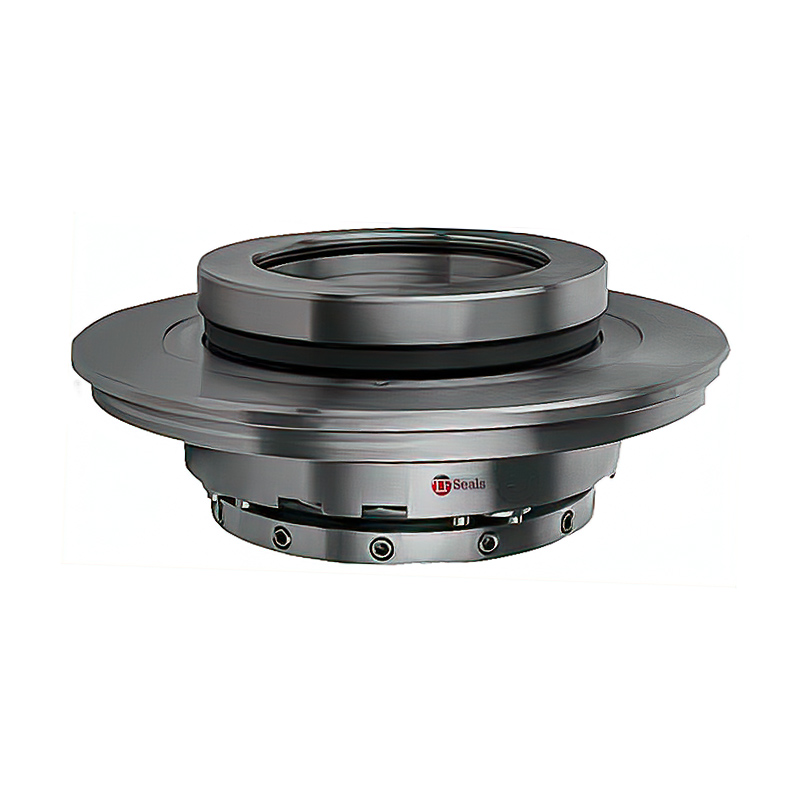

Warman — PT07-4

Engineered for Warman pumps handling main circulation duty in FGD towers at coal-burning power plants. Available sizes: 60mm to 220mm.

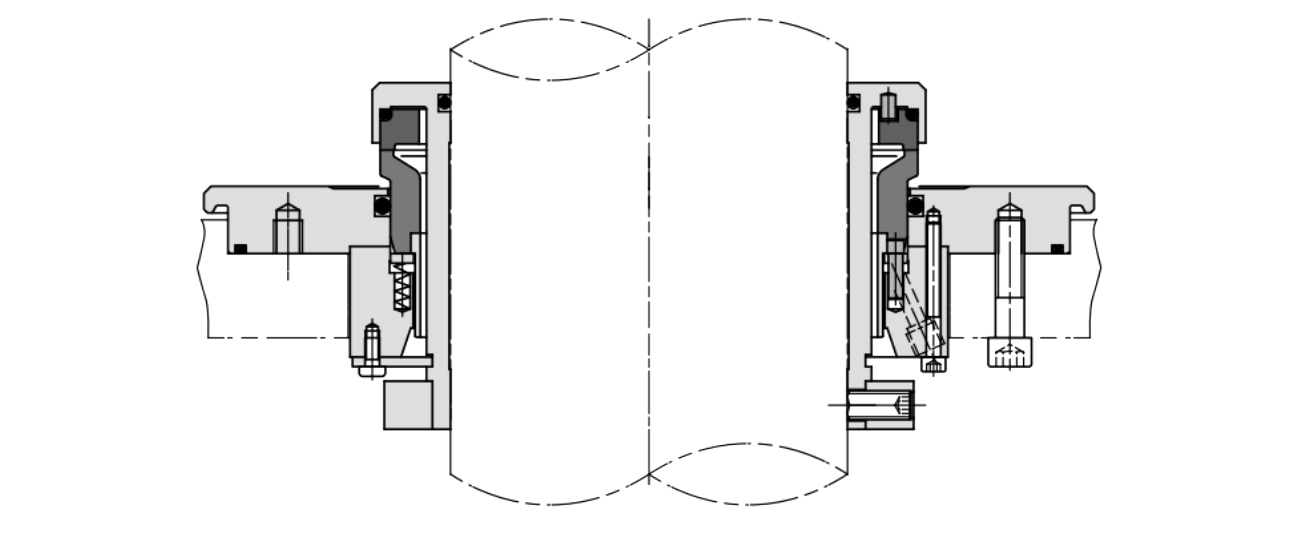

Warman installation view — Warman cross-section

OEM Replacement Seals

6 pump platforms

These lines are cross-engineered to fit OEM pump housings directly — contact sales for the exact part-number cross-reference for your equipment.

Flygt pump replacement mechanical seal components

Flygt® Pumps

Premium mechanical seals engineered for Flygt® pump applications.

Godwin pump replacement mechanical seal components

Godwin® Pumps

Premium mechanical seals engineered for Godwin® pump applications.

Self-priming pump mechanical seal product photo

Self-Priming Pumps (TF PS10)

For Pinnacle-Flo Mad Dog self-priming and GR® T / Super T pump applications.

Grundfos CR Multistage pump mechanical seal product photo

Grundfos® CR Multistage (TF PS10)

Premium mechanical seals engineered for Grundfos® CR multistage pump applications.

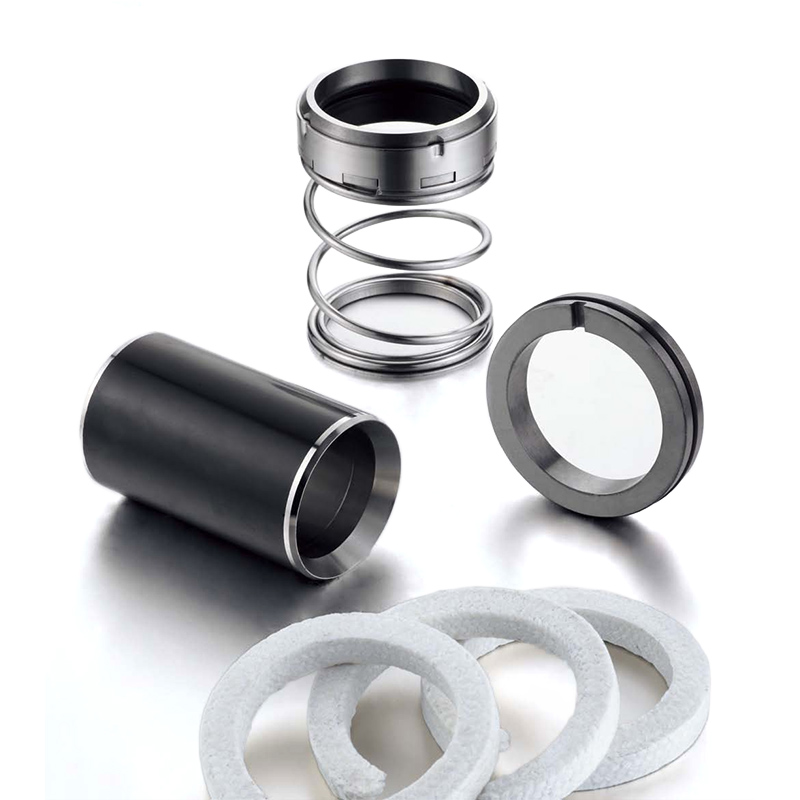

NOV® Pumps (TF PB02)

Premium mechanical seals engineered for NOV® Mission Magnum and XP pump applications, built on the TF PB02 platform.

Pioneer Pump® Vacuum-Assisted Prime

Premium mechanical seals engineered for Pioneer Pump® vacuum-assisted prime applications.

Disclaimer: TF Seals Manufacturing & Supplies, LLC is not affiliated with, endorsed by, or in any way associated with the OEM brands referenced above; brand references are for identification purposes only.

Advanced Seal Face Technology

TF REAL DIAMOND — CVD Coating

Diamond Coated Seals & Bearings (TF REAL DIAMOND)

Diamond is forever. TF REAL DIAMOND is applied to mechanical seal faces through Chemical Vapor Deposition (CVD) technology, offering exceptional protection for rotating surfaces. With unmatched hardness, exceptional resistance to chemical attack, and ultra-low friction, this coating significantly reduces wear and extends seal life. Diamond is coated directly onto existing silicon carbide seal rings and bearings — no design change is needed. Simply replace the uncoated components with diamond-coated ones.

Advantages

Largest known electrochemical potential window of all electrode materials
Low background, excellent chemical inertness
Reduced fouling compared to other electrode materials
Withstands extreme potentials, corrosive and high temperature/pressure environments

Applications

Petrochemical industry
Mining industry / slurry applications
Pharmaceutical & chemical industry
Power plant technology & special applications

Coating Properties — NCD vs. MCD

Property	NCD (As Grown)	NCD (Polished)	MCD (Polished)
Diameter	Up to 350mm	Up to 150mm	Up to 150mm
Coating Thickness	≥5μm	≥10μm	≥15μm
Vickers Hardness	≥8000 HV	≥8000 HV	≈10000 HV
Flatness	≤1μm	≤1μm	≤1μm
Special Features	Ultra low friction	Ultra low friction	High temp/pressure & dry running

NCD = Nanocrystalline Diamond · MCD = Microcrystalline Diamond

Seal Support Systems

5 systems · Flowmeter / ANSI Lite / Plan 52-53A / Heliflow

TF SF300 Single Flowmeter

Accurately controls and displays the flow rate of seal or packing flush fluid, with the ability to control both flow rate and pressure.

Specifications

Flow rate: 2–50 GPH (0.1–3 L/min)
Max temperature: 212°F (100°C)
Max pressure: 160 psig (11 barg)

Materials

Flowmeter tubes: Polysulfone (PSU)
Body: Polyoxymethylene (POM)
Valves, fittings, bracket: 316SS

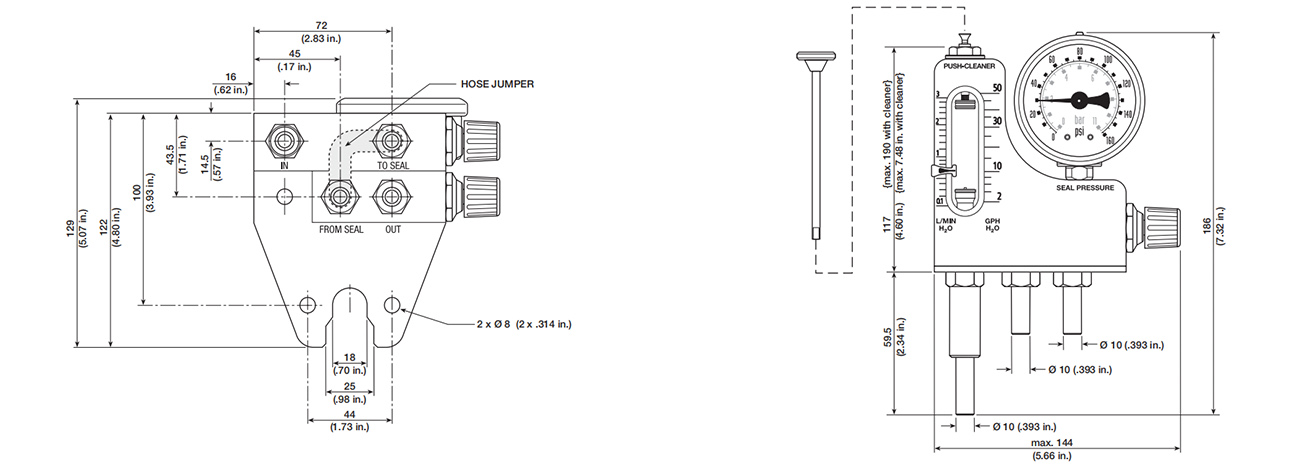

SF300 dimension drawing — Flow meter dimensions

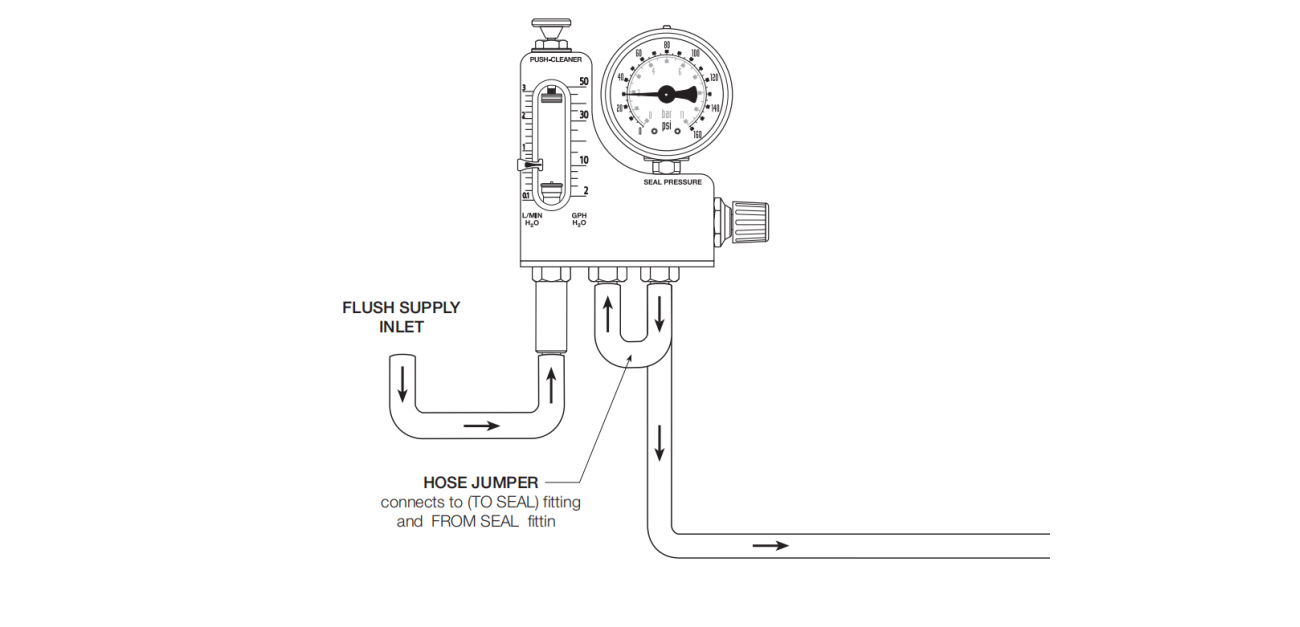

SF300 connection to seal — Connection to seal

TF TFDF Dual Flowmeter with twin flow tubes and seal pressure gauge

TF Dual Flowmeter

Dual-channel flowmeter (TFDF) for monitoring flush fluid across two independent seal support circuits, with inlet and outlet seal pressure connections on a single manifold.

Features

Twin flow tubes — independent monitoring of two circuits
Seal pressure gauge with isolation valves both sides
Flow scale: 0.1–2 GPM / 1–8 LPM (H₂O)
Integral cleaner rods for in-service tube cleaning

Connections

IN / FROM SEAL and IN / TO SEAL hose barb ports
Single-body manifold construction

TF ANSI Lite Support System

TFV-ANSI series, designed for general-service tandem or dual seal applications at lower temperatures and pressures — supports liquid buffer/barrier fluid circulation to the seal chamber.

Features

304 stainless steel construction
6" body, flat bottom and top
Tubular or flat armor level gauge
Liquid-filled pressure gauge

System

Orifice union
Ball valves on vent and drain
Closed-loop inboard seal monitoring

TF Plan 52/53A

TFV-52 series barrier fluid reservoir providing reliable buffer and barrier fluid supply for double and tandem mechanical seals. Flat ends and sight-glasses enable precise level monitoring, with or without an integrated cooling coil.

Key Features

Modular — compatible with system accessories
Sight-glass level monitoring
Optional cooling coil
API 682 / ISO 21049 compliant (Plan 52 & 53A)

System Integration

Level switches, circulation pumps
Hand refill pumps, thermometers
Standard mounting brackets/base frames

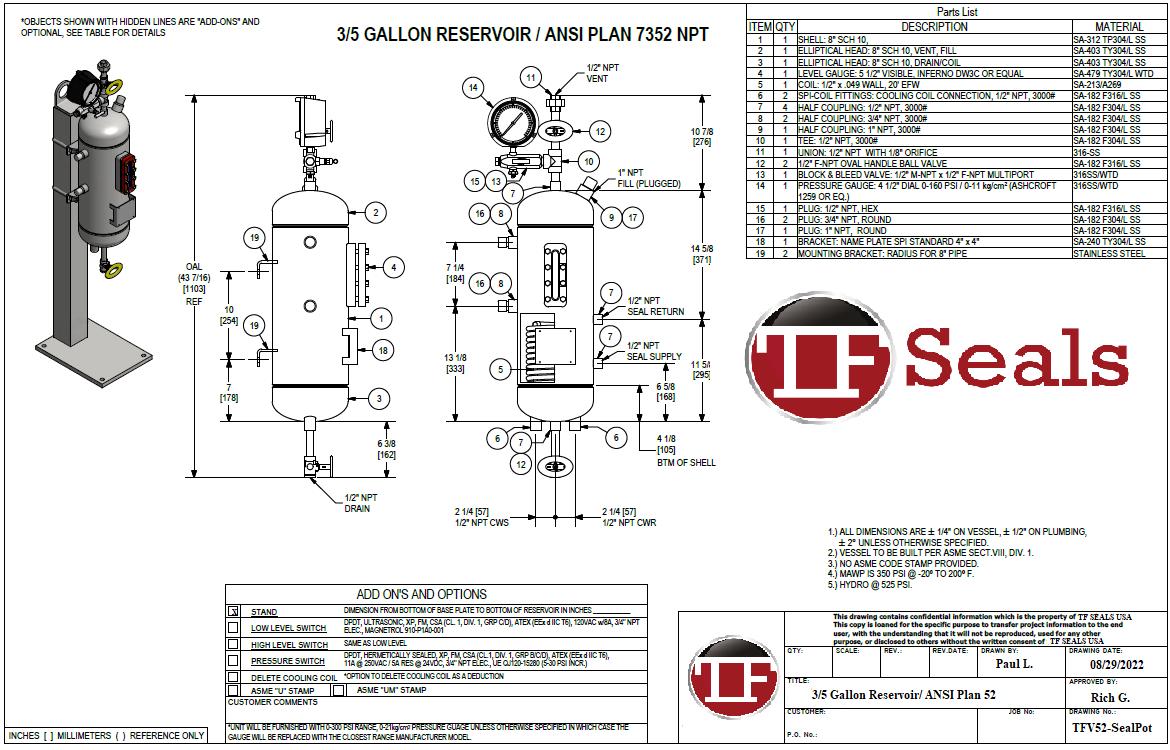

Plan 52/53A installation drawing 1 — Install / GA drawing

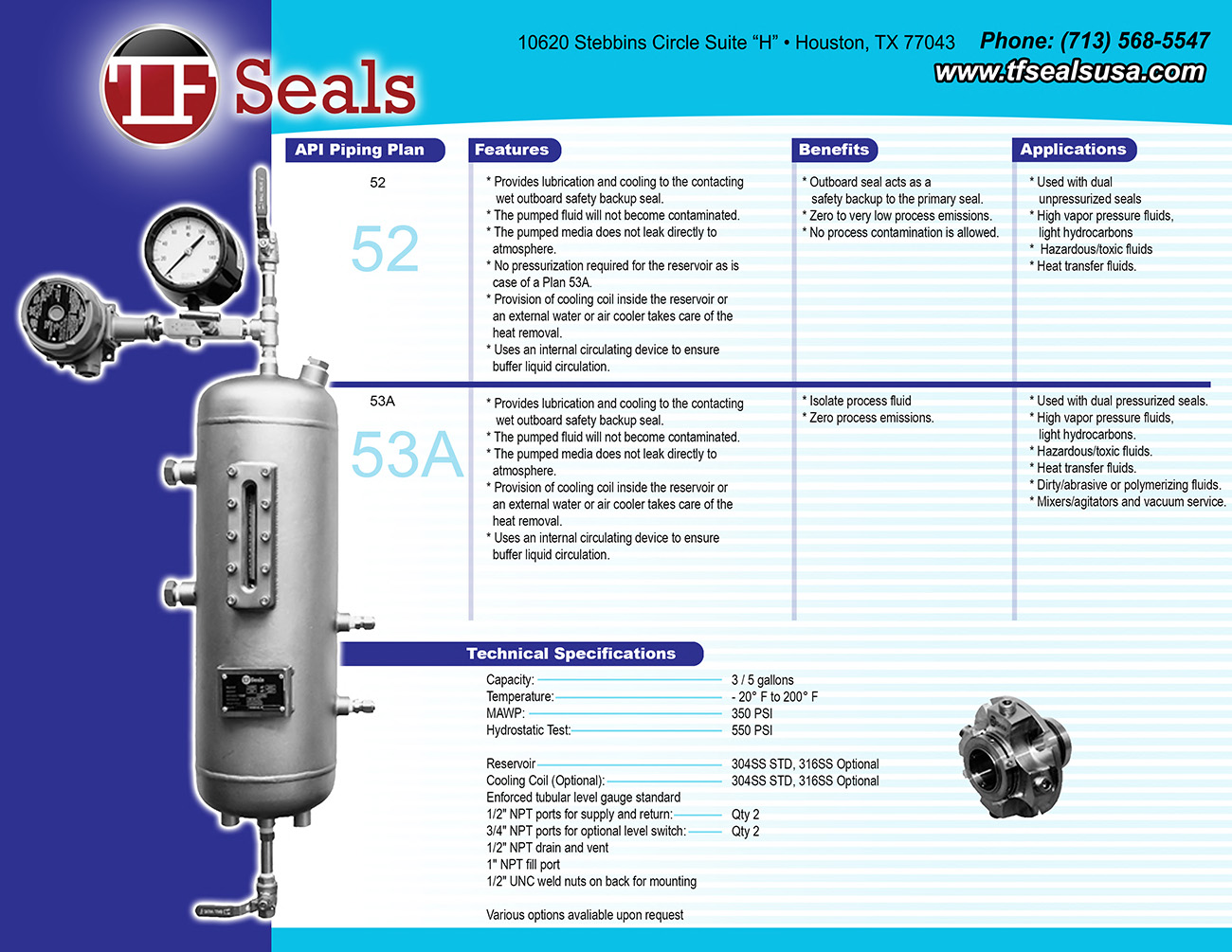

Plan 52/53A installation drawing 2 — Reservoir detail

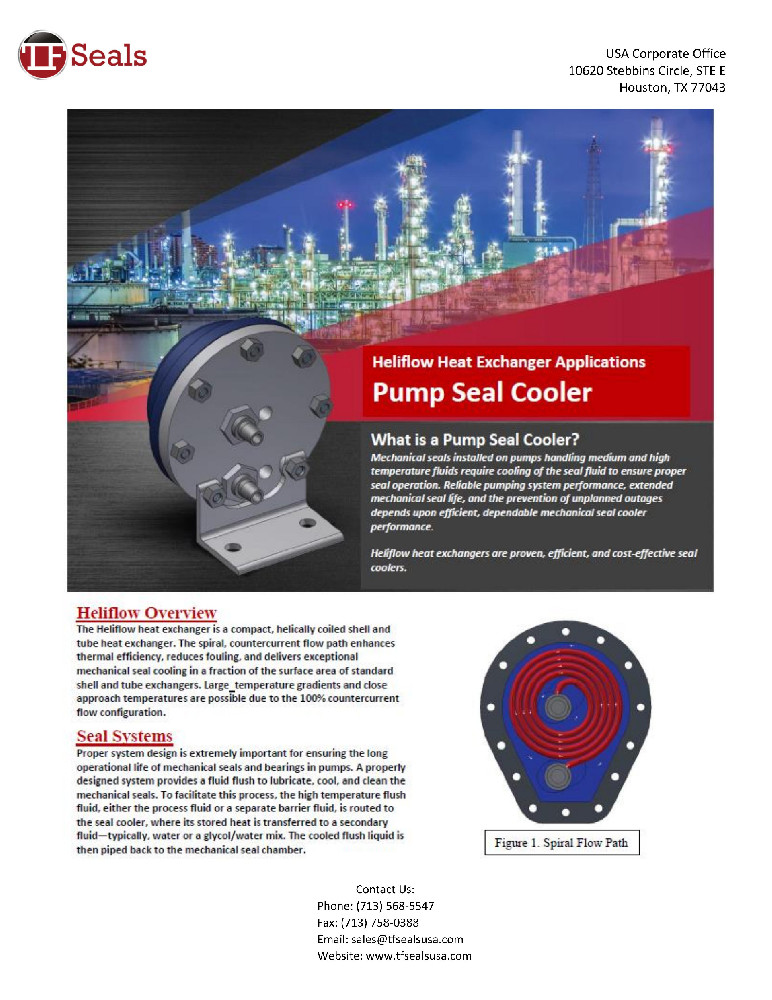

TF Heliflow Heat Exchanger

A highly efficient shell-and-tube heat exchanger for seal support loops. Parallel tubes run from an inlet manifold to an outlet manifold, wound into a helical coil — the spiral flow path maximizes heat transfer efficiency versus traditional straight-tube exchangers.

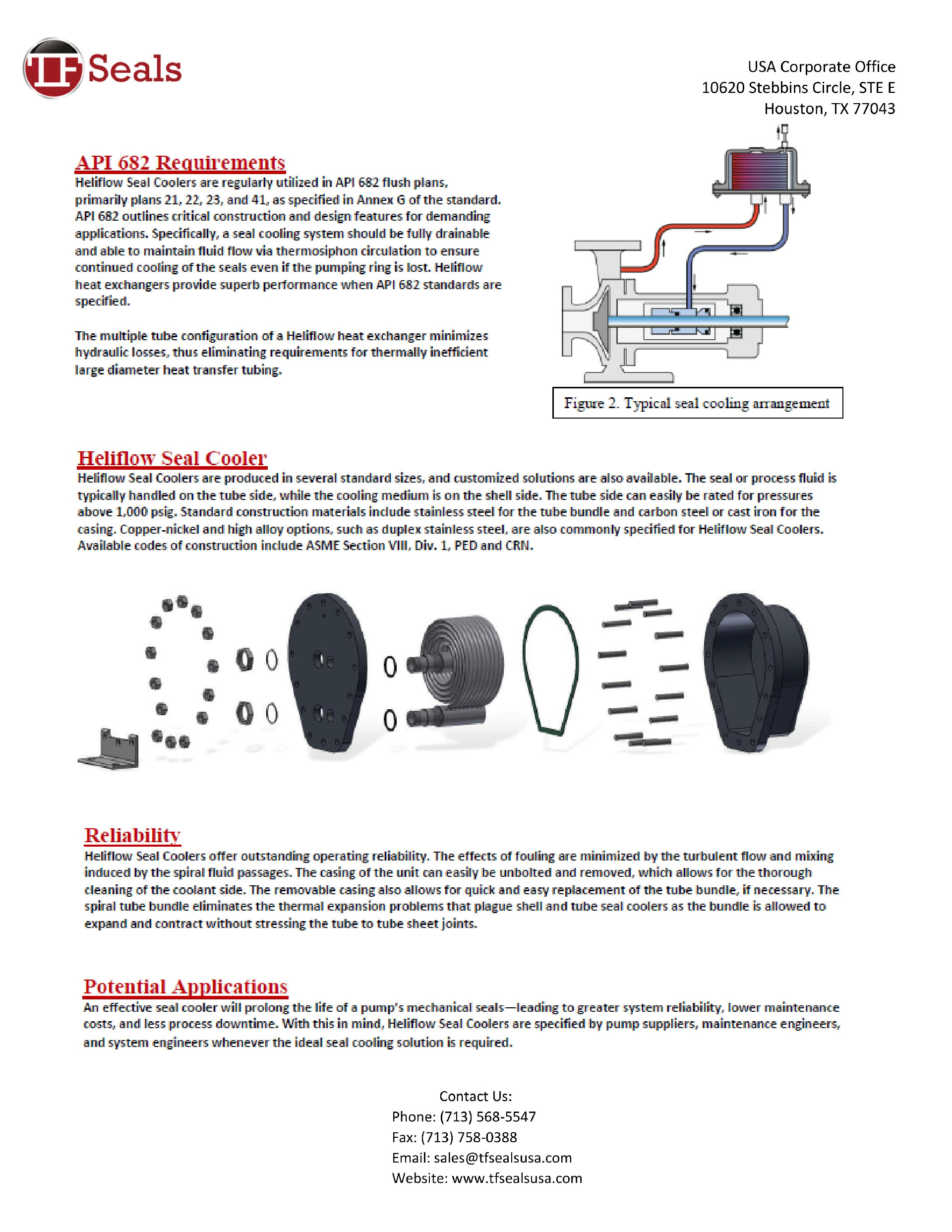

Heliflow heat exchanger detail — Heliflow detail view

Packing & Gaskets

17 products · Sheet Gasket / PTFE / Graphite / Aramid Packing

Gasket Sheet

TF-S280

Sheet gasket made from 100% expanded PTFE with multidirectional strength, developed for the cut-gasketing process — chemically inert to all common process media except fluorine, and compressible enough to fill wide or imperfect flange gaps.

Features

Excellent tightness and full chemical resistance; fills wide flange gaps
Easy to install; cuts, punches and plots to shape from sheet
Withstands high loads with very low cold-flow tendency
Excellent recovery, suited to changing and cycling loads
Suitable for high-temperature service

Specifications

Density: 0.8 g/cm³ (ASTM D792)
Tensile strength: >15 MPa (ASTM F152)
Compressibility: >45% · Recovery: >10% (ASTM F36)
Sealability, nitrogen: 0.17 mℓ/hr (ASTM F37B)
Creep relaxation: <60% (ASTM F38)
Sheet size: 1500×1500mm (59″ × 59″)
Thickness: 0.5mm up to 10mm

Typical applications: alkaline, metallic and organic chemical compounds, chemicals and solvents except fluorine, under high temperature and pressure — plus oil and gas, food and pharmaceutical service where fluid contamination must be avoided. Also specified for semiconductor fab chemical piping, data centre chilled water plants and standby generator fuel systems. See also TF-S231 ePTFE joint sealant tape for the tape form of the same material.

TF-S313

Non-asbestos jointing sheet (gasket), hot calendar–processed using high-quality aramid fiber and synthetic rubber (NR/NBR binder) — suited to chemical, power plant, and automotive applications.

Typical Physical Properties

Color: Green
Fibers: Aramid fiber; Binder: NR/NBR
Good resistance to water, gas, and steam
PH range: 4–11

Specifications

Pressure: 7.0 MPa max
Temperature: -50°C to 450°C
Thickness: 0.5–8.0mm

TF-S313 Technical Data

Description	Unit	Value
Density	g/cm³	1.9
Tensile Strength	MPa	12.5 min
Weight Loss	%	38 max
Compressibility	%	7–17
Recovery	%	40 min

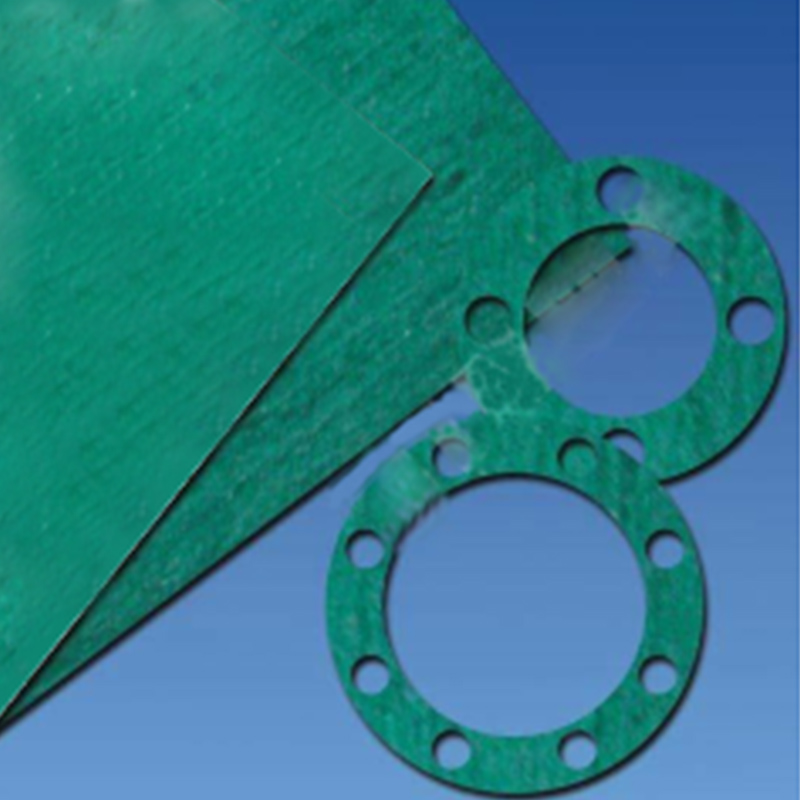

TF-S315

Hot calendar–processed sheet with oil-resistant synthetic rubber — superior oil service compared to the standard TF-S313.

TF-S317

Molded PTFE sheet, manufactured by molding process with PTFE granular resin and sintering — suitable for seals, linings, diaphragms, scraper guides, and bearing pads for bridges.

Features

Anti-corrosion in all kinds of chemicals, including nitric acid & aqua fortis
Good dielectric properties in mediums
Non-aging
Usable across a wide strength range

Specifications

Length × Width: 150×150mm – 2000×2000mm, or as required
Thickness: 3–100mm
Temperature: -180°C to 260°C
Stretch strength: >15 MPa
Break elongation rate: 200%
Virgin and recycled materials available

Suitable for corrosion-resistant liners, seals, linings and gaskets, scrap, and guide rails.

Compression Packing

TF-P204 — Acrylic PTFE Packing

Braided from high-strength acrylic fiber, PTFE-impregnated twice for excellent sealing, lubricating, and resistance to chemicals. Available with or without oil; the high-elastic red silicone rubber core absorbs vibration.

Typical Applications

Wide variety of uses throughout a plant
Pumps and valves — handles most chemicals except strong acid, strong alkali, and strong oxidizers

Prime Features

Suited to medium temperature, high pressure, high speed conditions
Excellent sealing, lubricating, and chemical resistance properties

TF-P204 Technical Data

Description	Value
Material	Acrylic fiber and PTFE
Temperature Range	-50°C to +260°C
Pressure — Rotating	20 bar
Pressure — Reciprocating	80 bar
Pressure — Static	100 bar
Shaft Speed	20 m/s
pH	1–13
Density	1.3 g/cm³

TF-P211 — Pure PTFE Packing

Braided of pure PTFE yarn without any lubrication. Designed for valves and lower shaft speed applications under medial pressure in food processing, pharmaceuticals, paper mills, and fiber plants where high purity and corrosion resistance is required.

Typical Applications

Rotary and reciprocating plant in food processing, pharmaceutical, special chemicals, and pulp & paper sectors
Particularly recommended for sugar and chocolate processing, and fine paper production

Prime Features

Clean, non-contaminating, and graphite free
Long maintenance-free service life
Minimal shaft wear and leakage
Superior performance

TF-P211 Technical Data

Description	Value
Material	Pure PTFE yarn
Temperature Range	-150°C to +260°C
Pressure — Rotating	15 bar
Pressure — Reciprocating	100 bar
Pressure — Static	150 bar
Shaft Speed	2 m/s
pH	0–14
Density	1.4 g/cm³

TF-P214 — Graphite PTFE Packing

A specially engineered yarn combining graphite and PTFE — both excellent sealing materials in their own right — giving GPTFE packing sealing properties other products cannot offer.

Typical Applications

Pumps, valves, reciprocating and rotating shafts, mixers, and agitators
Safe in all chemical pump applications except molten alkali materials, fluoride, fuming nitric acid, and other strong oxidizing agents
Resists water, steam, petroleum derivatives, vegetable oil, and solvents

Prime Features

Tough and durable
Self-lubricant, heat and chemical resistant

TF-P214 Technical Data

Description	Value
Material	100% pure graphite PTFE yarn
Temperature Range	-50°C to +280°C
Pressure — Rotating	25 bar
Pressure — Reciprocating	100 bar
Pressure — Static	200 bar
Shaft Speed	20 m/s
pH	0–14
Density	1.3 g/cm³

TF-P216 — PTFE Packing with Aramid Fiber Corner

A multi-yarn packing with corners made of aramid fiber yarns; the friction faces are made of PTFE yarns, impregnated with PTFE. Can be lubricated with silicone oil.

Typical Applications

Universal packing for pumps across all types of industry
Chemical, petrochemical, pharmaceutical, food, sugar, pulp, and paper industries
Power stations

TF-P217 — Graphite PTFE Packing with Aramid Fiber Corner

A multi-yarn packing with corners made of aramid fiber yarns; the friction faces are made of graphite PTFE yarns, impregnated with PTFE. Can be lubricated with silicone oil.

Typical Applications

Universal packing for pumps across all types of industry
Chemical, petrochemical, pharmaceutical, food, sugar, pulp, and paper industries
Power stations

Prime Features

Enhances the lubrication ability of aramid fiber and improves the strength of PTFE
No staining in pulp and paper mill, pharmaceutical, food, and sugar industries

TF-P217 Technical Data

Description	Value
Material	Aramid fiber and graphite PTFE
Temperature Range	-150°C to +280°C
Pressure — Rotating	25 bar
Pressure — Reciprocating	150 bar
Pressure — Static	200 bar
Shaft Speed	25 m/s
pH	2–12
Density	1.5 g/cm³

TF-P218 — Aramid Fiber

Braided from high-quality DuPont aramid fiber with PTFE impregnated and lubricant additive. Shows good chemical resistance, high elasticity, and very low cold flow; resists severe media and higher pressure. Lubricated with silicone-based compound for quick and easy break-in.

Typical Applications

Universal packing for pumps across all types of industry
Chemical, petrochemical, pharmaceutical, food, sugar, pulp, and paper industries
Durable packing able to withstand granular and abrasive applications

Prime Features

Wear resistant — may damage the shaft if not used properly; minimum shaft hardness of 60 HRC recommended
Superior performance and lower frictional factor

TF-P218 Technical Data

Description	Value
Material	Aramid fiber, PTFE
Temperature Range	-100°C to +280°C
Pressure — Rotating	25 bar
Pressure — Reciprocating	150 bar
Pressure — Static	250 bar
Shaft Speed	25 m/s
pH	2–12
Density	1.4 g/cm³

TF-P221 — Flexible Graphite Braided

A flexible braided packing made of an innovative expanded pure graphite yarn. Combined with the excellent sealing capabilities of expanded pure graphite, TF-P221 is an effective sealing component for hot water, high-temperature and pressure steam, heat transfer fluid, hydrogen gas, ammonia, organic solvents, hydrocarbons, cryogenic liquids, and more — except a few strong oxidizers. It is a unique, universal sealing packing.

TF-P221 Technical Data

Description	Value
Pressure — Rotating	3 MPa
Pressure — Reciprocating	10 MPa
Pressure — Valves	20 MPa
Shaft Speed	0–10 m/s
Sulfur Content	<1000 ppm
Chlorine Content	<60 ppm
Temperature Range	-250°C to +650°C
pH Range	0–14

TF-P236 Graphite PTFE and PTFE Mixed Packing ring product photo

TF-P236 — Graphite PTFE/PTFE Mixed

A multi-yarn packing with corners made of aramid fiber yarns, impregnated with PTFE. Friction faces are made of graphite PTFE and PTFE yarns. Can be lubricated with silicone oil.

Typical Applications

Universal packing for pumps across all types of industry
Chemical, petrochemical, pharmaceutical, food, sugar, pulp, and paper industries

Prime Features

Enhances the lubrication ability of aramid fiber and improves the strength of PTFE
No staining in pulp and paper mill, pharmaceutical, food, and sugar industries

TF-P236 Technical Data

Description	Value
Material	Aramid fiber, graphite PTFE and PTFE yarn
Temperature Range	-150°C to +280°C
Pressure — Rotating	25 bar
Pressure — Reciprocating	150 bar
Pressure — Static	200 bar
Shaft Speed	25 m/s
pH	2–12
Density	1.5 g/cm³

TF-P241 Graphite PTFE Packing with Nomex ring product photo

TF-P241 — Graphite PTFE w/ Nomex®

An advanced general service packing for most industries, incorporating expanded TFE/graphite as the primary sealing yarn with two diagonally braided anti-extrusion corners of meta-aramid yarn. Services include acids, bases, gases, oils, black, green, red, and white pulping liquors, and other water-based fluids. Not suitable for strong oxidizers, free halides, and molten alkali metals.

Applications

Reciprocating and rotating pumps, agitators, blenders, mixers, washers, wicket gate, and rising/rotating stem valves
Especially effective in refiners, digesters, and hydropulpers within paper mills
Recommended for waste water, dredge, and sewage applications, as well as hydroelectric facilities

TF-P241 Technical Data

Description	Value
Material	Nomex fiber and graphite PTFE
Temperature Range	-200°C to +260°C
Pressure — Rotating	30 bar
Pressure — Reciprocating	200 bar
Pressure — Static	300 bar
Shaft Speed	20 m/s
pH	1–13
Density	1.5 g/cm³

TF-P242 — PTFE w/ Synthetic Fiber Corners

Braided from synthetic fiber and PTFE fiber, combining the advantages of both — good strength and lubricity.

Typical Applications

Suited where graphite impregnation is not acceptable, or for abrasive media where contamination is not permitted
Chemical plants and pulp & paper mills
Rotating and reciprocating pumps, washer journals, liquor pumps, refiners, etc.

Prime Features

Clean packing
Suited to higher-pressure conditions than pure PTFE packings

TF-P242 Technical Data

Description	Value
Material	Synthetic fiber and PTFE fiber
Temperature Range	-200°C to +260°C
Pressure — Rotating	20 bar
Pressure — Reciprocating	100 bar
Pressure — Static	200 bar
Shaft Speed	20 m/s
pH	1–13
Density	1.5 g/cm³

TF-P300 — Kynol Fiber

Braided from high-performance Kynol (Novilid or Phenolic) fiber impregnated with PTFE lubricant — good mechanical properties combining softness and strength. Also known as “Golden Packing.”

Typical Applications

High-performance packing well suited to applications where graphite impregnation may not be acceptable
Suitable for abrasive media, and where contamination is not permitted
Chemical plants and pulp & paper mills; rotating and reciprocating pumps, washer journals, liquor pumps, refiners

Prime Features

High dimensional stability and superior pressure resistance, even at elevated temperature
Good process-ability, easy to cut and fit
Thermal stability, low heat expansion
Outstanding chemical resistance, particularly in acidic media
Excellent resistance to organic solvents, oil, and fuels

TF-P300 Technical Data

Description	Value
Material	Kynol fiber and PTFE
Temperature Range	-200°C to +280°C
Pressure — Rotating	20 bar
Pressure — Reciprocating	100 bar
Pressure — Static	200 bar
Shaft Speed	20 m/s in rotary
pH	1–13
Density	1.5 g/cm³

TF-P320 Ramie Packing with Graphite PTFE and Oil coil product photo

TF-P320 — Ramie w/ G-PTFE & Oil

Highest-quality ramie fiber impregnated with light-colored, special graphite PTFE and inert lubricant during square plaiting operation. Not harsh on shafts and stems.

Typical Applications

Pumps, refiners, filters, and valves in the brewing and beverage industry, shipbuilding, and other fields
Especially resistant to abrasive media in the paper industry

Prime Features

Low maintenance, easy to control
Not harsh on shafts and stems

TF-P320 Technical Data

Description	Value
Material	Ramie fiber, graphite PTFE, and oil
Temperature Range	-50°C to +130°C
Pressure — Rotating	20 bar
Pressure — Reciprocating	30 bar
Pressure — Static	50 bar
Shaft Speed	10 m/s
pH	3–12
Density	1.25 g/cm³

TF-P330 Ramie Packing with PTFE and Oil coil product photo

TF-P330 — Ramie w/ PTFE & Oil

Highest-quality ramie fiber impregnated with light-colored, special PTFE and inert lubricant during square plaiting operation. Not harsh on shafts and stems.

Typical Applications

Pumps, refiners, filters, and valves in the brewing and beverage industry, shipbuilding, and other fields
Especially resistant to abrasive media in the paper industry

Prime Features

Low maintenance, easy to control
Not harsh on shafts and stems

TF-P330 Technical Data

Description	Value
Material	Ramie fiber, PTFE, and oil
Temperature Range	-50°C to +130°C
Pressure — Rotating	20 bar
Pressure — Reciprocating	30 bar
Pressure — Static	50 bar
Shaft Speed	10 m/s
pH	3–12
Density	1.25 g/cm³

TF-S231 Expanded PTFE Joint Sealant Tape spools product photo

TF-S231 — EPTFE Joint Sealant Tape

An inorganic sealant for static applications made of 100% PTFE. A unique process converts PTFE to a micro-porous fibrous structure, resulting in a sealant with an unsurpassed combination of mechanical and chemical properties. Supplied with a self-adhesive strip for easy fitting.

Typical Applications

Specially suited for sealing flange connections, pipe systems, hydraulic and pneumatic systems, etc.

Prime Features

Saves money and time — no scrap or waste, costs less than other gasket material
Minimal installation time — no templates, precutting, or special fitting required

TF-S231 Specification

Description	Value
Media	Acids, alkalis, solvents, gases, etc.
Temperature Range	-240°C to +260°C
Pressure	100 bar
pH	0–14
Density (Grade A/B)	0.70/0.80 g/cm³ (other densities on request)

Mechanical seals, built to standard — or built to spec.

NOV® Pump Mechanical Seals

SP01 Series

PZ48 / PZ48Q

PZ47 / PZ47Q

PZ05 / PZ05Q

PSLUR Series

NOV® Pump Mechanical Seals

SP01 Series

PZ48 / PZ48Q

PZ47 / PZ47Q

PZ05 / PZ05Q

PSLUR Series

Our Product Catalog

Component Seals

Cartridge Seals

Metal Bellow Seals

Mixer / Vessel Seals

Split Seals

Slurry Seals

OEM Replacement Seals

Advanced Seal Face Technology

Seal Support Systems

Packing & Gaskets
